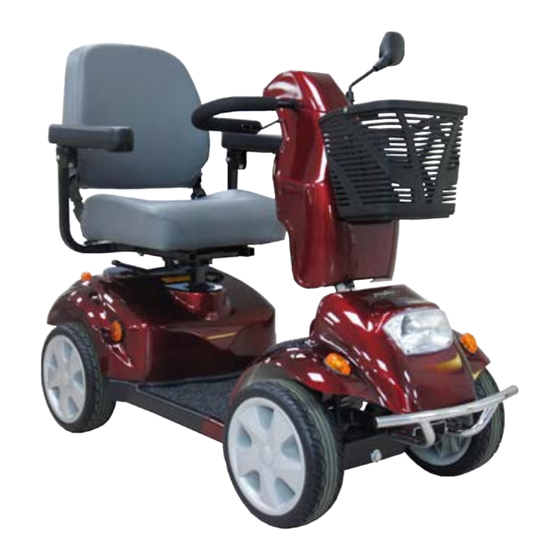

FR510-F
FR168-4S
USER'S INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR510-F and is the answer not in the manual?

Questions and answers

Related Manuals for FREERIDER FR510-F

Summary of Contents for FREERIDER FR510-F

  • Page 1 FR510-F FR168-4S USER'S INSTRUCTION MANUAL...
  • Page 2 These actions can cause personal injury and/or equipment damage. On the product, this icon is represented as a triangle with red border. Please fill out the following information for quick reference: Freerider Provider:_______________________________________________ Address:_______________________________________________________ Phone Number:_________________________________________________ Purchase Date:__________________ Serial Number:__________________ NOTE: This user's instruction manual is compiled from the latest specifications and product information available at the time of publication.

  • Page 3: Table Of Contents

    FOREWORD Please read and follow all instructions in this User's Instruction Manual before attempting to operate your scooter for the first time. If there is anything in this manual that you do not understand, or if you require additional assistance for setting it up, contact your Authorized Agent.

  • Page 4: Introduction

    INTRODUCTION Congratulations on purchase of your scooter. Please read this User's Instruction Manual carefully before your attempt to operate scooter. Your User's Instruction Manual will assist you to get the most from your machine. The scooter provides transportation for an elderly or disabled person. It can be used in a variety of indoor and outdoor settings.

  • Page 5: Purpose Of Your Scooter

    Do not drive your scooter if you are under the influence of alcohol, drugs or medication that may affect your ability. If you are in doubt, consult your doctor. FR510-F FR168-4S...

  • Page 6: Rules For Safe Use

    Weight Limitations: Your Scooter is rated for a maximum weight capacity of 350lbs for FR168-4S and 450lbs for FR510-F. Do not ride your scooter without reading this instruction manual. Also read all of the safety instructions and warnings at the start of this manual.
  • Page 7 12.Do not climb or descend Curbs that exceed the maximum dimension detailed under technical specification of this manual. Do not turn when negotiating curbs. 13.Always approach obstacles at low speed. 14.Always approach obstacles straight. 15.Always keep your feet on the vehicle when driving. 16.Always proceed carefully while riding, especially as you approach the downgrade of a ramp.
  • Page 8 ELECTROMAGNETIC AND RADIO FREQUENCY INTERFERENCE (EMI / RFI) Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones, mobile two-way radios, radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links, microwave signals, paging transmitters, and medium-range mobile transceivers used by emergency vehicles. In some cases, these waves can cause unintended movement or damage to the control system.

  • Page 9: Getting To Know Your Scooter

    GETTING TO KNOW YOUR SCOOTER FR510-F FR168-4S 1. Steering handlebars 7. Direction indicator lights 2. Driving mirror 8. Front and rear bumper 3. Console 9. Floor mat 4. Charging socket 10. PU solid tires 11. Rear lights and indicators 5. Basket 12.

  • Page 10: Comfort Adjustments

    COMFORT ADJUSTMENTS Before setting out on your scooter, you need to make sure that your seat is in the correct driving position. The seat has three basic adjustments to assist your comfort. 1. Mirror Assemble: 2. Seat Lock Lever: This allows the seat to swivel through 360 degrees. Pull up fully to release the seat allowing rotation.
  • Page 11 3. Armrest Width Adjustment: On each side at the rear of the seat you will find a large black knob. By simply loosening this knob you are able to slide the armrests in or out to whatever width you desire. Re-tighten the knobs fully. Warning: drive your Do not...
  • Page 12 6. Seat Slide: Located on the right front side of the seat. The lever allows you to adjust your seat forwards and backwards when sitting on the seat. Simply pull up the lever and move in the desired position backward by pushing or forward by hitching.

  • Page 13: Operating Your Scooter

    Your controls are located on the handlebar console: FR168-4S 1. Battery indicator meter 2. Lights switch 3. Speed adjustment dial 4. Hazard lights switch 5. Throttle control lever 6. Key switch 7. Turn signal switch FR510-F 8. Horn button 9. Status light...
  • Page 14 FR510-F Forward The left thumb lever moves the scooter in a reverse direction and controls the rate of speed by the pressure applied .

  • Page 15: Freewheeling Your Scooter

    FREEWHEELING YOUR SCOOTER If for reasons of convenience, or you require to push your scooter for a short distance, the drive system can be put into "freewheel mode". This will allow your scooter to roll freely. Freewheel Procedure: The freewheel device is a red lever located at the rear right hand side of your scooter. To freewheel your scooter first switch off the power switch located on the scooter’s control console.

  • Page 16: Safety Instructions & Warning

    SAFETY INSTRUCTIONS & WARNING ELECTROMAGNETIC AND RADIO FREQUENCY INTERFENCE (EMI / RFI) Electromagnetic and radio Frequency Interference can come from mobile phone, radio transmitters etc. In some cases, these waves can cause damage to control system. Your scooter has an immunity to EMI, the higher the immunity level, the greater the protection against EMI.
  • Page 17 Warning: Never drive down an incline at full speed. When climbing ！ an incline, try to keep your scooter moving, if you must stop, start up again slowly and then accelerate smoothly with caution. Avoid sudden stop starts, lean forward towards your handlebars to increase stability and prevent rearward tipping.

  • Page 18: Safety Warning & Instruction Labels

    SAFETY WARNING & INSTRUCTION LABELS The following labels are positioned on your scooter; they communicate important warnings or instructions regarding the safe operation of your scooter. Please familiarize yourself with their location. Logo MAIN CIRCUIT BREAKER PRESS TO RESET Yellow label located on the top of Located under the battery the rear cover In order to avoid the damage of the...

  • Page 19: Learning To Get About

    LEARNING TO GET ABOUT 1. Basic Driving: Make certain you are comfortably seated on your scooter and both armrests are down. Ensure that the "Speed Adjustment Dial" is turned to minimum for your first drive. When you have become more confident you can increase the setting to a higher speed.
  • Page 20 Scooter. They are an important part of your scooters design and reduce the likely hood of backward tipping. Always avoid where possible turning on slopes or FR510-F climbing curbstones. Always make certain that your scooter is in full working order and your batteries are fully charged before attempting to drive.

  • Page 21: Care & Maintenance

    CARE & MAINTENANCE Your scooter, like any other electro-mechanical machine, will benefit from regular servicing by your dealer. You too, can help keep your scooter in good condition by following a simple guide to home maintenance. Note: Only competent people should carry out service work. SEAT UPHOLSTERY A damp cloth and a little soapy water will keep your seat, backrest and arms looking smart.
  • Page 22 DRIVE TRANSMISSION LUBRICATION This unit is factory filled and will not normally need additional lubrication. Note: Your scooter transmission is filled with a special lubricant. Do not attempt to force grease into the transmission as this will contaminate the original lubrication and will invalidate your guarantee.

  • Page 23: Batteries & Battery Charging

    BATTERIES & BATTERY CHARGING 1.Battery Installation: Your scooter is equipped with two maintenance free 12 volt 50Ah batteries. The batteries are linked together by wiring cables to supply the electronic system with 24 volts of power. Warning: It is imperative that the two batteries are connected correctly ！...

  • Page 24: Basic Fault Finding

    BASIC FAULT FINDING If your scooter will not start: (1) Check that the power key switch is turned "on". If it is, the battery condition i n dicator meter will be operating. If the green status light on your console is flashing once per second, charge your batteries.
  • Page 25 2.Charging Circuit Fuse: One fuse protects your scooter charging circuit from receiving an overload of electrical current. The fuse used in the scooter is the same type which is found on automobiles. In the unlikely event that a fuse should "blow" and needs replacing. Use only a fuse of a 10 amp rating.
  • Page 26 3.Status Fault Codes: Flash Description Meaning The batteries are running low. Recharge the Battery Low batteries The batteries have run out of charge. Low Battery Fault Recharge the batteries. Check the battery and associated connections and wiring. Note: The low battery fault flash code, described above, is a requirement of various safety standards.

  • Page 27: Technical Specification

    TECHNICAL SPECIFICATION Model Number FR510-F Maximum Safe Slope 6 degrees Maximum Climbing Ability 6 degrees Maximum Obstacle Climbing Ability 3.35 inches (8.5 cm) Overall Length* 55.79 inches (141.7 cm) Overall Width* 24.96 inches (63.4 cm) at wheels Total Weight with Batteries 238.48 lbs.

  • Page 28: Model Number

    Model Number FR168-4S Maximum Safe Slope 6 degrees Maximum Climbing Ability 6 degrees Maximum Obstacle Climbing Ability 2.95 inches (7.5 cm) Overall Length* 52.13 inches (132.4 cm) Overall Width* 24.13 inches (61.3 cm) at wheels Total Weight with Batteries 214.94 lbs. (97.7 kg) Total Weight Without Batteries 146.74 lbs.
  • Page 29 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%). Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or - 3%). AGM or gel cell type required.
  • Page 30 FR510-F TURNING RADIUS 162.8cm [64.09”] 63.4cm [24.96”] MAX:118.5cm [46.65”] MIN:112.5cm [44.29”] 111.5cm [43.90”] MAX:73.2cm [28.82”] 8.7cm MIN:67.2cm 3.0cm [3.43”] [26.46”] [1.18”] 141.7cm [55.79”] Weight Capacity:450.00 lbs (204.5 kg) Maximum Climbing Ability:6...
  • Page 31 FR168-4S TURNING RADIUS 159.0cm [62.60”] 61.3cm [24.13”] MAX:112.5cm [44.29”] MIN:106.5cm [41.93”] 100.0cm [39.37”] MAX:67.0cm [26.38”] 6.6cm MIN:61.0cm 2.5cm [2.60”] [24.02”] [0.98”] 132.4cm [52.13”] Weight Capacity:350.00 lbs (158.8 kg) Maximum Climbing Ability:6...

  • Page 32: Classification

    Refer to the battery charging section of this manual. Tire Size: 1. FR510-F, Front & Rear 12.50 inches (31.8 cm), PU solid 2. FR168-4S, Front & Rear 10.00 inches (25.4 cm), PU solid Batteries: Lead Acid battery 50Ah Charger: AC input.100-240 volt, 50/60Hz,...

  • Page 33: Optional Accessories

    OPTIONAL ACCESSORIES For information regarding these optional accessories please contact your Authorized Agent. Combined Basket, Stick / Crutch Holder Combining the usefulness of the rear basket and the stick / crutch holder. Stick / Umbrella Holder Ideal way to carry walking aids. Oxygen Holder Conveniently fits over the seat back rest, designed to accept a standard mobile N.H.S.

  • Page 34: Guarantee Terms

    G UARAN TEE TE RMS Please keep a note of your serial No…. Your scooter is guaranteed for 12 months from the date of purchase against faults arising due to defects in manufacture or materials. This guarantee does not detract from, but is in addition to your legal rights.

  • Page 35: Service History

    SE RV IC E HIS TORY This section is designed to assist you in keeping a record of any service and repairs to your scooter. If you decide to sell or exchange your scooter in the future, this will prove most helpful to you.
  • Page 36 YOUR LOCAL DEALER (TO BE FILLED IN BY LOCAL DEALER) FREERIDER USA 8696 Utica Avenue Rancho Cucamonga, CA 91730 Tel:(909) 466-7996 Fax:(909) 466-7990 Email: Sales@freeriderusa.com http://www.FreeRiderUSA.com FREERIDER CORP. Head Quarter and Kaohsiung Facility: No.22, Bengong 5th Rd., Gangshan Dist., Kaohsiung City 820, Taiwan(R.O.C)
