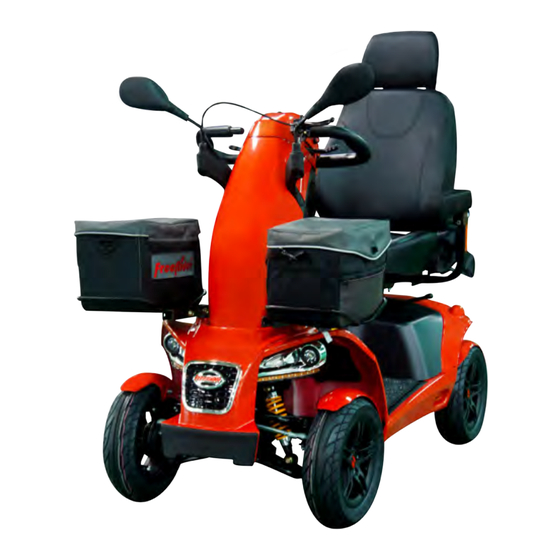

FREERIDER FR1 User Manual

Hide thumbs Also See for FR1:
Table of Contents

Advertisement

Quick Links

See also: User Instruction Manual
F reedom R eliability I nnovation
FR1
USER'S INSTRUCTION MANUAL
USER'S INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR1 and is the answer not in the manual?

Questions and answers

Elizabeth Law
June 17, 2025

hazard lights bleeping how do I stop them

0

Subscribe to Our Youtube Channel

Related Manuals for FREERIDER FR1

Summary of Contents for FREERIDER FR1

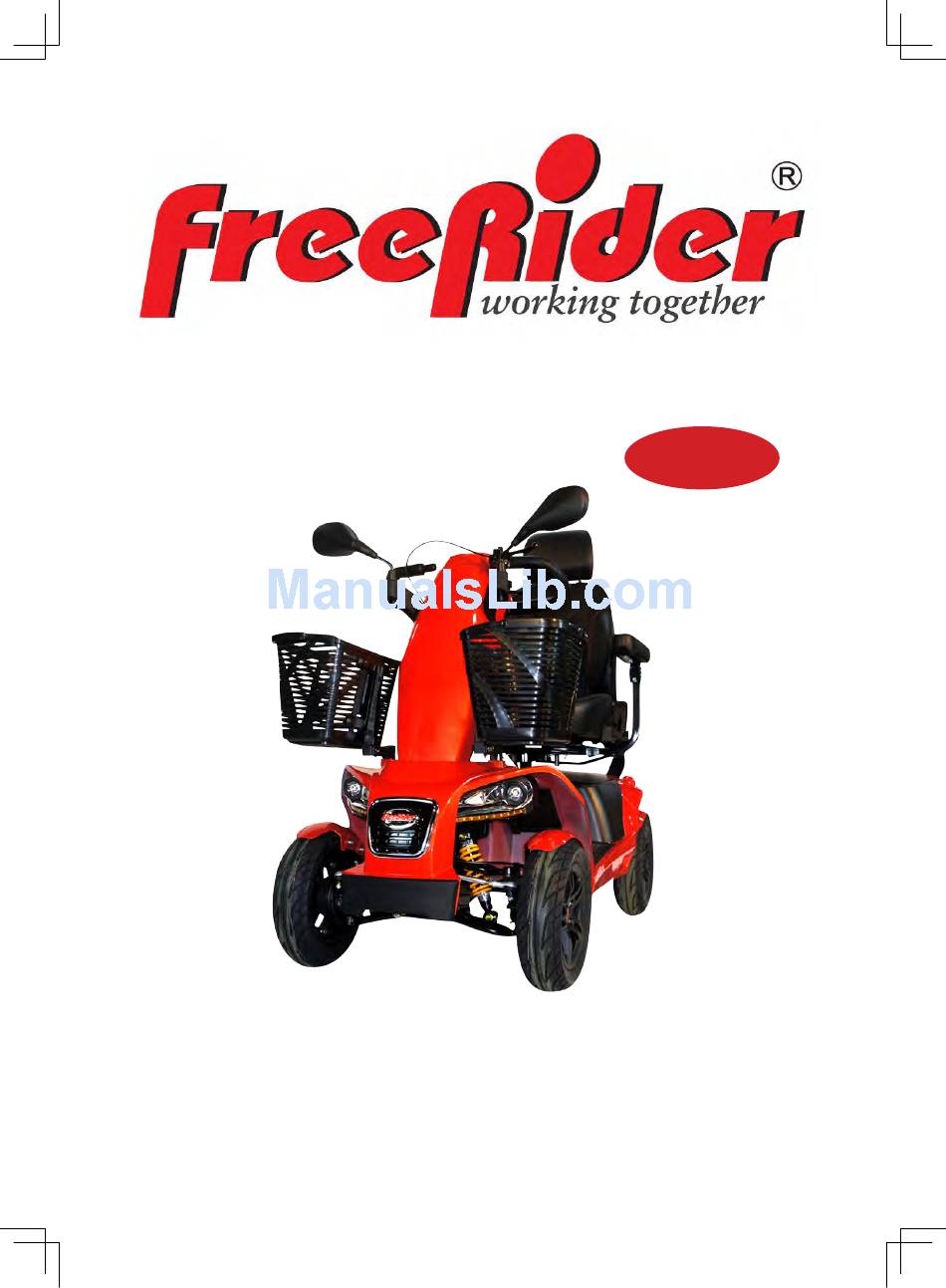

  • Page 1 F reedom R eliability I nnovation USER'S INSTRUCTION MANUAL USER'S INSTRUCTION MANUAL...
  • Page 2 FOREWORD Please read and follow all instructions in this User's Instruction Manual before attempting to operate your scooter for the first time. If there is anything in this manual that you DO NOT understand, or if you require additional assistance for setting it up, contact your authorized dealer.

  • Page 3: Table Of Contents

    CONTENTS Introduction ......................3 Purpose Of Your Scooter ..................3 Rules For Safe Use ....................4 Getting To Know Your Scooter ................. 6 Operating Your Scooter .................... 7 Freewheeling Your Scooter ..................14 Safety Instructions & Warning ................. 14 Safety Warning & Instruction Labels ............... 16 Learning To Get About ....................

  • Page 4: Introduction

    INTRODUCTION Congratulations on the purchase of your scooter. Please read this User's Instruction Manual carefully before you attempt to operate your scooter. Your User's Instruction Manual will assist you to get the most from your machine. This manual contains important information regarding the safe operation and maintenance of your scooter.

  • Page 5: Rules For Safe Use

    RULE FOR SAFE USE These symbols below are used in this User's Instruction manual to identify warnings and cautions. It is very important for you to read and understand them. Warning: Failure to note the warnings in this user's manual may result in personal injury. Your scooter is a powerful machine.
  • Page 6 ALWAYS approach obstacles straight. ALWAYS keep your feet on the vehicle when driving. ALWAYS proceed carefully while riding, especially as you approach the downgrade of a ramp. ALWAYS reduce speed when descending inclines. ALWAYS avoid uneven surfaces. ALWAYS consult your physician or a therapist if in doubt about your ability to operate a scooter.

  • Page 7: Getting To Know Your Scooter

    GETTING TO KNOW YOUR SCOOTER Steering Handbars Driving Mirror ● ● LCD Console ● ● Off-board Charger Port USB 5V Power Outlet Mirror Bracket ● Front LED Lights ● Direction Indicator Lights ● Daytime Running Lights ● Front And Rear Bumpers ●...

  • Page 8: Operating Your Scooter

    OPERATING YOUR SCOOTER Before setting out on your scooter you need to make sure that your seat is in the correct driving position. The seat has three basic adjustments to assist your comfort. 1. Mirror Assemble: 14mm wrench Mirror Assemble 2.
  • Page 9 4. Armrest Width Adjustment: On each side at the rear of the seat you will find a large black knob. By simply loosening this knob you are able to slide the armrests in or out to whatever width you desire. Re-tighten the knobs fully.
  • Page 10 7. Seat Slide: Located on the right front side of the seat. The lever allows you to adjust your seat forwards and backwards when sitting on the seat. Simply pull up the lever and move in the desired position backward by pushing or forward by hitching. As soon as the lever is released, the seat will lock into the new position.
  • Page 11 11. Control Features: Your controls are located on the handlebar console they are:...
  • Page 12 12. LCD Control Console: Sign Function Description Will activate controller system and control panel On-Off Power Switch Bars will illuminate to show the level of charge in your batteries Batteries condition indicator Will illuminate when power Distance/Temperature on and they also exhibit in /Time indicator different value Wi l l i l l u m i n a t e w h e n t h e...
  • Page 13 Sign Function Description Switch between Km and Miles l. Short press for switching between kilometer and mile. 2. Program Setting Mode for Speed and Loadstone setting , please contact your authorized dealer for adjustment. Reset the distance(range) 1 . S h o r t p r e s s t o s w i t c h between ODO/TRIP.
  • Page 14 13. Forward, Reverse Control Lever (Wig wag): Forward Reverse Your speed for forward and reverse motion and braking is controlled here. The right thumb lever moves your scooter in a forwards direction and also controls the rate of speed by the proportional amount of pressure applied. The left thumb lever moves the scooter in a reverse direction and controls the rate of speed by the pressure applied .

  • Page 15: Freewheeling Your Scooter

    FREEWHEELING YOUR SCOOTER If for reasons of convenience, or you require to push your scooter for a short distance, the drive system can be put into 'freewheel mode'. This will allow your scooter to roll freely. 1. Freewheel Procedure: The freewheel device is a red lever located at the rear right hand side of your scooter. To freewheel your scooter first switch off the power switch located on the scooter’s control console.
  • Page 16 Check tire inflation, maintain at 40 p.s.i. Check all battery connections, make certain they are serviceable and not corroded. Check front basket is fitted correctly. Check batteries have been fully charged. Check operation of brakes. Warning: DO NOT carry passengers on your scooter. Your scooter is designed for a single occupant which complies with legal requirements for pavement vehicles.

  • Page 17: Safety Warning & Instruction Labels

    SAFETY WARNING & INSTRUCTION LABELS The following labels are positioned on your scooter, they communicate important warnings or instructions regarding the safe operation of your scooter. Please familiarize yourself with their location. LEARNING TO GET ABOUT 1. Basic Driving: Make certain you are comfortably seated on your scooter and both armrests are down. Ensure that the "Speed Adjustment Dial"...
  • Page 18 The brakes automatically apply when the levers are released(returned to neutral position). Caution: Automatically Braking System The braking system on the Freerider FR1 is an electronic regenerative system on the rear-wheels. The brakes automatically apply when the levers are released (returned to neutral position).

  • Page 19: Care & Maintenance

    CARE & MAINTENANCE Your scooter like any other electro-mechanical machine will benefit from regular servicing by your dealer. You too, can help keep your scooter in tip-top condition by following a simple guide to home maintenance. Note: ONLY competent people should carry out service work. 1.
  • Page 20 6. DRIVE TRANSMISSION LUBRICATION: This unit is factory filled and will not normally need additional lubrication. Note: Our scooter transmission is filled with a special lubricant. DO NOT attempt to force grease into the transmission as this will contaminate the original lubrication and will invalidate your guarantee.

  • Page 21: Batteries And Battery Charging

    BATTERIES AND BATTERY CHARGING 1. Battery Installation: Your scooter is equipped with two maintenance free 12 volt 75Ah batteries. The batteries are linked together by wiring cables to supply the electronic system with 24 volts of power. Warning: It is imperative that the two batteries are connected correctly to prevent a short circuit between the two batteries.
  • Page 22 2. Battery Charging: Your scooter has a lot of power. To ensure it works to its full potential you must maintain both batteries on full charge. Nightly recharging, after use, will help you to give them a longer life and will ensure your scooter is ALWAYS ready to go when you are. ONLY use the charger supplied with your scooter;...

  • Page 23: Basic Fault Finding

    BASIC FAULT FINDING If your scooter will not start: (1) Check the power key switch is turned "on". If it is, the battery condition indicator meter will be operating. If the green status light on your console is flashing once per second, charge your batteries.
  • Page 24 2. Charging Circuit Fuse: One fuse protects your scooter charging circuit from receiving an overload of electrical current. The fuse used in the scooter is the same type which is found on automobiles. In the unlikely event that a fuse should 'blow' and needs replacing. Please use fuse with the recommended fuse rating.
  • Page 25 3.Status Fault Codes: Flash Description Meaning The batteries are running low. Battery Low Recharge the batteries. The batteries have run out of charge. Recharge the batteries. Low Battery Fault Check the battery and associated connections and wiring. Note: The low battery fault flash code,described above, is a requirement of various safety standards.

  • Page 26: Technical Specification

    TECHNICAL SPECIFICATION Model Number 6 degree Maximum Safe Slope 6 degree Maximum Climbing Ability 2.36 inches (6 cm) Maximum Obstacle Climbing Ability Colors Metallic Gray / Metallic Orange 56.9 inches (144.5 cm) Overall Length 27.2 inches (69 cm) Overall Width 365.6 lbs.

  • Page 28: Classification

    CLASSIFICATION Type 'B' indoor / with some outdoor capabilities (EN12184:1999) Class 2 (Highway Regulations 1988). Maximum safe climbing angle: 6 degree Warning: The safe climbing angle is measured with the seat in the highest position, and a weight capacity of 400lbs (182 kg). The motor on your scooter is powerful and may be able to climb a steeper incline than the maximum safe climbing angle.

  • Page 29: Optional Accessories

    OPTIONAL ACCESSORIES For information and installation method regarding these optional accessories, please contact your authorized agent. (Dealer information please refer to the back cover) Combined Basket, Stick/Crutch Holder: Combining the usefulness of the rear basket and the stick/crutch holder. Stick/Umbrella Holder: Ideal way to carry walking aids.

  • Page 30: Guarantee Terms

    G UARAN TEE TERMS Please keep a note of your serial number. (This is located on the front frame tube, under the front chassis cover). Your scooter is guaranteed for 12 months from the date of purchase against faults arising due to defects in manufacture or materials.

  • Page 31: Service History

    SER V IC E HISTO RY This section is designed to assist you in keeping a record of any service and repairs to your scooter. If you decide to sell or exchange your scooter in the future, this will prove most helpful to you.
  • Page 32 YOUR LOCAL DEALER (TO BE FILLED IN BY LOCAL DEALER) FREERIDER USA 8696 Utica Avenue Rancho Cucamonga, CA 91730 Tel:(909) 466-7996 Fax:(909) 466-7990 Email: Sales@freeriderusa.com http://www.FreeRiderUSA.com FREERIDER CORP. Head Quarter and Kaohsiung Facility: No.22, Bengong 5th Rd., Gangshan Dist., Kaohsiung City 820, Taiwan(R.O.C)
