Summary of Contents for Gefen EXT-HDMI-242

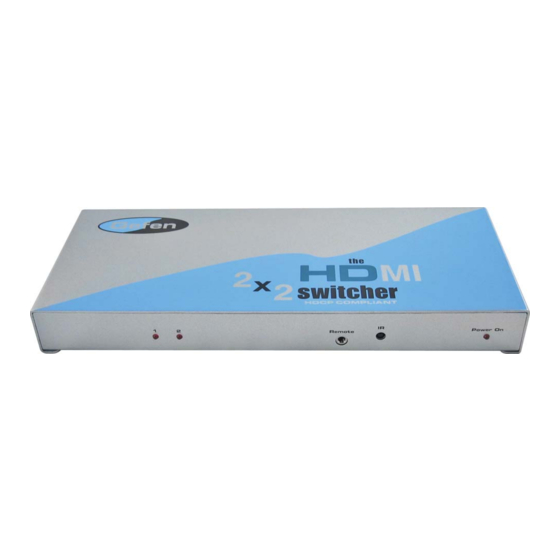

- Page 1 2x2 HDMI Switcher U S E R M A N U A L www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 2x2 HDMI Switcher is a trademark of Gefen Inc. HDMI is a trademark of hdmi.org...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the 2x2 HDMI Switcher RMT2-IR Installation IR Code Confl icts Dip Switch Guidelines RS-232 Interface Specifi cations Warranty... -
Page 5: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime support from a team of outstanding engineers. The ex•tend•it 2x2 HDMI Switcher allows two HDTV HDMI devices to be switched easily in to two HDTV HDMI compatible monitors or projectors. -
Page 6: Features
FEATURES Features • Switches easily between any two HDMI sources • Maintains 480p, 720p, 720i, and 1080i, 1080p resolutions • Maintains highest HDMI single link video resolution • Maintains highest HDMI digital audio signal • Includes TOSlink output for easy hookup to digital audio systems •... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Extender port IR eye Indicates if input 1 or 2 is selected Connects to RS232 HDMI In 1 HDMI In 2 HDMI Out 1 HDMI Out 2 5VDC power Controller supply Port TOSLINK Optical Out... -
Page 8: Connecting And Operating The 2X2 Hdmi Switcher
CONNECTING AND OPERATING THE 2x2 HDMI SWITCHER How to Connect the 2x2 HDMI Switcher to your devices 1 Connect the supplied cables from the HDTV sources into the 2x2 HDMI Switcher inputs. 2 Connect the cable from your display (monitor or projector) into the HDMI outs of the 2x2 HDMI Switcher. -
Page 9: Rmt2-Ir Installation
RMT2-IR INSTALLATION 1. Remove battery cover from the back of the RMT2-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 10: Ir Code Confl Icts
IR CODE CONFLICTS How to Resolve IR Code Confl icts There are matching pairs of dip switches underneath the Switcher unit and under the remote battery cover. Switch 1 & 2 on the Remote and Switch 3 & 4 underneath the unit are the matching switches. -
Page 11: Dip Switch Guidelines
DIP SWITCH GUIDELINES Inside the 2X2 HDMI Switcher is a bank of Dip Switches. Below is a table describing their functions. By default, all switches are set to the Off position. Dip Switch # Name Description Switching Delay Adds a 3 second delay to switching On Board EDID Feeds a Generic HDMI EDID to all Inputs IR Code Dip Switch... -
Page 12: Rs-232 Interface
RS-232 INTERFACE Binary Table ASCII Input Binary 0011 0001 0011 0010 Terminal Settings Bits per second ...................... 19200 Data bits ......................... 8 Parity ........................None Stop bits ..........................1 Flow Control ......................None... -
Page 13: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................. 1.65 GHz Input Video Signal ..................1.2 volts p-p Input DDC Signal ..................5 volts p-p (TTL) Single Link Range ................1080p / 1920 x 1200 Input Connector Type ....................HDMI Output Connector Type ....................HDMI Output Audio Connector Type................. -
Page 14: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 16 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
