Gemalto MagIC3 C-series Maintenance Manual page 11

E-Payment
1.2.6.2 1 SIM interface for application purpose
The product supports 1 SIM-sized SAM reader located on the left side of the terminal,
accessible from the outside. SIM is mechanically guided and need a paperclip to be
removed (paperclip has to be introduced and slided in the slot located on the bottom of
Terminal to remove the SIM).
SIM connector do not include card detect switch.
Since auxiliary signals are not interfaced, synchronous cards cannot be supported by these
interfaces.
1.2.7 Graphic Display
Backlight
Icon area
Active area
Dot & Dot size
Contrast
Lcd type
Viewing direction
Controller

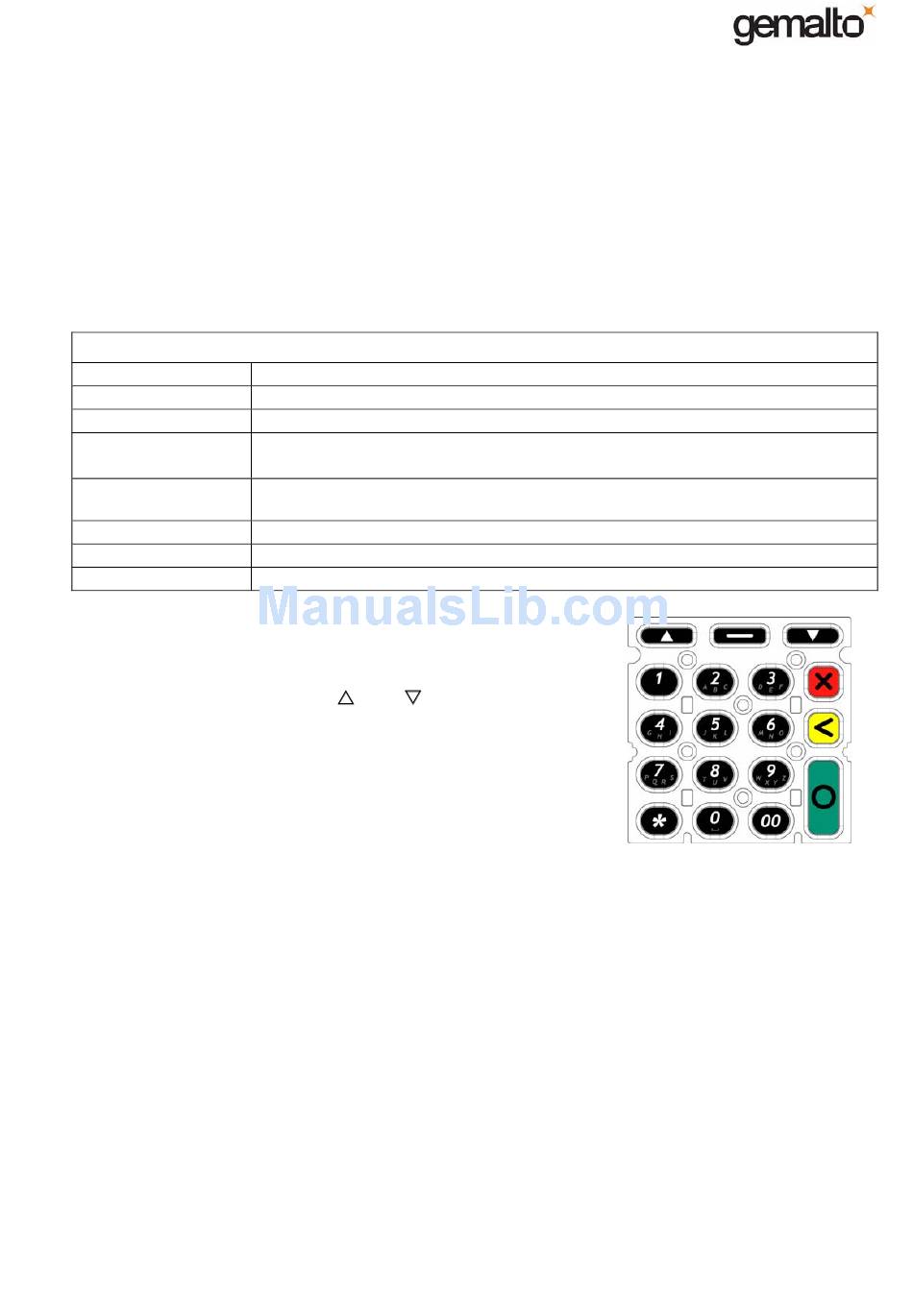

1.2.8 Keyboard
The keyboard consists of :
• A set of 3 cursor keys [ ] [–] [ ]
• A set of 15 keys as follows:
• 11 numerical keypad: [0] – [9], [00]
• 4 function keys: [
• Keys [0] – [9] have alphabet marking
• Key [5] has the blind point
Mechanically it consists of a silicon rubber membrane where each key is covered by a
plastic cap (known as plastic caps technology). The plastic caps cannot be removed from
their casing.
1.2.8.1 Keypad with meshed flex
In option, the Terminal can be equipped with a 2
of the original solution described above + a meshed flex glued on it. Such solution has been
implemented to re-inforce physical security of the Terminal to answer to specific request.
The flex is glued on keypad by ~ 30 points of glue. Points of glue are put down directly on
the mesh, in case of break, the mesh running on the flex will be cut, leading to Security
Alert (same behaviour as other security triggers : see §1.2.14). The mesh is connected to
the keyboard pcb through a 2
Ref: 22000-01-MAN-I-09010
Copyright Gemalto – 2009
3
MagIC C-series - MAINTENANCE MANUAL
Chapter 1 : DESCRIPTION
M AIN CHARACTERISTICS
NO
NO
54,18 x 28,58 mm
(w) (h)
128 x 64 dots
0,38 x 0,38 mm (pitch 0,40 x 0,40)
Automatic temperature adjustment integrated to the display, with possibility to
control it by software
STN/Yellow-green/Positive/Reflective
6 o'clock
COG (Chip On Glass)
] , [x]:cancel , [<]:clear , [O]:enter
*
nd
elastomeric connector.
No disclosure to a third party without prior written consent of Gemalto
nd
type of keyboard. This keyboard is made
Sept 2009 Ch.1 - 11/32
