Duplex Removal - Lexmark 363dn Service Manual

7013-XXX

Duplex removal

1.
Remove the right side printer cover. See
2.
Remove the LVPS/HVPS. See
3.
Place the printer on its right side.
Note: Be careful to not mar the finish of the printer.
4.

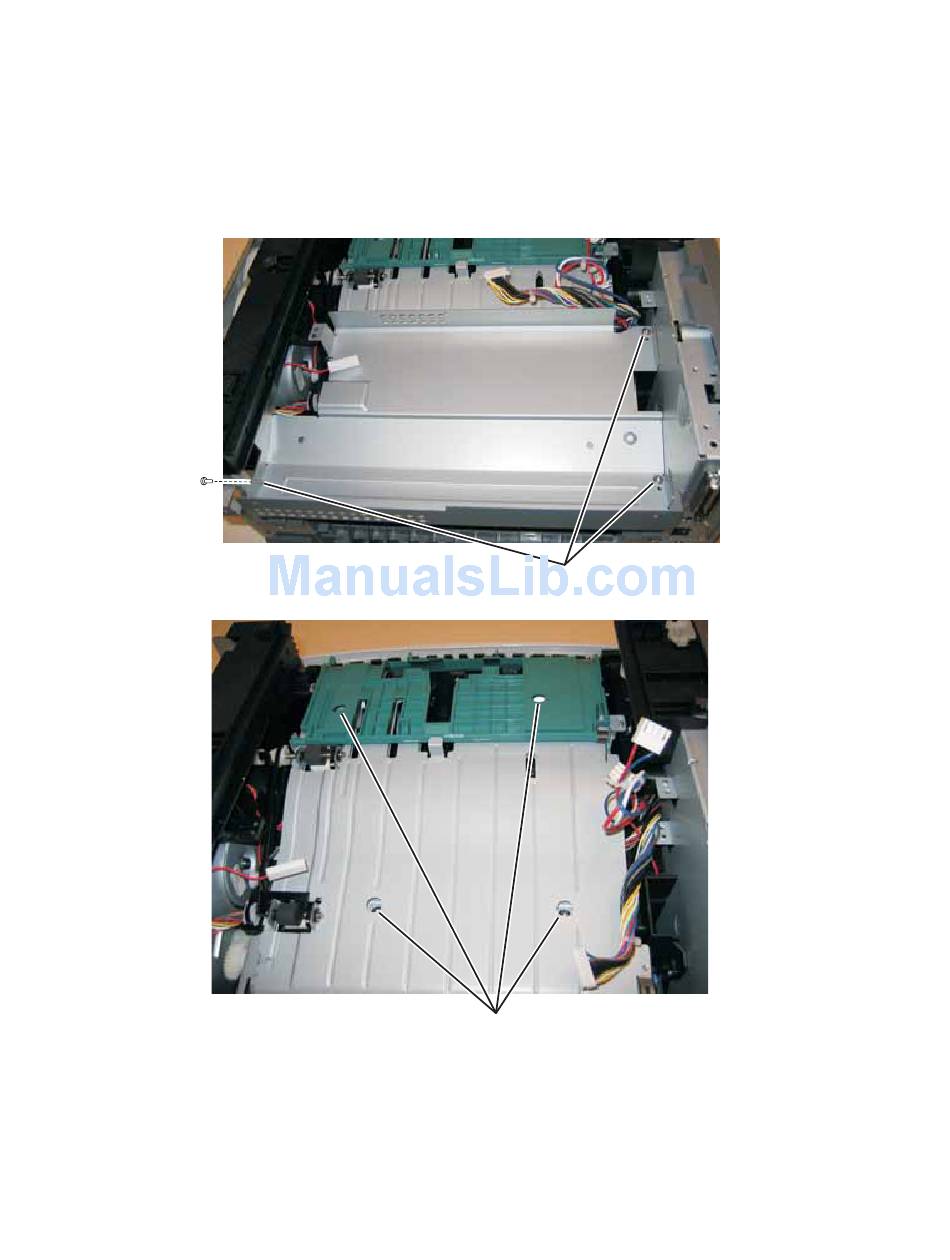

Remove the three screws (A) from the shield.
5.
Remove the four screws (B) from the duplex.
4-16
Service Manual
"Right side printer cover removal" on page
"LVPS/HVPS removal" on page
B
4-39.
A
4-71.
