Summary of Contents for WINBO WB20141117

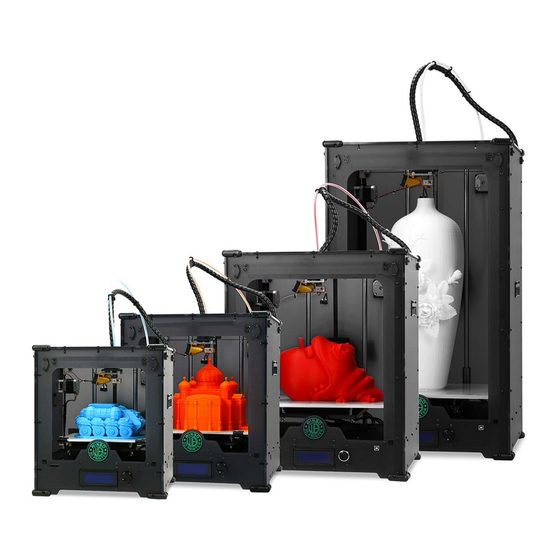

- Page 1 User Manual for WINBO 3D Printers Version: WB20141117 WINBO 3D PRINTER USER MANUAL VERSION: WB20141117...
-
Page 2: Table Of Contents
User Manual for WINBO 3D Printers Version: WB20141117 Table of Contents A. MACHINE SPECIFICATIONS .............................. 2 B. SOFTWARE INSTALLATION............................... 2 B.1 SOFTWARE INSTALLTION .............................. 2 B.2 SOFTWARE CONFIGURATION ............................3 C. SOFTWARE SETTINGS ............................... 4 C.1 CONFIGURATION FILE LEAD-IN ........................... 4 C.2 QUICKPRINT PRINTING .............................. - Page 3 Therefore, this User Manual is designed to start your journey with the Winbo Dragon Style desktop 3D printers in the right direction. Your Winbo Dragon is optimized for PLA and PETG. It is so crucial to take the time to learn about this User Manual as well as your new machine! Due to long distance of transportation, please kindly unpack the machine box and check all the accessories and tool sets before using your new machine, to make sure everything is OK: bolts fastened.
-
Page 4: Machine Specifications
User Manual for WINBO 3D Printers Version: WB20141117 A. MACHINE SPECIFICATIONS PRINTING PHYSICAL SPECIFICATIONS LAYER THICKNESS: 0.06-0.4 mm (adjustable) DARGON PRITNING MATERIALS: PLA / PETG / ABS MACHINE SIZE: 440 x 360 x 740 mm FILAMENT DIAMETER: 3.0 mm CBM: 560 x 485 x 960 mm NOZZLE DIAMETER: 0.4 mm... -
Page 5: Software Configuration
User Manual for WINBO 3D Printers Version: WB20141117 B.2 SOFTWARE CONFIGURATION To run the software for the first time, you will encounter a welcome interface. Click on “Next” to enter the First time run wizard and you may follow the instructions as below:... -
Page 6: Software Settings
C. SOFTWARE SETTINGS C.1 CONFIGURATION FILE LEAD-IN You may finish the software settings by leading in the configuration file in the SD card. Click on “File” and choose “Open Profile”. Find out the “WINBO-3D Printer.ini” and click on it. -
Page 7: Quickprint Printing
User Manual for WINBO 3D Printers Version: WB20141117 C.2 QUICKPRINT PRINTING When running the software the default option is QUICKPRINTING mode. On the left, you will find the Specifications and Screen as shown below: Screen Specifications There are 3 types of QUICK PRINT High quality print, Normal quality print, Fast low quality print. You may print with PLA or PETG. -
Page 8: Full Settings Printing
User Manual for WINBO 3D Printers Version: WB20141117 C.3 FULL SETTINGS PRINTING Choose “Tools” under the menu”Switch to full settings” as below: BASIC SETTINGS ARE AS BELOW: （1） Layer height: thickness for each layer. Normally it is 0.15mm. If you need high resolution, you may choose smaller one. -
Page 9: Accessories Installation And Basic Functions
User Manual for WINBO 3D Printers Version: WB20141117 Advanced settings: （1）Nozzle size: 0.4mm (fixed). （2）Speed（retraction）: the speed for retraction. Retraction is pulling the filament back when moving over a gap in the print. （3）Distance（retraction）: if it is 0, it mean no retraction made at all. -
Page 10: Basic Functions
User Manual for WINBO 3D Printers Version: WB20141117 Put the spool holder Connect the cable Load the filaments spool Put on the glass plate Pull out he blue buckle on the Insert the other end of the feeder mechanism transparent tube Put back the blue buckle D.2 Basic Functions... -
Page 11: Machine Tests
User Manual for WINBO 3D Printers Version: WB20141117 After pressing the knob, there will be “ticking” sound and then comes to the next interface on the LCD panel: D.2.1 MACHINE TESTS You may need to test the machine first before printing. -
Page 12: Loading
User Manual for WINBO 3D Printers Version: WB20141117 Use a name card to check the gap Adjust the gap by the knobs Recheck the gap under the build plate Tips: you may level the build plate roughly first and then make small adjustment during printing. The gap should be 0.3mm. -
Page 13: Change Filament During Printing
User Manual for WINBO 3D Printers Version: WB20141117 On the main menu After heating, insert the filament to Push the filament through with “prepare”“preheat the extruder and push it down a strength until the filament passes the PLA”or“Preheat ABS” to heat the... - Page 14 User Manual for WINBO 3D Printers Version: WB20141117 Use the pliers to cut one end of the In the same way, make sure the cut Take away the current spool new filament and make sure the cut on one end of the current filament...
-
Page 15: Unloading
User Manual for WINBO 3D Printers Version: WB20141117 D.2.5 UNLOADING On the main menu“prepare”“preheat Pin on the lock catch and pull Pull out the blue buckle PLA”or“Preheat ABS”to heat the out the transparent tube extruder to 230℃ Unloading Put back the blue buckle E. -
Page 16: Start Printing
User Manual for WINBO 3D Printers Version: WB20141117 Preheat PLA Preheat PLA: Sub-menu Preheat PLA All Preheat PLA Preheat PLA Bed Preheat ABS Preheat ABS: Sub-menu Preheat ABS All Preheat ABS Preheat ABS Bed Cool Down Switch Power off Disable Steppers Temperature：Sub-menu... -
Page 17: Rotate
User Manual for WINBO 3D Printers Version: WB20141117 There are many functions to make adjustment to the model, such as flipping, rotating, scaling and so on. F.1.1 ROTATE Click and you can rotate the model from X, Y or Z axis. The red one is X-axis, green Y-axis and yellow Z-axis. -
Page 18: Flipping (Mirror)
User Manual for WINBO 3D Printers Version: WB20141117 TO max : to make the model to the maximum size within the build size. Reset : reset the model that has been adjusted. F.1.3 FLIPPING (MIRROR) Click on to flip the model as below: ... -
Page 19: Viem Mode
User Manual for WINBO 3D Printers Version: WB20141117 Note: Slit object into parts is to separate two models instead of slitting a model into two parts. Split into two models Two wholes A whole F.1.5 VIEM MODE You may adjust the view mode for better checking and editing on the model. -
Page 20: Print From Computer
User Manual for WINBO 3D Printers Version: WB20141117 and specify a directory path for it and name it as “.gcode” file. toolpate” Insert the SD card on the machine. Choose “Print from SD” on the main menu and select the file that you would like to print. - Page 21 User Manual for WINBO 3D Printers Version: WB20141117 After loading the file into the software and finishing the settings, you may click on or go to the menu “File”→”Print” to start printing from computer. Temp’s options: Through “Temp”and “Bed Temp”, you may make changes to the temperatures on the extruder and the build plate.When the target temperatures are higher than the actual ones, the extruder and the build plate will be...
-
Page 22: Continue The Print After Power Cut
User Manual for WINBO 3D Printers Version: WB20141117 make extruder’s motor to move forward or backward. To make the X or Y-axis’s motors to To make the Z-axis’s motor to move move forward, backward or back to forward, backward or back to the the start. - Page 23 User Manual for WINBO 3D Printers Version: WB20141117 5) Open the file “.Gcode” by Notepad order. The Gcode can be divided into 3 parts: the head code, printing code and the tail code. Shown as below: The head code: Information on the printing settings...
- Page 24 User Manual for WINBO 3D Printers Version: WB20141117 7) Within the printing code, delete all information above this position. 8) Modify the head code’s information as shown below: 9) Save the Gcode and put it back to the SD card.
-
Page 25: Machine Maintenance
Version: WB20141117 H. MACHINE MAINTENANCE WINBO 3D printers can work for dozens of hours continually. After long time working, some parts on the machine may go through wear and tear. We kindly advice that you should apply maintenance to the machine every month. -
Page 26: Contact Us
User Manual for WINBO 3D Printers Version: WB20141117 Scrape out the residue on the You may repeat steps 4, 5, 6 and 7 until the Allen wrench Allen wrench can hit on the nozzle easily. 4) Gear on the feeder. You may find some plastic fragment on the gear after long time working. Such plastic fragment will do harm to the printing quality. -
Page 27: After-Sale Services
5). WINBO will not provide on-site service for free. 6). Machines that need to be returned for repair, both WINBO and the customer will share shipping costs. The machine has to be well packed as the original packing (no need to include accessories). - Page 28 User Manual for WINBO 3D Printers Version: WB20141117 4. Steps for repair. Problems Contact us Serious Simple problems maintenance File the repair sheet Certain Parts adjustment replaced Return for repair (good packing) 5. Repair charge. If the replaced parts are not covered by the warranty, or the machine is out of warranty, the customer needs to...
