XVision PCC427 User Manual

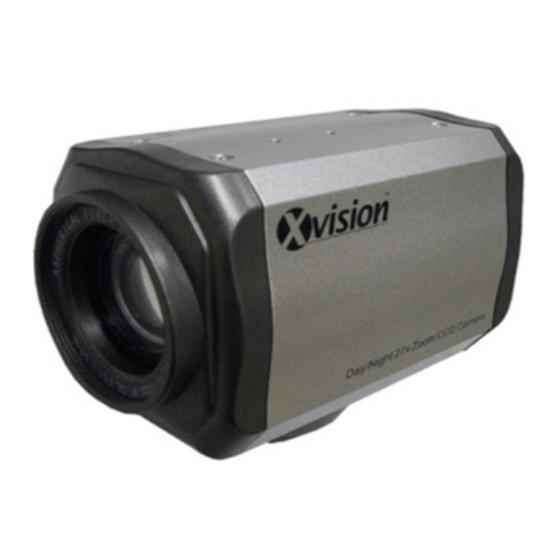

Day/night 700 tvl camera with 27x zoom & pelco d/p control
Hide thumbs Also See for PCC427:
Table of Contents

Advertisement

Quick Links

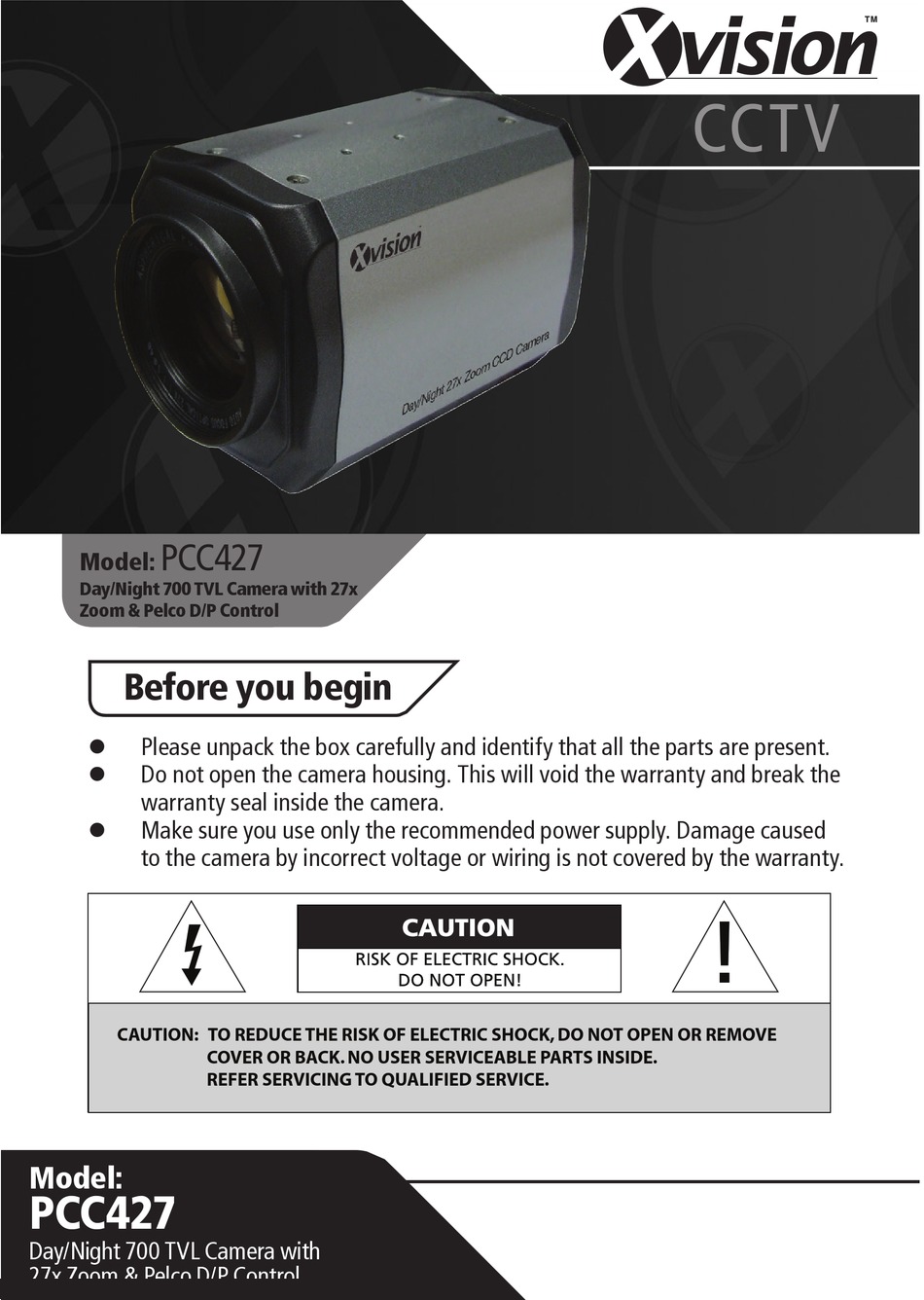

PCC427
Model:
Day/Night 700 TVL Camera with 27x
Zoom & Pelco D/P Control

Before you begin

Please unpack the box carefully and identify that all the parts are present.
z
Do not open the camera housing. This will void the warranty and break the
z
warranty seal inside the camera.
Make sure you use only the recommended power supply. Damage caused
z
to the camera by incorrect voltage or wiring is not covered by the warranty.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN OR REMOVE
Model:
PCC427
Day/Night 700 TVL Camera with
27x Zoom & Pelco D/P Control
COVER OR BACK. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE.
CCTV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCC427 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XVision PCC427

Summary of Contents for XVision PCC427

  • Page 1: Before You Begin

    CCTV PCC427 Model: Day/Night 700 TVL Camera with 27x Zoom & Pelco D/P Control Before you begin Please unpack the box carefully and identify that all the parts are present. Do not open the camera housing. This will void the warranty and break the warranty seal inside the camera.

  • Page 2: Product Description

    1. Product Description The PCC427 is a high quality Colour Body Camera with a High Resolution Sony 1/4” Super HAD CCD and Xvision IXC1HQDNE DSP for great colour balance, resulting in a naturally vibrant image. The CCTV Camera is designed for use in high risk applications where high resolution surveillance is required.
  • Page 3 4. Connections Rear of PCC427 Power ON LED Rear Panel Buttons Video Out RS485 Camera Power Input Control connections connections On the rear of the unit you will find the following: VIDEO OUT - Allows you to connect BNC plug to enable Video.

  • Page 4: How To Operate

    See the diagram below illustrating how the mount for the bracket can be fixed to either the top or the bottom of the camera: Bottom Mount (supplied fixed) Top Mount Note: Should you wish to use this camera externally, you will require an Xvision external housing.

  • Page 5: Osd Menu Options

    6. OSD Menu Options Press the Menu Button once to access the Menu ID Set Baud Set <2400 / 4800 / 9600 / 19200 / 38400> Zoom Speed <1~8> Zoom Start <1~27> Zoom Stop <1~27> Focus State <FP / MF / AF> Start Time <0~20 (Optional)>...
  • Page 6 6. OSD Menu Options continued 1 > ID Set (Set ID of Camera) The camera can be assigned a unique ID number so it can be identified if using a controller or management system. 2 > BAUD (Baud Rate of Camera) <Option: 2400 / 4800 / 9600 / 19200 / 38400>...
  • Page 7 6. OSD Menu Options continued <Option: 0~20> 8 > Stop Time (Optional) When in Auto Zoom mode, set the stop time of the zoom stop position. <Option: 0~20> 9 > Init Set Select this function to reset the camera position and settings. 10 >...
  • Page 8 6. OSD Menu Options continued 15 > WB Control (White Balance Control) <Option: PUSH / U3 / MWB / U2 / HOLD / U4 / ATW / U1> Adjust white balance of camera, so that white and other colours appear as natural as possible depending on particular requirements/environment.
  • Page 9 6. OSD Menu Options continued 24/25 > V. Start / End <Option: 0~252> Set the Vertical Start and End points of the Privacy Mask. <Option: 0 / 1 / 2 / 3> 26 > Mask Color Set the colour of the Privacy Mask. Choose from 4 colours. <...

  • Page 10: Troubleshooting

    7. Troubleshooting Problem Solution No picture Check power supply for correct voltage and polarity Check LOCK Menu to check if the rear button panel has Buttons do not work been locked Check LENS Menu, if it is set to MF mode (manual focus), Picture is blurred change it to AF mode (Auto Focus mode) Power supply may be faulty.

  • Page 11: Specifications

    Specifications Model: PCC427 Picture Type: Day/Night (B/W & Colour) Image Sensor: Sony 1/4” Super HAD CCD DSP: Xvision IXC1HQDNE Resolution: 700 TVL Lens Viewing Angle: 1 to 60° Minimum Illumination: 0.5 Lux Audio: Operating Voltage: 12V DC 350mA Suggested Power Supply:...
  • Page 12 CCTV TECHNICAL SUPPORT: For Technical Support for any Xvision product please contact your local distributor. LIMITED WARRANTY: This product is supplied with a 1 Year warranty. The Warranty excludes products that have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase.
