XVision PCC435 User Manual

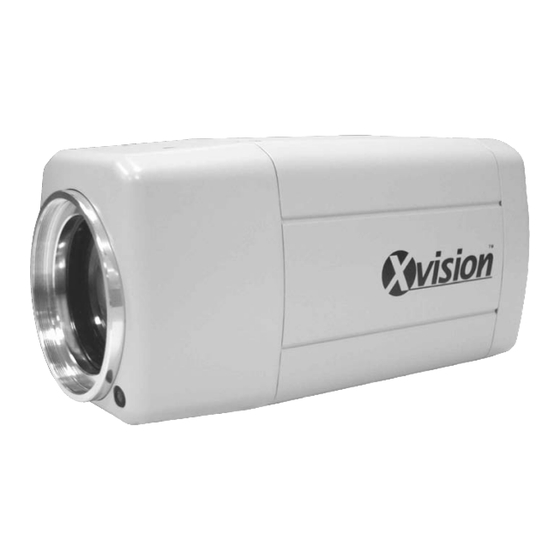

Colour digital ccd 560x zoom camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PCC435
Model:
Colour Digital CCD
560x Zoom Camera

Before you begin

•
Please unpack the box carefully and identify that all the parts are
present.
•
Do not open the camera housing. This will void the warranty and
break the warranty seal inside the camera.
•
Make sure you use only the recommended power supply. Damage
caused to the camera by incorrect voltage or wiring is not covered
by the warranty.
Model:
PCC435
Colour Digital CCD
560x Zoom Camera
CCTV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCC435 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XVision PCC435

Summary of Contents for XVision PCC435

  • Page 1: Before You Begin

    CCTV PCC435 Model: Colour Digital CCD 560x Zoom Camera Before you begin • Please unpack the box carefully and identify that all the parts are present. • Do not open the camera housing. This will void the warranty and break the warranty seal inside the camera.

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTIONS ......................3 2. INTRODUCTION........................4 3. FEATURES..........................5 4. ACCESSORIES.......................... 6 5 NAME and FUNCTION of EACH PART ................7 6. INSTALLATION........................10 6.1 Native Keyboard Installation ....................11 6.2 PELCO Keyboard (or compatible) Installation..............11 7.

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS C AUT IO N : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. It is advised to read the Safety Precaution Guide through carefully before operating the product, to prevent any possible danger.

  • Page 4: Introduction

    2. INTRODUCTION The auto-focus camera is a compact CCTV camera designed for easy integration into surveillance systems. The Camera's built-in 35x Optical zoom lens spells added user convenience since there is no need for separate adjustment of the focal distance. Current applications include highway traffic control, plus security surveillance in such locations as elevators and parking lots.

  • Page 5: Features

    3. FEATURES 1/4’’ High Resolution Color CCD Camera. Supports powerful function: Auto Iris Control (AIC), Auto White Balance (AWB), Auto Gain Control (AGC), Auto Back Light Compensation (ABLC), Flickerless (FL) and Auto Focus (AF). 35x Optical Zoom Lens and 16x Digital Zoom. (Total 560x Zoom). Day &...

  • Page 6: Accessories

    4. ACCESSORIES • Mounting Block ×1 and Screws ×2 • User’s Manual ×1 • Wire Remote Control Interface Cable ×1 • Wire Remote Controller (optional)

  • Page 7: Name And Function Of Each Part

    5 NAME and FUNCTION of EACH PART Front View Side View 126.1 mm ±0.5 mm 64 mm ±0.5 mm 73 mm ±0.5 mm Figure 5-1 Figure 5-2 Rear View VIDEO AUDIO TELE VIDEO AUDIO TELE MENU NEAR MENU NEAR REMOTE REMOTE WIDE WIDE...
  • Page 8 (1). Power Input：DC 12V ±10% (Recommendation 12V ±0.5V) Max 4.1W. (2). Video Output：Composite Video 1Vp-p, 75 Ohms, BNC (3). Audio Output：2Vp-p, 50 Ohms (4). 5 Keys Control： Name Function Tele/ Zoom Tele or Up ( ) Wide/ Zoom Wide or Down ( ) Near/＋...
  • Page 9 Day & Night Output This function will turn on the external IR LED lamp according to the position of IR cut filter. Day & Night Output 5V / 10mA: IR LED ON (NIGHT) IR LED OFF (DAY) Day & Night External Input When Day &...

  • Page 10: Installation

    6. INSTALLATION RS-232 D-Sub Connector Camera 1 Frame GND RS-232 Interface 2 RD 3 TD 4 DTR 5 Signal GND 6 DSR 7 RTS 8 CTS 9 RI Figure 6-1 Camera RS-422 Interface RS-232 to RS-422 Converter To PC or Controller Figure 6-2 Camera...

  • Page 11: Native Keyboard Installation

    6.1 Native Keyboard Installation RS-485 interface is used for communicating native keyboard. Refer to Figure 6-3; connect R+ and T+ of the camera together; connect R+ and T+ of the camera to D+ of the native keyboard. Connect R- and T- of the camera together; connect R- and T- of the camera to D- of the native keyboard.

  • Page 12: Operating Procedure

    7. OPERATING PROCEDURE (1) Mount the camera on the mounting bracket by using the hole on the top or bottom of the camera or by using the enclosed 8mm mounting block, furnished by 2 screws. (2) Connect the Video Output to the monitor or other video device via a 75 Ohms type coaxial cable.

  • Page 13: Pelco Keyboard (Or Compatible) Operation

    OSD Setup Menu Mode Native Keyboard Camera Function Decrease (-) Increase (+) Cursor Up Cursor Down BRIGHTNESS+ None BRIGHTNESS- None NEAR None None Zoom TELE None Zoom WIDE None Move Joystick Left None Move Joystick Right None Move Joystick Up None Move Joystick Down None...
  • Page 14 OSD Setup Menu Mode PELCO Keyboard Camera Function OPEN Sub Menu Enter CLOSE Sub Menu Exit NEAR Cursor Up Cursor Down Twist Joystick clockwise or Zoom In None Twist Joystick counterclockwise or Zoom Out None Move Joystick Left Decrease (-) Move Joystick Right Increase (+) Move Joystick Up...

  • Page 15: System Setup

    8. SYSTEM SETUP 8.1 OSD (On Screen Display) FORMAT OSD DISPLAY POSITION Figure 8-1...
  • Page 16 OSD DISPLAY DESCRIPTION FUNCTION OSD Format DESCRIPTION Non display Auto Mode FOCUS MODE Manual / Push Auto Mode Non display Back Light OFF BACK LIGHT “BLC” display BLC ON / Auto / Super BLC Mode Normal Shutter Non display (NTSC: 1 / 60, PAL: 1 / 50) “Ff”...
  • Page 17 NOTE: Setting string: "BBBB, P, D, S" BBBB represent baud rate, it can be one of the following values: 2400, 4800, 9600, 19200 P represent parity, it can be one of the following values: N (None), O (Odd), E (EVEN) D represent data bits, it should be the following value: S represent stop bit, it should be the following value: For example, the following string specifies a baud rate of 9600, no parity, 8 data bits, and...

  • Page 18: Menu Descriptions

    8.2 MENU DESCRIPTIONS MAIN MENU MENU FOCUS SET AWB SET AE SET SPECIAL SET F OSD DISP DAY/NIGHT COMMUNICAT INITIAL SET EXIT Figure 8-2 SET UP THE MENU In order to display the Setup Menu on the screen, set the Menu command or press key panel.

  • Page 19: Sub Menu Descriptions

    8.3 SUB MENU DESCRIPTIONS FOCUS SET FOCUS MODE SET: This function is for focus mode setting. Set the mode to Auto, Manual, or Push Auto. FOCUS DISTANCE SET: This function is for selection of minimum shooting distance. Set the Focus Distance mode to 1cm, 10cm, 50cm, 1M, 1.5M, 3M, 5M or 10M.
  • Page 20 AWB SET WB MODE SET: This function is for changing the WB mode. Set the mode to Auto, Hue, Indoor, Outdoor, Manual, or Push Auto. AUTO: WB color temperature range = 2500°K ~ 8000°K. Manual WB: Adjust Red and Blue gain to perform a desired White Balance. PUSH AUTO: Set the WB mode to Push Auto.
  • Page 21 AE SET AE MODE SET: This function is for changing the AE mode. Set the mode to AUTO, IRIS MAN, AGC MAN, or Manual. IRIS ADJUST SET: This function is valid for IRIS MAN mode. Adjust the level from 36 MIN to 250 MAX. AGC MAXIMUM SET / AGC ADJUST SET: This function is valid for AGC AUTO mode / AGC MAN mode.
  • Page 22 BLC LEVEL SET: This function is valid for BLC ON mode. Adjust the level from 0 MIN to 80 MAX. BLC AREA SET: This function is valid for BLC ON or AUTO BLC mode. Define the main object area that is under exposure based on the average luminance of the whole image.

  • Page 23: Special Set

    SPECIAL SET USER TITLE SET: This function is for setting up user title on screen display. Set the position of title using Near / Far Command, set the data using Tele / Wide Command. SHARPNESS ADJUST Set: Adjust the level from 0 to 15. MIRROR Set: Select the mode ON or OFF.
  • Page 24 F. OSD SET FUNCTION DISP ON or DISP OFF There are Focus Mode, Back Light, Shutter Speed and WBC Mode in the function display. CAMERA ID DISP ON or DISP OFF ZOOM MAG DISP ON or DISP OFF USER TITLE DISP ON or DISP OFF INIT TITLE DISP ON or DISP OFF BRIGHTNESS DISP ON or DISP OFF DAY/ NIGHT SET...
  • Page 25 COMMUNICATION SET Adjusted communication function is only effective, after exiting the OSD setup menu. Protocol Set, Speed Set and Parity Set should only be adjusted via rear panel keys. CAMERA ID To connect numerous cameras, identification number is assigned to each camera for camera control (000 ~ 255: total numbers of ID are 256).

  • Page 26: Camera Control Command Protocol

    9. Camera Control Command Protocol (For RS-232, RS-422, and RS-485) 9.1 Communication Format The communication data format from PC to Camera Data of total 6 bytes is transmitted from PC to camera. Format: Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 0xC5 Code1 Code2 Code3...

  • Page 27: Pc Command

    The communication data format from Camera to PC Data of total 9 bytes is transmitted from Camera to PC. Format: Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Byte9 0xC5 Code1 Code2 Code3 Data1 Data2 Data3 Data4 C.S. Description: (Refer to 9.2 PC Command) (a) Byte 1: Camera is realized the protocol comes from PC.
  • Page 28 BACKLIGHT Level Read Read the current BACKLIGHT level of Camera. PC → Camera 0xC5 0xAA 0x61 0x00 CAM_ID C.S. Camera → PC 0xC5 0xAA 0x61 0x00 BL_level 0xXX 0xXX 0xXX C.S. BL_level: This is a value of the camera for controlling BACKLIGHT level. Adjust BACKLIGHT level Adjust current BACKLIGHT level of Camera.
  • Page 29 Camera ID Display Mode ON/OFF Toggle control Switch the display mode of camera ID (ON/OFF). PC → Camera 0xC5 0xAA 0x6A 0x00 CAM_ID C.S. Camera → PC 0xC5 0xAA 0x6A 0x00 0x6A 0xXX 0xXX 0xXX C.S. Caution: If the Camera ID is “OFF” mode, then the Camera ID is not displayed. Zoom Lens Position Read Read the current position value of Zoom lens &...
  • Page 30 Camera → PC 0xC5 0x37 0x00 0x00 FP_CNT+1 FP_CNT 0xXX 0xXX C.S. FP_CNT+1: Upper byte of Focus lens position. FP_CNT: Lower byte of Focus lens position. Ex. In case of Focus lens Position = 0x1A2, FP_CNT+1 = 0x01 FP_CNT = 0xA2 Caution: This command is used to set the PRESET mode.
  • Page 31 1. PRE_I_ZH: The index value of the Buffer RAM to store the position of the Zoom lens for the PRESET mode, and the upper data of position value for the Zoom lens. Bit No. Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2...
  • Page 32 Camera → PC 0xC5 0x4B PRE_I DZP PRE_I 0xXX 0xXX 0xXX C.S. 1. PRE_I: The index value of Buffer RAM to store the position of the Digital Zoom for the PRESET mode. Bit No. Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2...
  • Page 33 Camera → PC 0xC5 0x52 INDEX 0x00 INDEX 0xXX 0xXX 0xXX C.S. INDEX: Index value for setting up Max Power Digital Zoom. 1. In case of INDEX = 0, the Max Power Digital Zoom = 2X. Therefore, Total Zoom = 70X. 2.
  • Page 34 Camera → PC 0xC5 0x78 NEW_C_ID On/Off NEW_C_ID 0xXX 0xXX 0xXX C.S. 1. NEW_C_ID; New data to change Camera ID. 2. On/Off: Setting the Camera ID mode to “On” or “Off”. If On/Off = “0x00”, the Camera ID mode becomes “OFF” mode. In this case, we may ignore “CAM_ID”...
  • Page 35 BACKLIGHT ON/OFF control Switch the BACKLIGHT mode to On/Off according to the data of “MODE”. PC → Camera 0xC5 0xAA 0x70 MODE CAM_ID C.S. Camera → PC 0xC5 0xAA 0x70 MODE 0x70 0xXX 0xXX 0xXX C.S. 1. In case of MODE = 0x01, The BACKLIGHT mode becomes ON mode. 2.
  • Page 36 FLICKERLESS Mode ON/OFF Setting Switch the FLICKERLESS mode to ON or OFF according to the data of the “MODE”. PC → Camera 0xC5 0xAA 0x74 MODE CAM_ID C.S. Camera → PC 0xC5 0xAA 0x74 MODE 0x74 0xXX 0xXX 0xXX C.S. 1.
  • Page 37 3. Otherwise, the PUSH AUTO White Balance state remains unchanged. Caution: This mode will not be saved when the power of a camera turns OFF/ON. Default mode valid is “OFF” mode. This command is when the White Balance Mode is “PUSH AUTO”...
  • Page 38 SHUTTER Speed Setting Set the shutter speed of the camera according to the data of “SSC_CNT”. PC → Camera 0xC5 0xAA 0x7B SSC_CNT CAM_ID C.S. Camera → PC 0xC5 0xAA 0x7B SSC_CNT 0x7B 0xXX 0xXX 0xXX C.S. SSC_CNT NTSC SSC_CNT NTSC 1/60 1/50...
  • Page 39 AGC Level Setting Set the AGC Level of the camera according to the data of “AGC_CTL”. PC → Camera 0xC5 0xAA 0x7D AGC_CTL CAM_ID C.S. Camera → PC 0xC5 0xAA 0x7D AGC_CTL 0x7D 0xXX 0xXX 0xXX C.S. AGC_CTL: The data for adjusting the AGC level of the camera. Data value range from 0x1C (Minimum AGC Level) to 0xDC (Maximum AGC Level) valid...
  • Page 40 Digital Zoom Mode ON/OFF Setting Switch the Digital Zoom mode to ON or OFF according to the data of “MODE”. PC → Camera 0xC5 0xAA 0x6E MODE CAM_ID C.S. Camera → PC 0xC5 0xAA 0x6E MODE 0x6E 0xXX 0xXX 0xXX C.S. 1.
  • Page 41 High Speed Zoom Tracking External PRESET Move Control Performs Zoom Tracking PRESET action to the targeted zoom position, memorized in the volatile PRESET Buffer RAM indicated by the “INDEX” value. In this case, the Zoom Tracking is performed quickly. PC → Camera 0xC5 0x7C INDEX 0x00 CAM_ID C.S.
  • Page 42 Explanation 0: Focus Auto state. 1: Focus Manual state. 0: Camera ID OFF mode. 1: Camera ID ON mode. 0: WB Push_Auto OFF state. 1: WB Push_Auto ON state. 0: BACKLIGHT OFF state. 1: BACKLIGHT ON state. 0: FLICKERLESS OFF state. 1: FLICKERLESS ON state.
  • Page 43 Explanation Reserved. 0: Mosaic OFF state. 1: Mosaic ON state. 0: Color ON state. 1: Color OFF state. Reserved. 0: 100% Negative OFF state. 1: 100% Negative ON state. 0: Screen Inversion OFF state. 1: Screen Inversion ON state. Reserved. Reserved.
  • Page 44 AE_MODE Explanation AUTO Exposure mode. IRIS MAN Exposure mode. AGC MAN Exposure mode. MANUAL Exposure mode. Read the current MWB_CTL data at the Hue White Balance Mode Read the current HUE point adjust data of the Camera at the Hue White Balance Mode. The return data is “MWB_CTL”.
  • Page 45 0xC5 0xAA 0x8A 0x00 SSC_CNT 0xXX 0xXX 0xXX C.S. Read the IRIS control data Read the current IRIS control value to control IRIS OPEN level. The data is “IRIS_CTL”. PC → Camera 0xC5 0xAA 0x8B 0x00 CAM_ID C.S. Camera → PC 0xC5 0xAA 0x8B 0x00 IRIS_CTL 0xXX 0xXX 0xXX C.S.
  • Page 46 Read the Digital Zoom Max Power Mode Read the current Max Power Digital Zoom Mode of the camera. The data is “DZ_MAX”. PC → Camera 0xC5 0xAA 0x8F 0x00 CAM_ID C.S. Camera → PC 0xC5 0xAA 0x8F 0x00 DZ_MAX 0xXX 0xXX 0xXX C.S. Caution: The data of this command is valid only when the Digital Zoom mode is ON.
  • Page 47 Internal Non Zoom Tracking PRESET Moving control Performs the Internal PRESET Moving action. When the camera receives this command, the zoom, focus, and digital zoom position is moved to the position memorized in the internal nonvolatile memory of the camera according to “INDEX” value. PC →...
  • Page 48 INDEX: The value for indicating the memory position to store the zoom, focus, and digital zoom position value. The range of this value is from 0x00 to 0x7F. Focusing Object Distance Setting Set the object distance range. PC → Camera 0xC5 0x58 Distance 0x00 CAM_ID C.S.
  • Page 49 Caution: This command is performed, when the focus mode is MANUAL or PUSH_AUTO. And is not performed during Zooming. PC → Camera 0xC5 0xAA 0x5E STEP CAM_ID C.S. Camera → PC 0xC5 0xAA 0x5E STEP 0x5E 0xXX 0xXX 0xXX C.S. STEP: The value specifying the step number to move the focus lens in the direction of NEAR.
  • Page 50 1. In case of INDEX = 0x00, the Camera ID Function OSD is not displayed. 2. In case of INDEX = 0x01, the Camera ID Function OSD is displayed. 3. In case of INDEX = every other value, No action is performed. Each Sub Menu Items Initialization Command.
  • Page 51 Zoom Tracking Mode Change Command This command changes the zoom tracking mode according to MODE. PC → Camera 0xC5 0xAA 0x9B MODE CAM_ID C.S. Camera → PC 0xC5 0xAA 0x9B MODE 0x9B 0xXX 0xXX 0xXX C.S. 1. In case of MODE = 0x00, the zoom tracking mode becomes MANUAL mode. 2.
  • Page 52 Wide Burst Function On/Off Control Command This command controls the wide burst function of the camera according to ONOFF. PC → Camera 0xC5 0xAA 0x9E ONOFF CAM_ID C.S. Camera → PC 0xC5 0xAA 0x9E ONOFF 0x9E 0xXX 0xXX 0xXX C.S. 1.
  • Page 53 Camera → PC 0xC5 0xAA 0xA6 B_Cont 0xA6 0xXX 0xXX 0xXX C.S. B_Cont: The value, which adjusts the blue control gain of the camera. Blue Control Gain Read Command This command reads the current blue gain of the camera. PC → Camera 0xC5 0xAA 0xA7 0x00 CAM_ID C.S.
  • Page 54 Distance: The index value, which indicates the current object distance range that the camera can be focused. 1. In case of Distance = “0x00”, the Focusing range = From 1 cm To infinite 2. In case of Distance = “0x01”, the Focusing range = From 10 cm To infinite 3.
  • Page 55 CHAR Character CHAR Character CHAR Character 0x00 ‘A’ 0x1A ‘a’ 0x34 ‘0’ 0x01 ‘B’ 0x1B ‘b’ 0x35 ‘1’ 0x02 ‘C’ 0x1C ‘c’ 0x36 ‘2’ 0x03 ‘D’ 0x1D ‘d’ 0x37 ‘3’ 0x04 ‘E’ 0x1E ‘e’ 0x38 ‘4’ 0x05 ‘F’ 0x1F ’f’ 0x39 ‘5’...
  • Page 56 INDEX: The index value to select whether or not to display the function OSD. ONOFF: The value, which indicates whether the selected function OSD is or not displayed. 1. In case of ONOFF = 0x00, the selected function OSD is not displayed on the screen. 2.
  • Page 57 Day & Night Explanation Mode 0x00 Camera’s Day & Night Control Mode becomes “Night Mode”. 0x01 Camera’s Day & Night Control Mode becomes “Day Mode”. Camera’s Day & Night Control Mode becomes “AE Mode”. 0x02 Camera toggle Day or Night Mode according to exposure of object. Camera’s Day &...

  • Page 58: Key Code Table

    9.3 Key Code Table Key Variable Description Code KN_NOT 0x00 No key function will operate. Perform Zoom Tracking to TELE side by slow speed. In case of displaying KN_TELE 0x01 the MENU, it operates as the “MENU selection scroll up“. Perform Zoom Tracking to TELE side by high speed.
  • Page 59 In the manual focus mode, move the Focus lens to “NEAR“ side slowly. In KN_R_NEAR 0x39 case of displaying the MENU, it operates as the “Increase the data of selected item in MENU“. According to Key selection mode, operate the key such as “AUTO/ KN_AM_P 0x3F MANUAL Toggle“...

  • Page 60: Specifications

    10. SPECIFICATIONS Image Device: Sony 1/4” Colour Ex View CCD Total Pixels No.: 795 (H) x 596 (V) 470K Effective Pixels No.: 752 (H) x 582 (V) 440K Resolution: 550 TVL S/N Ratio: More than 48 dB Lens Information: 3.6 to 126.0mm, Auto Iris, 35x Optical Zoom Min.
  • Page 61 MEMO...
  • Page 62 CCTV TECHNICAL SUPPORT: For Technical Support for any Xvision product please contact your local distributor. LIMITED WARRANTY: This product is supplied with a limited 1 Year warranty. The Warranty excludes products that have been misused, (including accidental damage) and damage caused by normal wear and tear.
