Summary of Contents for Winnebago Sunstar 26HE

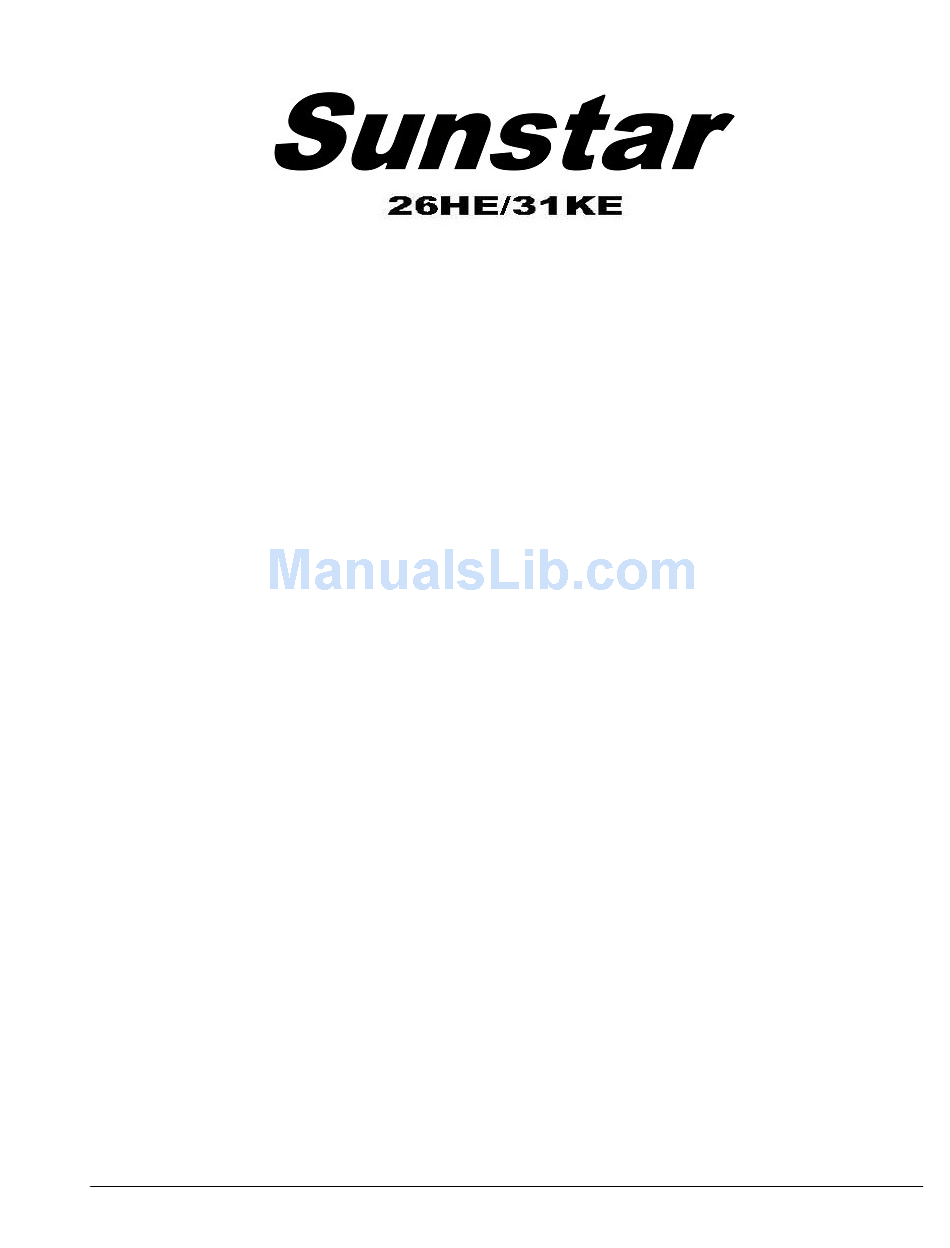

- Page 1 Rev. 1511150616 Part No. 161500-15-034 Copyright 2014 Winnebago Industries, Inc. All rights reserved.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 - INTRODUCTION About this Manual ..........................1-1 Safety Messages Used in this Manual ....................1-1 Pre-Delivery Inspection ........................1-2 Before Driving ..........................1-2 Front Axle Tire Alignment ....................... 1-2 Service and Assistance ........................1-2 Reporting Safety Defects ........................1-2 Occupant and Cargo Carrying Capacity Label ................. - Page 4 Table Of Contents Mirrors – Power Electric ........................3-5 Brake-Shift Interlock ........................3-5 Park Brake – Foot Pedal ........................3-6 Tow/Haul Transmission Mode ......................3-6 Map Light Switch ..........................3-6 Hazard Warning Flashers ........................3-6 Battery Boost Switch ........................3-6 Air Conditioner/Heater –...
- Page 5 Table Of Contents Electrical Outlets – House 120-Volt AC ..................6-4 Ground Fault Circuit Interrupter ....................... 6-4 Electrical Generator – 120-Volt ......................6-5 Electrical System – House 12-Volt DC .................... 6-6 House/Coach Battery Disconnect Switch ..................6-6 Battery Access ..........................6-7 Battery Care ............................
- Page 6 Table Of Contents Leveling System ..........................10-7 Checking Hydraulic Oil Level ......................10-8 11 - MAINTENANCE AND STORAGE Sealants – Inspection and General Information ................11-1 Roof ..............................11-1 Undercarriage ..........................11-1 Exterior Finish ..........................11-2 Exterior Graphic Care ........................11-3 Plastic Parts –...
-
Page 7: Introduction
The instructions included in this manual are intended as a guide, and in no way DANGER indicates a hazardous situation extend the responsibilities of Winnebago which, if not avoided, will result in death or Industries beyond the standard written serious personal injury. -
Page 8: Pre-Delivery Inspection
National Highway Traffic Safety Administration (NHTSA) in addition to notifying Winnebago Industries, Inc. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety... -
Page 9: Occupant And Cargo Carrying Capacity Label
However, NHTSA cannot become involved in individual problems between you, your dealer, or ® Winnebago Industries To contact NHTSA, you may either call the Vehicle Safety Hotline toll-free at: 1-888-327-4236; (TTY: 1-800-424-9153) or go to their website at http://www.safercar.gov... -
Page 10: Vehicle Certification Label
These pressure levels must be maintained to assure proper handling, safety, 2. Chassis manufacture date. and fuel economy. 3. Month and year of manufacture at Winnebago ® 9. Rear Axle Wheel Configuration: Single or Industries Dual as it relates to the inflation. -
Page 11: Specifications And Capacities
80 gal. Notes: All information is based upon the most recent data available. Visit the Winnebago Industries, Inc. web page – www.winnebagoind.com – for the most current product information. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit. -
Page 12: Owner And Vehicle Information
Motorhome Serial Number ___________________________________________________________ Chassis Vehicle Identification No. (VIN) ________________________________________________ Vehicle Mileage at Delivery __________________________________________________________ Selling Dealer Name ________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ ® YOUR WINNEBAGO INDUSTRIES DEALER /SERVICE CENTER Name ____________________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ Contact ____________________________________________Phone ________________________ CHASSIS SERVICE CENTER... -
Page 13: Safety And Precautions
SECTION 2 - SAFETY AND PRECAUTIONS GENERAL WARNINGS DRIVING SAFETY • Only seats equipped with seat belts are to be occupied while the vehicle is moving. WARNING • Make sure all passengers have seat belts fastened. Lap belts should fit low on the hips and upper thighs. -
Page 14: Fuel And Propane Gas
SECTION 2 - SAFETY AND PRECAUTIONS • Do not operate the cruise control on icy or extremely wet roads, winding roads, in heavy WARNING traffic, or in any other traffic situation where a constant speed cannot be maintained. • Use care when accelerating or decelerating on Propane gas containers, gasoline, or a slippery surface. -
Page 15: Propane Gas Leaks
SECTION 2 - SAFETY AND PRECAUTIONS DANGER DANGER Do not use gas cooking appliances for IF YOU SMELL PROPANE comfort heating. Can lead to carbon 1. Extinguish any open flames and all monoxide poisoning, which can lead to smoking materials. death or serious injury. -
Page 16: Carbon Monoxide Warning
RV application. We area. recommend obtaining a replacement from your ® Winnebago Industries dealer. CARBON MONOXIDE ALARM Further Information Your coach is equipped with a Carbon See the manufacturer’s user guide provided in... -
Page 17: Smoke Alarm
RV application. We injury. recommend obtaining a replacement from your ® Winnebago Industries dealer. Replacement Further Information When replacing this alarm, we recommend replacing only with the same model, or with one Please read the information provided by the that is also listed for RV application. -
Page 18: Fire Extinguisher
Extinguisher, the replacement must be the same weight rating for either axle. type and size as the one originally supplied in your coach. We recommend obtaining a replacement only from your Winnebago ® Industries dealer or a reliable RV parts supplier. -
Page 19: Maintenance
SECTION 2 - SAFETY AND PRECAUTIONS MAINTENANCE • Do not remove the radiator cap while engine and radiator are still hot. Always check coolant level visually at the see-through coolant reservoir. • Never get beneath a vehicle that is held up by a jack only. -
Page 20: Slideout Rooms
SECTION 2 - SAFETY AND PRECAUTIONS WARNING Keep all persons clear of the slideout room and moving parts while extending or retracting. Do not occupy the slideout room while it is being extended or retracted. Failure to observe can result in death or serious injury. -
Page 21: Mold, Moisture, And Your Motorhome
Winnebago Industries ® throughout the outdoor and indoor air. Because If Winnebago Industries determines that mold of the nature of the use of a motorhome, it is ® ® is present in the Winnebago... -
Page 22: Roadside Emergency
If Winnebago Industries determines that mold • When you have come to a stop, activate your is present due to conditions it determines is not a... -
Page 23: Jump Starting
SECTION 2 - SAFETY AND PRECAUTIONS JUMP STARTING If your coach will not start from the chassis battery, try using the Battery Boost switch to divert power from the house batteries to the starter. (See “Battery Boost Switch” in Section 3 - Driving Your Motorhome). -
Page 25: Driving Your Motorhome
The information in this section refers only to • Lift to features installed or adapted to the dash and Recline driver compartment area by Winnebago ® Industries . It also includes passenger seating in the living area of the coach. -
Page 26: Seat Belts
SECTION 3 - DRIVING YOUR MOTORHOME SEAT BELTS WARNING Seats intended for occupancy while the vehicle is in motion are equipped with seat belts for the protection of the driver and passengers. Snug and low belt positions are essential. This will ensure that the force exerted by Lap Belts the lap belt in a collision is spread over the The lap belts must be worn as low as possible... -
Page 27: Child Restraints
SECTION 3 - DRIVING YOUR MOTORHOME Tether Anchor Loop • Inspect the belts and hardware periodically. –If Equipped Check for cuts, frays, and loose parts. Damaged parts should be replaced. Do not If your coach has a dinette, it may be equipped remove or modify the belt system. -
Page 28: Passenger Workstation
SECTION 3 - DRIVING YOUR MOTORHOME Keys have an identification number, either a REARVIEW MONITOR SYSTEM small metal tag or stamped into the key head. These numbers are recorded on the vehicle’s –If Equipped component model/serial sheet, which is included Your coach may be equipped with a Rearview in your InfoCase. -
Page 29: Mirrors - Power Electric
SECTION 3 - DRIVING YOUR MOTORHOME Mirror Arm/Head Adjustment MIRRORS – POWER ELECTRIC If you cannot adjust a mirror properly using –If Equipped the control switch, the mirror may need a coarse Always adjust mirrors for maximum rear adjustment by rotating the mirror head. visibility before driving off. -
Page 30: Park Brake - Foot Pedal
SECTION 3 - DRIVING YOUR MOTORHOME PARK BRAKE – FOOT PEDAL ® Ford Chassis The park brake foot pedal and release lever are located beneath the left side of the dash. Step the pedal down fully to apply and pull the brake release knob to disengage. -
Page 31: Air Conditioner/Heater - Automotive (Dash)
SECTION 3 - DRIVING YOUR MOTORHOME Further Information NOTE: The House/Coach Battery Disconnect switch near the entrance door must be See the manufacturer’s user guide provided in ON and house batteries must be your InfoCase for complete operating sufficiently charged for this feature to instructions. -
Page 32: Radio - In-Dash
SECTION 3 - DRIVING YOUR MOTORHOME RADIO – IN-DASH –If Equipped Further Information Basic Operating Instructions Please refer to the manufacturer’s operating guide in your InfoCase for detailed instructions • (1) RESET - Press to reset the on programming preset station buttons and using microprocessor. - Page 33 SECTION 3 - DRIVING YOUR MOTORHOME USB Cable by house batteries. If the House/Coach Battery Disconnect switch is OFF, the –If Equipped speakers will not emit sound. Your coach may be equipped with a cable to connect your USB to play through your radio. The USB cable is located on the dash beverage tray.
- Page 34 SECTION 3 - DRIVING YOUR MOTORHOME See the receiver manufacturer’s information in your InfoCase for programming and operating instructions. USB Cable –If Equipped Your coach may be equipped with a cable to connect your USB to play through your radio. The USB cable is located on the dash beverage tray.
-
Page 35: Front Service Access
SECTION 3 - DRIVING YOUR MOTORHOME NOTE:The House/Coach Battery Disconnect switch must be ON while listening to the dash radio, as the audio relay is powered by house batteries. If the House/Coach Battery Disconnect switch is OFF, the speakers will not emit sound. (Lift up the latches on each side of interior hood and raise) -Typical View... -
Page 36: Engine Access - Interior
SECTION 3 - DRIVING YOUR MOTORHOME To Open Hood Locks • To remove the engine cover, insert the supplied hex wrench into the hole (located on –If Equipped the top center or the front edge of the engine Unlock front Hood Locks with the provided cover, depending on model). -
Page 37: Engine Cooling System
SECTION 3 - DRIVING YOUR MOTORHOME topped up with the same type of coolant as equipped to maintain the special long- life properties. NOTICE When refilling the coolant system of a vehicle equipped with a rear auxiliary automotive heater and motoraid water heater, be sure to allow for additional -Typical View coolant capacity of the heater and its... -
Page 38: Lights
SECTION 3 - DRIVING YOUR MOTORHOME Any excessive or abnormal tire wear may The circuit breakers will pop outward if they indicate worn or misaligned suspension or are tripped. Simply push in to reset. Always steering, unbalanced tire, or other tire/suspension replace plug-in blade fuses with ones of the same problem. -
Page 39: Appliances And Systems
SECTION 4 - APPLIANCES AND SYSTEMS The appliances installed in your motorhome are manufactured by reputable RV appliance makers and have been tested by independent laboratories to meet all applicable standards and codes set for RV appliances. See Section 2 - Safety and Precautions of this manual for any safety and precautions you need to take regarding the operation of your appliances. -
Page 40: Refrigerator Service Access Compartment
SECTION 4 - APPLIANCES AND SYSTEMS To Open 1. Use a screwdriver or coin to turn the latch knobs to the vertical position as shown. • CLOSED • Gas- Refrigerator will operate on gas from the propane tank if the main valve is open and the tank contains gas. -
Page 41: Avoiding Asphyxiation
SECTION 4 - APPLIANCES AND SYSTEMS Avoiding Asphyxiation The Range and optional Oven in your motorhome operate on propane gas and will The following warning label has been located provide most of the functions of the range in your in the cooking area to remind you to provide an home. -
Page 42: Microwave Oven
SECTION 4 - APPLIANCES AND SYSTEMS Further Information See the manufacturer’s user guide provided in WARNING your InfoCase for instructions on replacement of light bulbs and replacement or cleaning of grease filter elements. Portable fuel-burning equipment including wood and charcoal grills and SYSTEMS MONITOR PANEL stoves, shall not be used inside the recreational vehicle. -
Page 43: Water Heater - Gas
SECTION 4 - APPLIANCES AND SYSTEMS The approximate fluid levels are measured by • Yellow - marginal charge. electronic sensors on the sides of the tanks. There • Red - battery needs charging before use. is generally more fluid in a tank than indicated on To get an accurate reading: the monitor panel. -
Page 44: Pressure-Temperature Relief Valve
SECTION 4 - APPLIANCES AND SYSTEMS To fill the Water Heater, turn the Water Pump switch ON and open a hot water faucet anywhere in the coach. When water begins to flow steadily from the faucet, the Water Heater is full. Propane Gas Operation •... -
Page 45: Furnace - Propane Gas
SECTION 4 - APPLIANCES AND SYSTEMS 2. Move SYSTEM switch from Off to Heat and set the desired temperature using the Temp Selector slider. 3. Furnace fan should start to blow immediately after setting the thermostat. 4. After about 30 seconds, the furnace burner should light. -
Page 46: Ducted Roof Air Conditioning System
SECTION 4 - APPLIANCES AND SYSTEMS DUCTED ROOF AIR CONDITIONING SYSTEM The furnace thermostat also controls ducted roof air conditioner operation when the Thermostat switch is placed in “Cool” position. All cooling functions controlling to setpoint have a short cycle protection time delay of three minutes. -
Page 47: Propane Gas
SECTION 5 - PROPANE GAS PROPANE GAS SUPPLY Tank Gauge & Tank Fill Overflow Sender The propane gas system supplies fuel for the Valve Valve gas range/oven, water heater, furnace, and refrigerator (while in gas mode). When used and handled properly, this system is safe and economical and provides modern living conveniences wherever you travel. -
Page 48: Safe Use Of The Propane Gas System
SECTION 5 - PROPANE GAS propane gas outlets in the United States do not offer any other type of liquefied petroleum gas WARNING than propane to the general public.) Check local phone directory yellow pages for locations of local propane gas refilling stations or bulk Do not fill propane container(s) to more dealerships. -
Page 49: Propane Gas Warnings And Precautions
SECTION 5 - PROPANE GAS Here are a few precautions to observe that will PROPANE GAS WARNINGS help you to use the propane gas system safely: AND PRECAUTIONS • Exercise caution at all times. Be familiar with the distinctive odor of propane gas. If a leak is It is illegal for vehicles equipped with propane suspected, turn off the supply valve container to travel on certain roadways or... -
Page 50: Propane Gas Pressure Regulator
SECTION 5 - PROPANE GAS WARNING WARNING Do not place propane cylinders inside the Visually inspect the pressure regulator vehicle. vent periodically for blockage by Propane cylinders are equipped with accumulated debris or insect nests, etc. safety devices that relieve excessive Vent obstruction could result in excessive pressure by discharging propane to the pressure causing fire or explosion, which... -
Page 51: Propane Vaporization In Cold Weather
SECTION 5 - PROPANE GAS This means that in extremely cold weather when a large volume of gas is being used by the furnace for heating, it is possible to experience a loss of gas pressure. At first, this problem may appear to be caused by an empty tank or a regulator freeze-up, but is actually caused by failure of the liquid gas to vaporize as fast as it is needed by the furnace. -
Page 53: Electrical
SECTION 6 - ELECTRICAL Your coach is equipped with an electrical the power converter automatically changes a system consisting of two separate voltages: portion of the 120-volt current to 12-volt DC current. All equipment in the motorhome that is • 12-volt DC system (battery current);... -
Page 54: Connecting The Power Cord
SECTION 6 - ELECTRICAL be used is designed to mate with the prongs of the 8. Rotate the cover to the largest hole to pass the power cord plug, the electrical connection can be cord end through. expected to carry rated load. Connecting the Power Cord To connect to an external source, remove the cord from the utility compartment and plug it into... -
Page 55: Power Center
SECTION 6 - ELECTRICAL vehicle from electrical damage. If electrical power fails, contact the park attendants and have NOTICE them check the fuse or breaker for your supply receptacle. Do not block the converter cover vents in POWER CENTER any way. The converter generates heat while operating and needs unrestricted (Converter) airflow for proper cooling. -
Page 56: Circuit Breakers - House 120-Volt Ac
SECTION 6 - ELECTRICAL reset, take immediate steps to correct the cause of ELECTRICAL OUTLETS – overheating. A portion of the house 12-volt load HOUSE 120-VOLT AC (lights or motors or both) should be turned off to reduce total load. Also, inspect the power A number of standard household electrical converter to ensure ventilation is not obstructed. -
Page 57: Electrical Generator - 120-Volt
SECTION 6 - ELECTRICAL WARNING WARNING The GFCI will not completely eliminate Do not plug the power cord into the the risk of electrical shock. Infants and generator receptacle while the generator small children may still be affected. is running. Electrical shock can cause personal injury. -
Page 58: Electrical System - House 12-Volt Dc
SECTION 6 - ELECTRICAL 1. Do not simultaneously operate the generator and will withstand the frequent drain-and- and a power vent, which could draw exhaust recharge cycles that occur under the demanding gases into the vehicle. conditions of a camping outing. 2. -
Page 59: Battery Access
SECTION 6 - ELECTRICAL House Chassis House/Coach Battery Disconnect Switch Batteries Battery (Located near entrance door) -Typical View -Typical View CAUTION BATTERY ACCESS The house/coach batteries (and chassis Step cover must be closed and latched. batteries in certain models) are located beneath Failure can cause injury. - Page 60 SECTION 6 - ELECTRICAL The two best defenses against sulfating Further precautions are: and insufficient charge are to: • Check the state of charge periodically to avoid discharge or sulfating. 1. Turn off the House/Coach Battery Disconnect switch to avoid parasitic discharge (the trickle To ensure that the battery will always accept discharge caused by directly connected and hold a charge, follow these simple...
-
Page 61: Circuit Breakers And Fuses - House 12-Volt Dc
Chassis Battery If your coach is going to be unoccupied for ® two weeks or more, Winnebago Industries recommends disconnecting the chassis battery in your coach to avoid battery discharge. Functional Non-Functional Disconnect the ground cable on the chassis... - Page 62 SECTION 6 - ELECTRICAL Automotive Chassis and House 12-Volt Circuit Breakers (Located inside passenger compartment) -Typical View 6-10...
-
Page 63: Plumbing
SECTION 7 - PLUMBING The tank is filled through the City Water FRESH WATER SYSTEM Connection (Fresh Water Inlet) located inside the water service center. The Fresh Water System provides water to the galley sink, shower, bathroom lavatory, toilet, The Fresh Water valve routes the water from and water heater. -
Page 64: Water Pump
SECTION 7 - PLUMBING 4. Use the level display on the monitor panel to NOTE: Always keep the Fresh Water valve in oversee filling of the tank, or when the tank is Normal position unless you are filling the full, water will flow from tank vent tube tank. -
Page 65: Water Pump Switch
SECTION 7 - PLUMBING Pump system. Thereafter, remember to slow leak in a faucet could drain the water tank, check it at least yearly, and be sure to fill the holding tank, and discharge the house empty water from it during winterization batteries. -
Page 66: Disinfecting Your Fresh Water System
SECTION 7 - PLUMBING 1. Remove the filter cartridge and pour 1/2 cup DISINFECTING YOUR FRESH of household chlorine bleach (sodium WATER SYSTEM hypochlorite solution) for each 30 gallons of tank capacity into the empty filter canister, ® (As required by NFPA 1192 Standard on then screw the canister back onto the filter Recreational Vehicles) -
Page 67: Shower Hose Vacuum Breaker
SECTION 7 - PLUMBING ppm chlorine concentration should be activated carbon water purifier at the galley allowed to stand in the system for at least 1 sink cold waterline or a separate drinking hour). water faucet with filter (if equipped). 4. -
Page 68: Drainage System (P-Traps)
SECTION 7 - PLUMBING • Don’t put automotive antifreeze or caustic chemicals, such as laundry bleach or heavy detergents into the toilet or holding tank. Sewage Drain Outlet/ These products may damage plastic or rubber Dust Cap parts in the system. Further Information See the toilet manufacturer’s operation information in your InfoCase for complete... -
Page 69: Waterline & Tank Drain Valves
SECTION 7 - PLUMBING • 1st - Pull Black Waste Tank WARNING Drain Valve to drain Black Water Service inlet access must be closed when (sewage) utility connections are not in use. Tank, then close. When using a sewer hook-up, keep the dump valves closed until a tank becomes full or when preparing to leave the site. -
Page 70: Water Heater Bypass And Antifreeze Siphon Valves
SECTION 7 - PLUMBING Refer to the “Water System Drain Valve Locations” chart at the end of this section for D R A I N D R A I N locations on your model. C L O S E C L O S E L I N E - E N D V A L V E I N - L I N E... - Page 71 Then use a compressed air hose regulated to 30 psi or less to force air through the system. A blow-out plug can be purchased ® ® at any Winnebago or Itasca dealer. Water Heater Drain Plug (Remove with socket)
- Page 72 SECTION 7 - PLUMBING Method 2 – Antifreeze Fill 9. Turn air pressure off. Disconnect water purge adapters. Recap the city water inlet to Procedure avoid contamination by dirt or insects. (Fill plumbing lines with RV water system antifreeze) After Disconnecting Air Pressure 10.
- Page 73 SECTION 7 - PLUMBING NOTE: Ensure that all drain valves are CLOSED before pumping RV antifreeze into the water system. Refer to the “Water System Drain Valve Locations” chart at the end of this section for valve locations on your model.
- Page 74 SECTION 7 - PLUMBING Fill Drainage System P-Traps 14. Pour about one cup of RV antifreeze down each drain for the galley sink, lavatory sink, and shower/tub. This fills the drain trap pipes to prevent holding tank odors from entering the coach during storage.
-
Page 75: Water System Drain Valve Locations
SECTION 7 - PLUMBING WATER SYSTEM DRAIN VALVE LOCATIONS Model System Drain Valve Locations Model 26HE Waterlines • Two (2) in-line drain valves located behind the service panel in the water service center and one (1) valve located in passenger side compartment behind rear axle). -
Page 77: Entertainment
SECTION 8 - ENTERTAINMENT Operating the Digital Antenna FRONT TV IGNITION SWITCH 1. Turn the Digital Antenna Power Switch ON. INTERLOCK –If Equipped If your coach is equipped with a front overhead TV, it is plugged into a special electrical outlet with a built-in ignition switch interlock. -
Page 78: Tv Signal Amplifier
SECTION 8 - ENTERTAINMENT NOTE: LED lights will illuminate from left to CABLE TV CONNECTION right. All LED lights may not illuminate, depending on signal strength. Your coach is equipped with a cable television 5. Rotate Attenuator Dial COUNTER- input connection (located in the water service CLOCKWISE until the last illuminated LED center) for your convenience. -
Page 79: Furniture And Softgoods
SECTION 9 - FURNITURE AND SOFTGOODS LOUNGE CHAIR – SWIVEL –If Equipped (Typical View – Your coach may differ in appearance) This chair is not equipped with a seat belt and is not intended for seating while the vehicle is in motion. - Page 80 SECTION 9 - FURNITURE AND SOFTGOODS Dinette to Bed 4. Release the catch on the table leg brace and fold the leg up against the bottom of the table. 1. Remove both dinette back cushions and set aside. Table Leg Catch 5.
-
Page 81: U-Shaped Dinette/Bed Conversion
SECTION 9 - FURNITURE AND SOFTGOODS Bed to Dinette Reverse steps to convert back into dinette seating. Once the table is reattached onto the wall support, make sure the table leg is secured into 2. Pull the table leg tubes from the floor or table the floor support bracket and the leg brace is sockets and store beneath dinette seat. -
Page 82: Sofa/Bed Conversion
SECTION 9 - FURNITURE AND SOFTGOODS Bed to Sofa SOFA/BED CONVERSION • Push the front edge of the sofa seat toward the –If Equipped wall while lifting upward on the backrest until (Typical View – Your coach may differ in the sofa is fully seated against the wall and appearance) security latch “clicks”... -
Page 83: Power Loft Bed
SECTION 9 - FURNITURE AND SOFTGOODS 3. Grasp the mattress and bunk board then pull down. 4. The bed is now ready for use. To lower the Loft Bed for use NOTE: This low bunk design may be accessed 1. Unfasten the safety belt. without the use of a ladder. - Page 84 SECTION 9 - FURNITURE AND SOFTGOODS WARNING Keep people away from operating mechanism and pinch hazard areas during use. Failure to do so could cause injury. • The bed is now ready for use. To access the Loft Bed see “Loft Bed Ladder” later in this section.
- Page 85 SECTION 9 - FURNITURE AND SOFTGOODS 5. Turn the key (located on the right sidewall behind the passenger seat) to the “OFF” Manual Retraction of Loft Bed position. If the Power Loft Bed is malfunctioning you may need to manually retract the loft bed. 1.
- Page 86 SECTION 9 - FURNITURE AND SOFTGOODS To Use the Loft Bed Ladder 1. Lift ladder horizontally. CAUTION 2. Slide C-shaped retainer ends at the top of ladder onto brackets at rear edge of the Loft To avoid injury, never use the loft bed Bed.
-
Page 87: Roller Shades
CABINETRY –If Equipped People are drawn to the natural beauty of ® wood. At Winnebago Industries , our craftsmen work with the art found in each piece of wood to create cabinets of superior quality, backed by the Winnebago Industries warranty. - Page 88 SECTION 9 - FURNITURE AND SOFTGOODS light. Color differences or changes in wood can also be caused by exposure to harsh chemicals, extreme heat, or other contributing external conditions. Any color change that occurs in both the finish and the wood is considered part of the natural aging process and is not to be considered defect or damage.
-
Page 89: Slideout Rooms And Leveling
The park brake must be applied Your motorhome may have more than for the room(s) to run. Winnebago recommends one slideout room. Understand which running the engine whenever you run the slideout... - Page 90 SECTION 10 - SLIDEOUT ROOMS AND LEVELING Extend Procedure: See “Before Extending!” before proceeding. CAUTION • Engage the parking brake. • Start the engine so the alternator can provide Never drive the vehicle with a slideout maximum power for proper operation of room extended! slideout mechanisms.
-
Page 91: Slideout Room - Extreme Weather Precaution
SECTION 10 - SLIDEOUT ROOMS AND LEVELING NOTICE Because the slideout roof is drawn into the interior of the coach when retracted, be sure there is no debris, such as excessive dirt, tree seeds, twigs, leaves, etc. on the roof before retracting. Slideout Cover-Awning Retract Procedure: -Typical View... -
Page 92: Slideout Emergency Retraction (Lippert)
SECTION 10 - SLIDEOUT ROOMS AND LEVELING • (8) - HALL SIGNAL NOT PRESENT. • Status • Motor • Mode Encoder is not providing a signal. This is LED’s Direction Button usually a wiring problem. • (9) - HALL POWER SHORT TO GROUND. - Page 93 SECTION 10 - SLIDEOUT ROOMS AND LEVELING There are two slideout motors equipped on the end wall of each slideout room. Pull back wipe seal to access motors. NOTE: Use caution when removing components on painted units. Push-In Procedure 1. Using a razor blade, remove sealant from the top of screw cover.
-
Page 94: General Slideout Care
SECTION 10 - SLIDEOUT ROOMS AND LEVELING 7. When the slideout room is fully retracted, secure the room with a support item (e.g. 2x4 wood board) above the interior slideout room to secure room during travel. NOTE: For larger slideout rooms, place a travel support item on each end of the interior slideout room. -
Page 95: Leveling System
SECTION 10 - SLIDEOUT ROOMS AND LEVELING Slideout Room Seal Care and while in PARK, raising either one or both of the rear wheels off the ground could Maintenance allow the vehicle to roll off the jacks. While most household cleaners work well for cleaning slideout room seals, certain chemical agents may cause the seals to degrade. -
Page 96: Checking Hydraulic Oil Level
SECTION 10 - SLIDEOUT ROOMS AND LEVELING briefly and a chime will sound when the ignition 2. Turn the Leveling System Power switch ON, key is turned to the On or Run positions if the use the arrow “Down” button and select “Auto jacks are down. - Page 97 SECTION 10 - SLIDEOUT ROOMS AND LEVELING of debris and contamination of hydraulic oil in the reservoir, which could lead to pump failure or other problems. Breather/Fill Cap Hydraulic Oil Reservoir (Located behind driver side front tire) -Typical View NOTE: Only fill the hydraulic reservoir with the jacks in the retracted (UP) position.
-
Page 99: Maintenance And Storage
• Have the sealant replaced if you notice any of attention. Delaying these repairs may allow water the above. Your local Winnebago Industries leakage and result in damage to interior ceiling dealer has the correct and necessary parts and and body panels, upholstery, etc., which is not experience to help you maintain your sealants. -
Page 100: Exterior Finish
SECTION 11 - MAINTENANCE AND STORAGE weight to the vehicle. This, in effect, reduces the • Wash with cool water out of direct sunlight amount of cargo you can carry and remain within using a mild liquid soap (any “no-tears” baby GVWR and GAWR limits. -
Page 101: Exterior Graphic Care
SECTION 11 - MAINTENANCE AND STORAGE If the finish begins to look dull or discolored, • Wash graphics with plain soap and water or it may need to be cleaned with a polishing or any car wash detergent. Rinse thoroughly. cleaning compound formulated for gel-coated •... -
Page 102: Exterior Lights
EXTERIOR LIGHTS motorhome is parked for an extended ® period of time. Most Winnebago Industries vehicles have polycarbonate lenses on exterior lamps, which are very sensitive to a variety of chemical solvents and cleaners. -
Page 103: General Stains
SECTION 11 - MAINTENANCE AND STORAGE WARNING When cleaning upholstery and fabric, do not use lacquer thinner, nail polish remover, laundry soaps, or bleach. Never use carbon tetrachloride, gasoline, or naphthalene for any cleaning purpose. These materials may cause damage to the material being cleaned and most are highly flammable, posing risk of injury due to fire. -
Page 104: Ceiling Fabric Care
SECTION 11 - MAINTENANCE AND STORAGE Most commercially available carpet and CEILING FABRIC CARE upholstery cleaners will do an excellent job removing stains. From time to time, additional –If Equipped cleaning methods may need to be used to remove While using your coach, your ceiling fabric stubborn or difficult stains. -
Page 105: Cabinetry - Cleaning
SECTION 11 - MAINTENANCE AND STORAGE You may have to repeat this procedure more GALLEY SINK than once to achieve desired results. Finish up with clean water, using the same method, and Acrylic blot dry. Care and Cleaning Instructions Steam cleaning is also an option. Again, take The galley sink has been designed and care not to over-saturate the material. -
Page 106: Range And Refrigerator
SECTION 11 - MAINTENANCE AND STORAGE • Remove spills immediately with a damp RANGE AND REFRIGERATOR cloth, followed by rinsing with clean water. For care and appearance maintenance of the • The use of stiletto heels is not recommended, range and refrigerator, refer to the appliance as they may cause permanent damage to the manufacturer’s operation and maintenance flooring. -
Page 107: Bathroom
SECTION 11 - MAINTENANCE AND STORAGE 4. Clean and defrost the refrigerator. Prop the BATHROOM door open slightly to allow any odors to dissipate. Place an open box of baking soda Toilet inside the refrigerator to help absorb odors. For instructions on the care of your toilet, refer 5. -
Page 108: Vehicle Storage - Removal
SECTION 11 - MAINTENANCE AND STORAGE If you are storing your vehicle through the or cracks that may have appeared around the winter, or in cold climates, extra preparations window frames, vents, and any other joints. must be made to protect equipment and systems See Sealants –... -
Page 109: Coach Maintenance Chart
SECTION 11 - MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Propane Gas System ... - Page 110 SECTION 11 - MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Safety Equipment Check operation of the following items: ...
-
Page 111: Miscellaneous
SECTION 11 - MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Sealants ... -
Page 113: Loading The Vehicle
SECTION 12 - MISCELLANEOUS NOTE: We recommend that you dump all LOADING THE VEHICLE holding tanks before traveling to avoid carrying unnecessary weight. NOTE: Your motorhome’s load capacity is designated by weight, not by volume, so you cannot necessarily use all available WARNING space when loading your motorhome. - Page 114 SECTION 12 - MISCELLANEOUS Corner Weighing (Side-to-Side) You will first drive only your front wheels onto the scale pad, then drive ahead so that the The most accurate method of weighing a whole vehicle is on the scale, then finally pull off motorhome is to weigh each “corner”...
-
Page 115: Car Or Trailer Towing
SECTION 12 - MISCELLANEOUS axle is 12,000 lbs., then the load on each rear dual listed Gross Weight Ratings. See “Vehicle set (left rear duals or right rear duals) should not Certification Label” in the Introduction section exceed 6,000 lbs. for information on gross weight ratings. -
Page 116: Trailer Wiring Connector
SECTION 12 - MISCELLANEOUS located outside our recommended limits) places The following diagram shows proper excessive stress on the hitch. This abuse of the connection of trailer or tow vehicle wiring to the ball mount and the hitch may cause premature coach light system. -
Page 117: Step (Entry) - Electric
(hinge side) of independent of towing vehicle ratings.) the screen door. ® NOTE: Some Winnebago Industries models equipped with a Class 3 hitch may have a label limiting vertical tongue load to 350 lbs. All Winnebago Industries models 12-5... -
Page 118: Windows
SECTION 12 - MISCELLANEOUS Automatic Mode - Entry Step This feature is intended to prevent injury or damage by an extended step while the vehicle is Switch ON moving. (Step Operates with Door) With the Step switch in the ON position, the Further Information step is in Automatic Mode. -
Page 119: Awning - Power
SECTION 12 - MISCELLANEOUS AWNING – POWER –If Equipped The Power Awning switch is located on the control panel just inside the entrance door. -Typical View Vertical Slider Windows Vertical windows have spring-loaded catches on both sides of the window that pop out to hold Power Awning Switch the window in its fully raised position. -
Page 120: Storage Compartment Doors
SECTION 12 - MISCELLANEOUS Further Information Minimize moisture released inside the coach For complete operating instructions, features, Run the range hood fan while cooking and safety precautions, and maintenance care, refer to open a bath vent while bathing or showering to the Awning manufacturer’s user guide provided carry water vapor out of the coach. - Page 121 INDEX About this Manual ..........................1-1 Air Conditioner Filter ..........................4-8 Air Conditioner/Heater – Automotive (Dash) ..................3-7 Awning – Power ........................... 12-7 Bathroom .............................. 11-9 Battery Access ............................6-7 Battery Boost Switch ..........................3-6 Battery Care ............................6-7 Before Driving ............................1-2 Brake-Shift Interlock ..........................
- Page 122 Index Engine Access – Interior ........................3-12 Engine Cooling System ........................3-13 Engine Overheat ............................ 2-11 Exterior Finish ............................11-2 Exterior Graphic Care ........................... 11-3 Exterior Lights ............................11-4 Fire Extinguisher ............................. 2-6 Formaldehyde Information ........................2-8 Fresh Water System ..........................7-1 Front Axle Tire Alignment ........................
- Page 123 Index Pressure-Temperature Relief Valve ......................4-6 Propane Gas Leak Detector ........................2-3 Propane Gas Leaks ..........................2-3 Propane Gas Pressure Regulator ......................5-4 Propane Gas Supply ..........................5-1 Propane Gas Warnings and Precautions ....................5-3 Propane Vaporization in Cold Weather ....................5-5 Radio –...
- Page 124 Index Suspension Alignment and Tire Balance ....................3-13 Systems Monitor Panel ........................... 4-4 Tables and Countertops ........................11-7 Tires ..............................3-13 Toilet ............................... 7-5 Tow/Haul Transmission Mode ....................... 3-6 Towing Guidelines ..........................12-4 Trailer Wiring Connector ........................12-4 TV Antenna – Digital ..........................8-1 TV Signal Amplifier ..........................
