Quick Start Guide

This quick start guide describes how to install and use the Gigabit Ethernet media converter. The
converter introduced here provides one channel media conversion solution.

Physical Description

Product Overview
This Gigabit Ethernet media converter is a plug-and-play device. Connect the supplied AC to DC power
adaptor to the receptacle on the front panel of the Gigabit Ethernet media converter, and then attach
the plug into a standard AC outlet.
DIP Switch
No.
Down
1
Disable LFPT
2
Enable Auto-Negotiation for TX port
3
TX port Force mode: Full-duplex
4
TX port Force mode: 100Mbps
5
Function reserved
6
Function reserved
<Note> LFPT: Link-Fault-Pass-Through function. Power must be off/on after re-setting LFPT function.
The 10/100/1000Base-TX and 1000Base-SX/LX/BX Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of
10/100/1000Base-TX port.
The 1000Base-SX/LX Connections
The fiber port pinouts
The Tx (transmit) port of device I is connected to the
Rx (receive) port of device II, and the Rx (receive)
port of device I to the Tx (transmit) port of device II.
User's Manual
Gigabit Ethernet Media Converter
Up
Enable LFPT
Enable Force mode for TX port
TX port Force mode: Half-duplex
TX port Force mode: 10Mbps
Function reserved
Function reserved
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL2326L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EtherWAN EL2326L

Summary of Contents for EtherWAN EL2326L

  • Page 1: Quick Start Guide

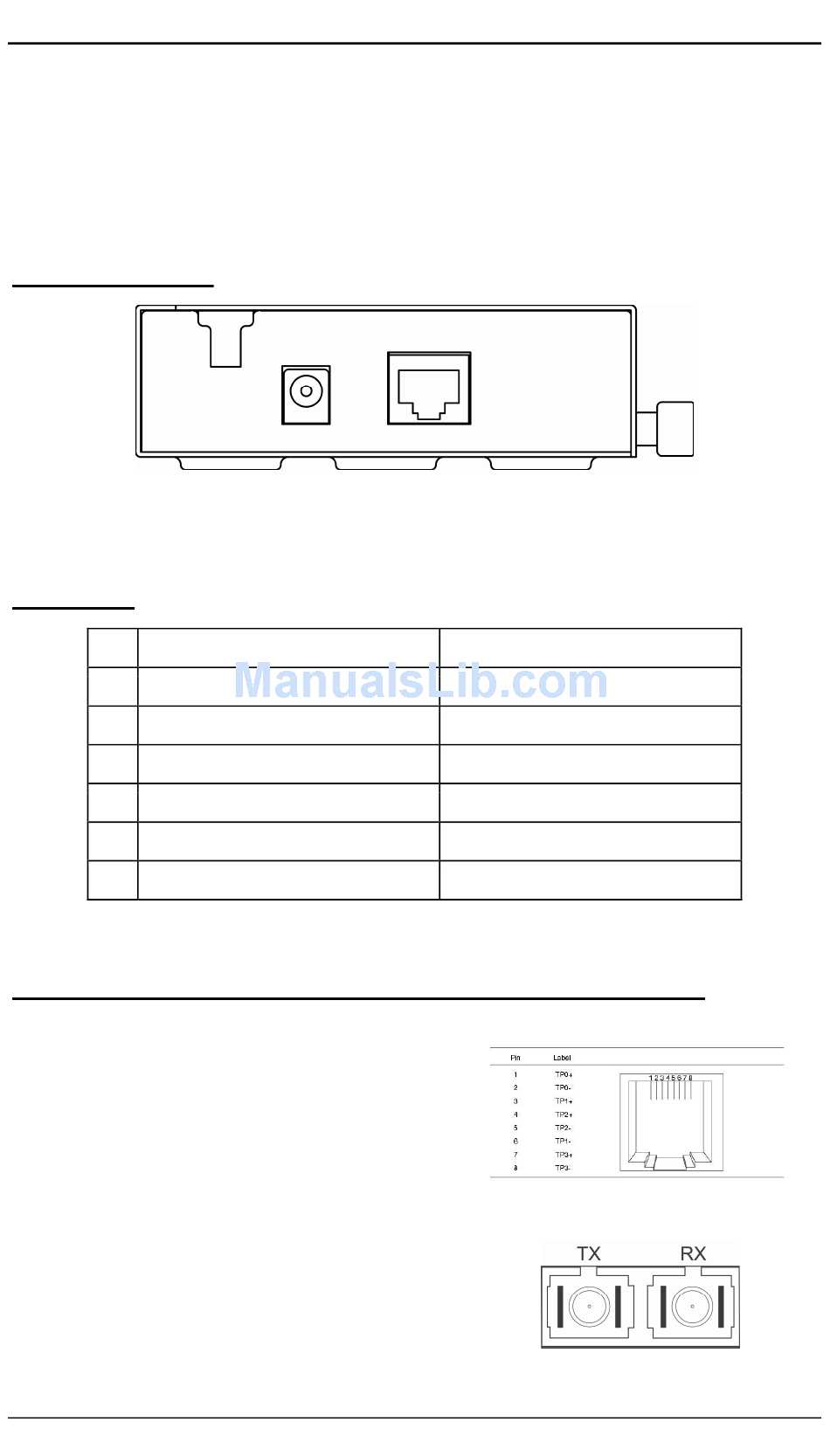

    Gigabit Ethernet Media Converter Quick Start Guide This quick start guide describes how to install and use the Gigabit Ethernet media converter. The converter introduced here provides one channel media conversion solution. Physical Description Product Overview This Gigabit Ethernet media converter is a plug-and-play device. Connect the supplied AC to DC power adaptor to the receptacle on the front panel of the Gigabit Ethernet media converter, and then attach the plug into a standard AC outlet.
  • Page 2 Gigabit Ethernet Media Converter The WDM 1000Base-BX Connections The fiber port pinouts Only one optical fiber is required to transmit and receive data. The Port Status LEDs LEDs State Indication POWER Steady Power on Power off SPEED Steady Green: Connection at the speed of 1000Mbps (TX Port Amber: Connection at the speed of 100Mbps 10/100/1000Mbps) Off...

  • Page 3: Functional Description

    Gigabit Ethernet Media Converter Functional Description Complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, and IEEE802.3z 1000Base-SX/LX. Supports IEEE802.3x Flow control: Flow control for Full-duplex and Back pressure for Half-duplex. DIP switch configuration for “Link-Fault-Pass-Through”. One fiber interface supports 1000Base-SX/LX/BX fiber transmission. Gigabit transmission supports 9K Bytes jumbo frame.

  • Page 4: Fcc Statement

    Gigabit Ethernet Media Converter FCC Statement The FCC (Federal Communications Commission) restricts the amount of radio frequency emission and radiation coming from computer equipment. The equipment introduced in this manual has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules.

  • Page 5: Table Of Contents

    Gigabit Ethernet Media Converter Table of Contents ....................1 UICK TART UIDE ................. 1 HYSICAL ESCRIPTION ..............3 UNCTIONAL ESCRIPTION FCC S ....................4 TATEMENT ......................4 RADEMARKS ........................4 REFACE ..................... 5 ABLE OF ONTENTS ....................... 6 NTRODUCTION ................6 RODUCT VERVIEW ................

  • Page 6: Introduction

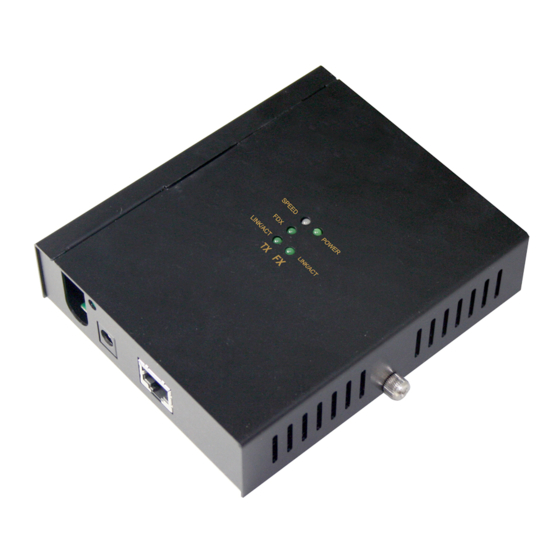

    Gigabit Ethernet Media Converter Introduction The Gigabit Ethernet Media Converter provides one channel for media conversion between 10/100/1000Base-TX to 1000Base-SX/LX/BX with link-fault-pass-through function. Product Overview Figure 1: Gigabit Ethernet Media Converter with link-fault-pass-through function Product Features Complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, and IEEE802.3z 1000Base-SX/LX.

  • Page 7: Packing List

    Gigabit Ethernet Media Converter Packing List When you unpack this product package, you will find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. The Media Converter User’s Manual AC to DC Power Adaptor User’s Manual...

  • Page 8: One-Channel Media Converter

    Gigabit Ethernet Media Converter One-Channel Media Converter Physical Ports Gigabit Ethernet Media Converter This converter provides one 10/100/1000Base-TX port and one 1000Base-SX/LX/BX fiber port. For the 1000Base-SX/LX/BX fiber port, provides options multi-mode/single-mode multi-mode/single-mode fiber. For the 10/100/1000Base-TX port, it uses RJ-45 connector and supports auto MDIX for uplink purpose.
  • Page 9 Gigabit Ethernet Media Converter LEDs State Indication POWER Steady Power on Power off SPEED Steady Green: Connection at the speed of 1000Mbps (TX Port Amber: Connection at the speed of 100Mbps 10/100/1000Mbps) Off Connection at the speed of 10Mbps LNK/ACT Steady A valid network connection is established on TX port (TX)

  • Page 10: Installation

    Gigabit Ethernet Media Converter Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: The ambient temperature should be between 23 and 131 degrees Fahrenheit (-5 to 55 degrees Celsius).
  • Page 11 Gigabit Ethernet Media Converter Route the fiber cable. Bend the board of cable outlet hole. User’s Manual...

  • Page 12: Connecting To Power

    Gigabit Ethernet Media Converter Cable ties. Connecting to Power This Converter is a plug-and-play device. Connect the supplied AC to DC power adapter to the receptacle on the front panel of the converter. Attach the plug into a standard AC outlet. User’s Manual...

  • Page 13: Specifications

    Gigabit Ethernet Media Converter Specifications Applicable Standards IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Fixed Ports 10/100/1000Base-TX to 1 10/100/1000Base-TX port 1000Base-SX/LX/BX: 1 1000Base-SX/LX/BX port Speed 10Base-T 10/20Mbps for half/full-duplex 100Base-TX 100/200Mbps for half/full-duplex 1000Base-T 2000Mbps for full-duplex 1000Base-SX/LX/BX 2000Mbps for full-duplex Forwarding rate 14,880pps for 10Mbps...
