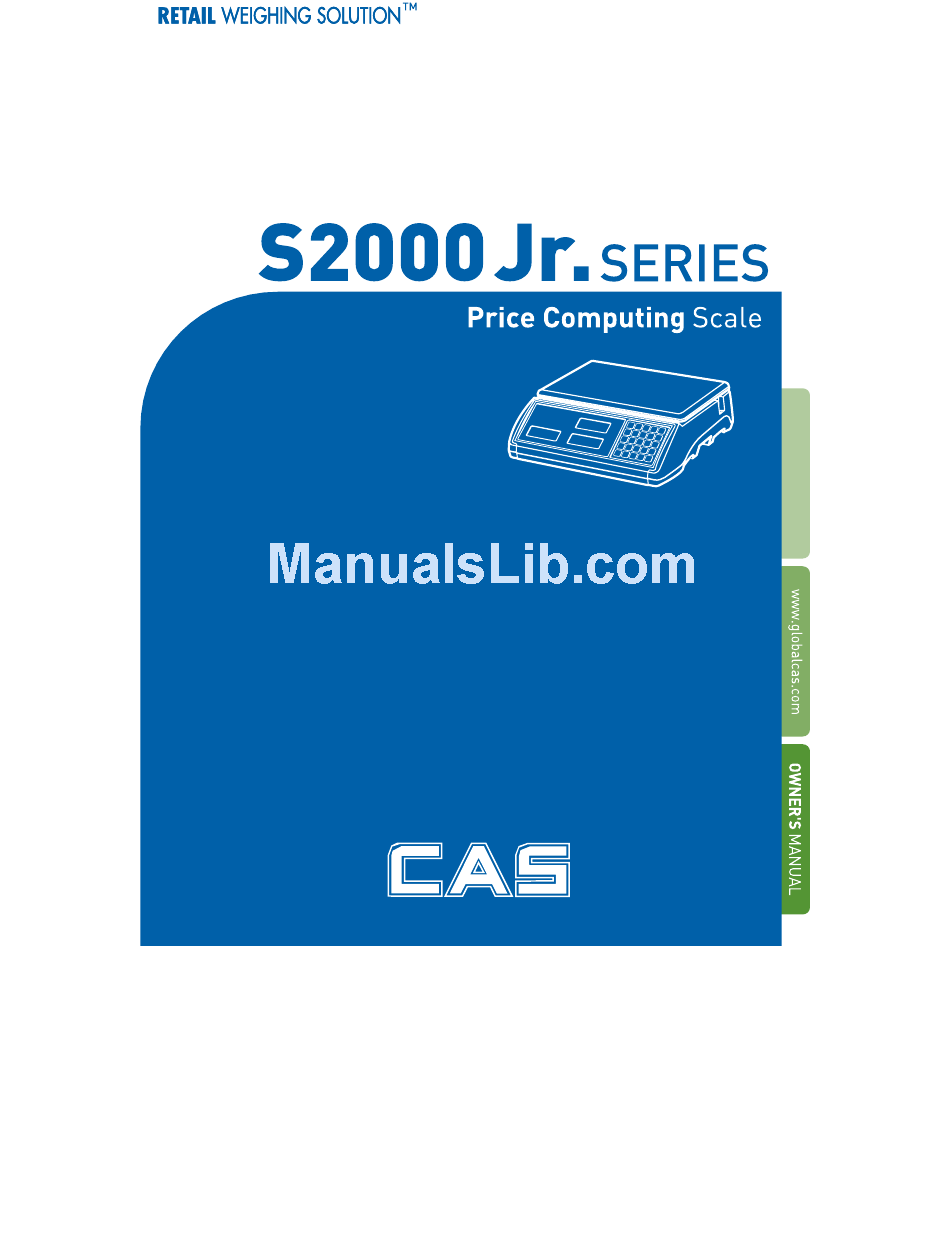

CAS S2000 Jr. Series Owner's Manual

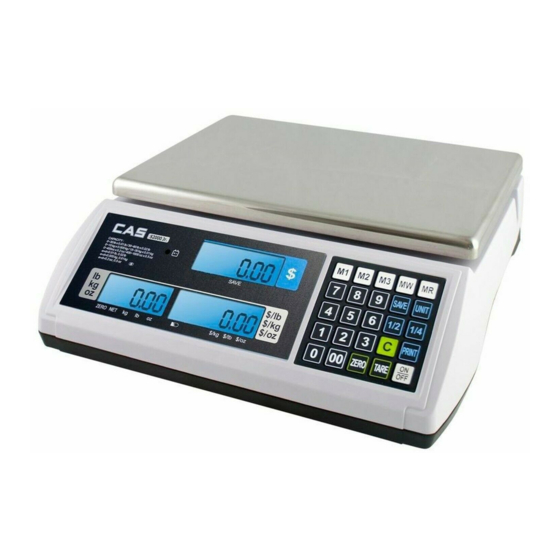

Price computing scale
Hide thumbs Also See for S2000 Jr. Series:
Table of Contents

Advertisement

Quick Links

See also: User Manual
e
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S2000 Jr. Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS S2000 Jr. Series

Summary of Contents for CAS S2000 Jr. Series

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ..........4 PREFACE ............6 OVERALL VIEW ..........6 DISPLAY & KEYBOARD ........7 OPERATIONS ........... 11 I. Programming Mode ......... 11 ......12 Chapter 1. Basic Operation ... 15 Chapter 2. PLU Saving & Calling-up ....19 Chapter 3.

  • Page 3: Precautions

    PRECAUTIONS...

  • Page 5: Preface

    PREFACE Thank you for purchasing the CAS S2000 Jr. This series has been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy this CAS product. We hope that this CAS product meets your needs. The user manual is designed to help you to understand the proper operation and care of the product.

  • Page 6: Display & Keyboard

    DISPLAY & KEYBOARD ■ S2000 Jr. LCD TYPE : Front Display ■ S2000 Jr. LCD TYPE : Rear Display ■ S2000 Jr. VFD TYPE : Front Display ■ S2000 Jr. VFD TYPE : Rear Display...
  • Page 7 ■ S2000 Jr. – M LCD TYPE : Front Display Table : Symbols on Display SYMBOLS DESCRIPTION ZERO (▼) To adjust Zero reference point NET (▼) Tare on Unit of weight is kilograms kg (▼ lb (▼ Unit of weight is pounds oz (▼) Unit of weight is ounces Low battery warning...
  • Page 8 ■ KEYBOARD ■ S2000 Jr. Direct PLU Key pad...
  • Page 9 Table: Key Functions KEYS FUNCTIONS To input all numerical data Direct PLU keys To save PLU To call up PLU Used to prevent the auto clearing of unit price and weight Used to select weighing unit value. (kg, lb or oz) To clear data To set zero To set or clear tare value...

  • Page 10: Operations

    OPERATIONS I. Programming Mode Chapter 1. Basic Operation Turning the scale on / off Turning backlight on / off(LCD version only) Zero function Tare function – One Time tare – Successive tare – Preset tare Chapter 2. PLU Saving & Calling-up Saving unit price on PLU Saving tare weight on PLU Saving valid date set on PLU(Option)

  • Page 11: Chapter 1. Basic Operation

    Chapter 1. Basic Operation a. Turning the scale on / off ① Press ON/OFF key to turn on. ② Press ON/OFF key to turn off (VFD Version). Press ON/OFF key for a few seconds to turn off (LCD Version) b. Turning backlight on/off (LCD version only) ①...
  • Page 12 d.Tare function Tare means the weight of container. You may use the tare function when you weigh an item using a container and measure only the weight of the item. ■ One time tare ① Place a container on the platter. ②...

  • Page 13: Preset Tare

    ■ Preset tare ① Press appropriate numeric keys. Ex) 10g ② Press TARE key to set tare. ③ Press TARE key again to set zero.

  • Page 14: Chapter 2. Plu Saving & Calling-Up

    Chapter 2. PLU Saving & PLU Calling-up a. Saving unit price on PLU This section explains how to save a unit price in the PLU Number of PLU Range Remarks PLU Name 1~200 ① Press numeric key to input unit price you ②...
  • Page 15 c. Saving valid date set on PLU This section explains how to save valid date in PLU. You can input the valid date. Range is 0 ~ 999. Valid date Packed on date Sell by date Remarks 12.11.07 (Today) (No print) 12.11 07 (Today) 12.11 07 (Today) 12.11.07 (Today)
  • Page 16 e. Saving PLU name ● C key is to input, save a character, and move to next character (or byte). ● TARE key is used to move to the next programming menu. ① Input appropriate ASCII codes to save the PLU ②...
  • Page 17 f. Calling up a PLU ■ Indirect PLU ① To call up an indirect PLU that has been ② To go back to normal weighing mode press C saved, press the appropriate numeric keys (address) and then the MR key Ex) PLU 10 ■...

  • Page 18: Chapter 3. User's Set-Up Mode

    Chapter 3. User’s Set-up Mode This section explains how to set up the following functions. Functions Options Remarks a. Auto power-off NO / 10 / 30 / 60 When backlight option selected b. LCD Backlight On/OFF OFF / ON / 3 / 5 / 10 in LCD version only c.
  • Page 19 a. Auto power-off This section explains how to set backlight on & off function and automatic off function. Options Description Remarks No auto power-off. 10 (minutes) Auto power-off in 10 minutes when no use. 30 (minutes) Auto power-off in 30 minutes when no use. 60 (minutes) Auto power-off in 60 minutes when no use.
  • Page 20 c. Brightness control (Option in LCD version only) This section explains how to set brightness level (1~7) ① Press ZERO key to move next function setting, backlight brightness. ② Press TARE key to select brightness. (1~7) d. Low battery backlight auto off function (Option in LCD version only) This section explains how to set backlight auto off.
  • Page 21 e. Stand By Mode function (Only VFD version) This section explains how to set the time until stand by mode. Options Description Remarks No Stand By mode. 20 (seconds) Stand By mode in 20 seconds when no use. 40 (seconds) Stand By mode in 40 seconds when no use.
  • Page 22 DLP-50 Printer Only The following displays will be available when the DLP-50 Printer Interface is selected. They are used to program or select information that could be printed in a barcode. ● Press the ZERO key to save the current option and move to the next function setting mode. ●...
  • Page 23 g. Use TARE with PLU This section explains how to set Use TARE with PLU. If you want to assign a TARE weight in a PLU use this setting. ① Press ZERO key to move next function ② Use the TARE key to select Kg or Lb. Press setting, Use TARE with PLU.

  • Page 24: Chapter 4. Formatting Printing Receipt

    Chapter 4. Formatting printing receipt This chapter explains how to set the receipt format in the following fields. To get into “Printing format Setup mode” Press ON/OFF key pressing and holding C key. Options Description Remarks To input characters you wish to have on the Maximum 1,2 line / 24 characters, HEADER receipt header.
  • Page 25 ① Hold down the C key and press ON/OFF key ② Input appropriate ASCII codes (page on 45) under the scale power off. “1” on the “Unit you wish to have. Ex) CAS. Price” display represents that you are ready to input the first character.
  • Page 26 ⑤ To save it and go to the next header line press ⑥ Using ASCII code you can input appropriate TARE key. data on Header 2. Ex) THANK YOU c. Receipt currency (unit) setting ① Initial currency (unit) display status. ②...
  • Page 27 ③ Press C key to go to next “Month” setting. ④ Just input appropriate month you wish to have, not using ASCII code. Ex) 12 (December) ⑤ Press C key to go to next “Date” setting. ⑥ Just input appropriate date you wish to have, not using ASCII code.
  • Page 28 e. Receipt TIME setting ① Press C key to go to next “Hour” setting. ② Just input appropriate time you wish to have, not using ASCII code. Ex) Hour 13 (PM 1:00) ③ Press C key to go to next “Minute” setting. ④...
  • Page 29 f. Receipt Date format setting ⑤ Press C key to go to next “Date format” ⑥ Just input a number according to below table. setting. Number Date format Year / Month / Date Date / Month / Year Ex) Press “1” to use DD/MM/YY print format ●...
  • Page 30 g. Samples of Print format ■ DLP Printer ① When using weigh item or fixed item sale mode. ERP type – Barcode indicates “Total price” ERW type – Barcode indicates “Weight” When using multi item sale mode. ERCP type – Barcode indicates “Total price” ERCW type –...

  • Page 31: Sales Mode

    . Sales Mode Chapter 5. Sales Transaction Sales with open price (input price during transaction) Sales using PLU direct PLU indirect PLU Chapter 6. Daily Total Sales Calling up daily total sales data Deleting daily total sales data...

  • Page 32: Chapter 5. Sales Transaction

    Chapter 5. Sales Transaction S2000 Jr. can have a sales transaction with either open price or with a preset PLU price. a. Sales with open price (input price during transaction) This section explains how to make a sales transaction with open price (input price during transaction). ①...
  • Page 33 ③ If you press PRINT key this transaction will ④ Remove the item from the platter. add to the daily total amount and number of sales and the unit price & total price window are cleared. ● If the scale is connected printer, sale transaction data will printed out.

  • Page 34: Chapter 6. Daily Total Sales

    Chapter 6. Daily Total Sales a. Calling up daily total sales data ① Press PRINT key for 3 seconds until ② Press PRINT key again to call up daily total sales. “dtP” message shows up. Ex) daily total amount of sales = 444.99 ③...
  • Page 35 b. Deleting daily total sales data ① Press PRINT key for 3 seconds until “dtP” ② Press PRINT key again to call up daily total sales. message shows up. Ex) daily total amount of sales=444.99, ③ Press C key to delete “daily total sales” data. “Clear”...

  • Page 36: Ascii Code

    Table: ASCII Code HIGH ORDER LOW ORDER ‘ ˝ & ´ ￥ < > Picture1: Alphabet location on the keyboard...

  • Page 37: Error Messages

    The “Err 0” occurs when scale is not stable. Remove unstable facts. The “Err 1” occurs when a current zero “Err 1” point Please call your CAS dealer. has shifted from the last span calibration. “Err 3” The “Err 3” is an overload error.

  • Page 38: Specification

    Table: SPECIFICATION MODEL S2000 Jr. Dual Interval Dual Interval Dual Interval CAPACITY Max 3/6kg Max 6/15kg Max 15/30kg e = 1/2g e = 2/5g e = 5/10g S2000 Jr. : 5 / 6 / 6 (Weight/Unit Price/Total Price) DISPLAY S2000 Jr. - M : 6 / 6 / 8 (Weight/Unit Price/Total Price) SYMBOL ON DISPLAY Power, Zero, Tare, Low battery, Backlight (Option for only LCD version)
