- Page 1 CAS ELECTRICS CO.,LTD SW-II Series Service Manual (English) 2016. 06. 27...
-
Page 2: Table Of Contents
CAS ELECTRICS CO.,LTD Table of Contents 1. Introduction ........................3 1.1. Preface ........................3 1.2. Precaution ........................ 3 2. Classification ........................4 2.1. Overall View ......................4 2.2. Specifications ......................4 2.3. Display & Key ......................5 2.3.1. Display ......................5 2.3.2. -
Page 3: Introduction
1. Introduction 1.1. Preface Thank you for purchasing of our CAS scale. This scale has been designed with CAS reliability, under rigid quality control and with outstanding performance. WE hope that your departments enjoy with high quality of CAS product. -
Page 4: Classification

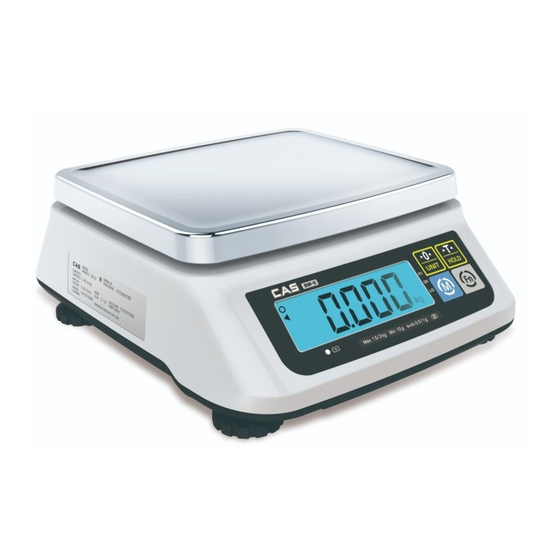

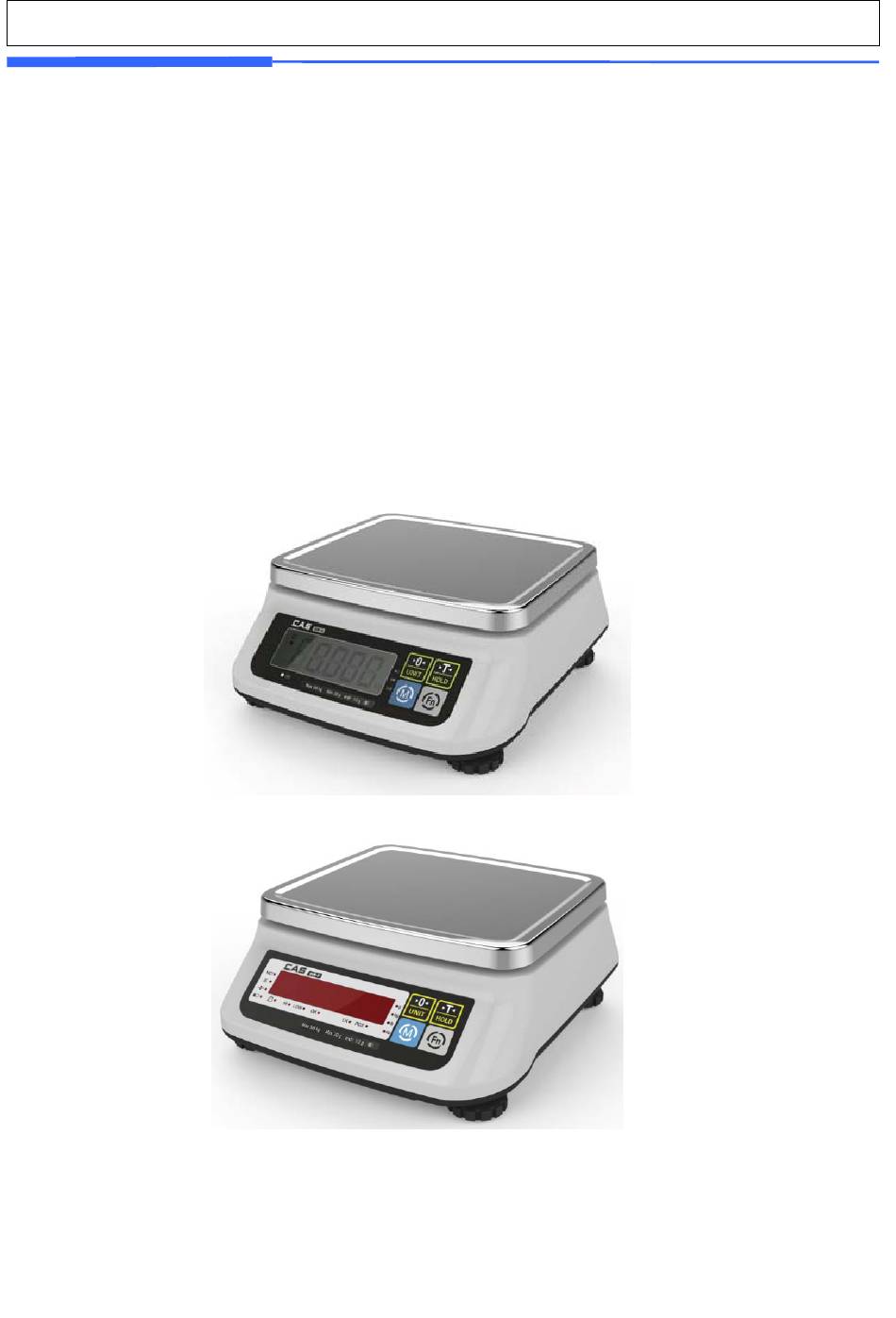

CAS ELECTRICS CO.,LTD 2. Classification 2.1. Overall View 2.2. Specifications MODEL SW-ΙΙ Dual Single Dual Single Dual Single Dual Single Capacity 1.5/3kg 3/6kg 6/15kg 15kg 15/30kg 30kg e=1g e=2g e=5g e=10g e=0.5g e=1g e=2g e=5g e=0.5/1g e=1/2g e=2/5g e=0.5/1g e=0.2g e=0.5g... -
Page 5: Display & Key
CAS ELECTRICS CO.,LTD 6 V Adapter 500 mA, Pb 4 V4 A, Option Rear Display, RS232, USB, SUS TRAY 2.3. Display & Key 2.3.1. Display 2.3.1.1 LCD Front 2.3.1.1 LCD Rear 2.3.1.3 LED Front 2.3.1.4 LED Rear... -
Page 6: Key Function
CAS ELECTRICS CO.,LTD 2.3.2. Key Function KEYS FUNCTIONS Used to set the zero point. Used to input or cancel the weight of tare. Used to change the unit of weight, and shown as following sequence on the display. [Kg] [WL on or off] [PCS] [Kg] Used to select and hold or unit conversion function Used to convert the unit of weight. -
Page 7: Loadcell
CAS ELECTRICS CO.,LTD 2.4.2. Loadcell 2.5. Sealing Method... -
Page 8: Calibration
CAS ELECTRICS CO.,LTD 3. Calibration 3.1. Calibration Mode SW-II supports two calibration mode. Cal mode 1: Calibration after the initialization data (Initialization and 3 point calibration) Cal mode 2: Calibration should only proceed again (3 Point calibration) Cal mode 3: One Point Calibration Mode After turning on the power, while the number is changed to "999999", "888888", "777777"... - Page 9 CAS ELECTRICS CO.,LTD 15002 single 1/7500 15001 single 1/15000 15000.5 single 1/30000 30000 dual 5/10 1/3000 30010 single 1/3000 30 kg 30005 single 1/6000 30002 single 1/15000 30001 single 1/30000 After pressing the [ZERO] key and [TARE] key Power ON the display is as follows. Press [ZERO] key Parameter Setting Mode.
- Page 10 CAS ELECTRICS CO.,LTD (1) Change your settings After turning on the power scale, while the display are turned on, press the [TARE] key you can change the user settings. Press [TARE] key, and move digits (digit shift) is possible, pressing the [MODE] key to increase the number.
-
Page 11: Span Calibration
CAS ELECTRICS CO.,LTD 3.2. Span Calibration (1) Pressing and holding “Calibration Switch” press power on/off switch. It displays “0” message. (2) Press [TARE] to display “C-line”. - Page 12 CAS ELECTRICS CO.,LTD (3) Press [ZERO] key and then it displays “zero” message. (4) Press [M] key and then it displays “On1” message (5) Load middle weight (ex:1/3 full capacity) on the platform (6) Press [M] key and then it displays “On2 ” message (7) Load middle weight (ex:2/3 full capacity) on the platform (8) Press [M] key and then it displays “On3 ”...
-
Page 13: The Schematics And Diagram
CAS ELECTRICS CO.,LTD 4. The Schematics and Diagram 4.1. System Block Diagram 4.2. Circuit Diagram Please call your CAS dealer. 4.3. Interface 4.3.1. RS232C Interface (direct) ZERO + POWER ON USER SET MODE Rs-st : Stable mode Rs –Co : Continuous mode... -
Page 14: Usb Interface
CAS ELECTRICS CO.,LTD 4.3.2. USB Interface 1: Vbus (5V) 2: D- 3: D+ 4: Ground 5. Firmware Update Method Please call your CAS dealer. -
Page 15: Exploded Views
CAS ELECTRICS CO.,LTD 6. Exploded Views... -
Page 16: Parts List
CAS ELECTRICS CO.,LTD 7. Parts List 7.1. Electronic Parts Parts Image Part Code DESCRIPTION Q'ty Name MAIN 6D00-SWL-0000-0 PCB ASS'Y DISPLAY 6D10-SWL-0000-0 PCB ASS'Y (LCD FRONT) DISPLAY 6D10-SWL-0001-0 PCB ASS'Y (LCD REAR) DISPLAY 6D10-SWL-0002-0 PCB ASS'Y (LED FRONT) DISPLAY 6D10-SWL-0003-0... -
Page 17: Mechanical Parts
CAS ELECTRICS CO.,LTD Switch Cable Pb Battery Mn Battery 7.2. Mechanical Parts 7.2.1. BODY ASS'Y Image Part Code Parts Name DESCRIPTION Unit Q'ty 2000-A00-0451 BODY... - Page 18 CAS ELECTRICS CO.,LTD BATTERY COVER 2000-A00-0452 BATTERY COVER 2000-A00-0453 2008-A00-0001 FOOT 1020-A00-0019 BATTERY HOLDER 2000-A00-0399 SEALING PLATE 2000-A00-0453 LC PLATE WATER LEVEL 2022A0000041 ø14.9*8(S-2000)상보 GAGE BB01JP000130 SWITCH 7610SBT0303B DC JACK T SCREW PH 2000-A00-0458 M4X10 2000-A00-0452 T SCREW FH M3X8...
-
Page 19: Upper Case Ass'y
CAS ELECTRICS CO.,LTD BATTERY SPRING 1590A0000240 BATTERY SPRING 1590A0000070 BATTERY 2P*135m/m(SW-1) 7840W000213C WIRE(-) BATTERY 2P*165(SW-1) 7840W000216A WIRE(+) 3P*230mm-303(SW- CONNECTOR 7840W000323B 1S/C 전용) WIRE 1535-MSU- W BOLT WA 6X25 0620 1535-MSU- W BOLT WA 6X20 0625 1510A0003060 T SCREW PH M3X6 7.2.2. -
Page 20: Image Ass'y
CAS ELECTRICS CO.,LTD 2000-A00- TRAY (ABS) 0454 7.2.4. IMAGE ASS'Y Image Part Code Parts Name DESCRIPTION Unit Q'ty SPEC PLATE 2050-A00-0656 DP COVER (F) SW-II TOOL 2050-A00-0657 DP COVERV ® SW-II TOOL CAPA STCKER FRONT CAPA STCKER REAR 7.2.5. PLATFORM ASS'Y... -
Page 21: Loadcell Parts
CAS ELECTRICS CO.,LTD 9103-A00- C/T BOX 0015 9202-A00- STYROFORM BOX 0003 9202-A00- STYROFORM BOX 0004 ® MANUAL 9301A0000030 POLY BAG 9300A000003A POLY BAG 9304A000005B POLY BAG 9400A0000460 SILICAGEL 봉인납 수출용 9900A0000010 SEALING 300M/ROLL 9900A0000020 WIRE 7.3. PMechanical Parts 7.2.7. Loadcell Parts... -
Page 22: Revision
CAS ELECTRICS CO.,LTD Revision CAUSE DATE APPROVAL Remark Keum Start 2016.05.10 Youngkwang 2016.6.27 Kyunghyun Kim Rev1...
