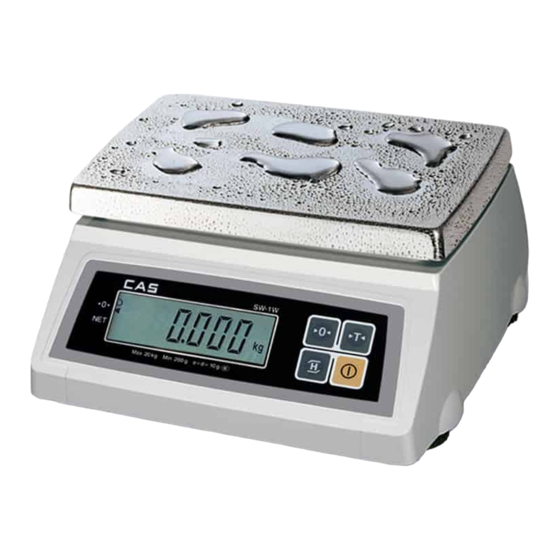

Summary of Contents for CAS SW-1S

  • Page 2: Table Of Contents

    1. Simple Weighing Mode ........9 2. Weighing with Tare ..........9 3. Changing Unit of Weight ........ 10 4. Hold Function (SW-1S , SW-1W ) ....10 5. Comparator Function (SW-1C only) ..... 11 6. Counting Function (SW-1C only) ....12 7.

  • Page 3: Precautions

    PRECAUTIONS...
  • Page 4 PRECAUTIONS...

  • Page 5: Preface

    CAS products. We believe that your needs will be satisfied and you will have proper reliability. This manual will help you with proper operation and care of the SW-1S/1C/1W Series. Please keep it handy for future reference.
  • Page 6 Used to input or cancel the weight of tare. Used to make the weight of commodity stable. This weight is average value. Used to turn on and off the scale. ■ SW-1S, SW-1W (Unit Version, Option) ■ KEY FUNCTIONS KEYS FUNCTIONS Used to set the zero point.
  • Page 7 ■ SW-1C ■ KEY FUNCTIONS KEYS FUNCTIONS Used to set the zero point. Used to input or cancel the weight of tare. Used to change the unit of weight, and shown as following sequence on the display. [Kg] [WL on or off] [PCS] [Kg] Used to turn on and off the scale.

  • Page 8: Operations

    OPERATIONS ■Turn on the scale by pressing key. Then, the display will show all the segments and count up "0" to "9". You may stop this automatic counting by pressing the key. ■ When you turn on the display, make sure that platter is empty. Otherwise, display will show "Err 1", an error of initial zero range.

  • Page 9: Changing Unit Of Weight

    "0.000". container with "-" symbol. 3. Changing Unit of Weight (SW-1S,SW-1W,Unit ver. only) ■ Press the key in the simple weighing mode. You may select kg, lb, or oz as the unit of weight.

  • Page 10: Comparator Function (Sw-1C Only)

    5. Comparator Function - HI / LOW Limit Setting (SW-1C only) ① Press the key until ② Press key to activate ③ Press key once to set the display shows "WL this function. The display up the low limit. The display OFF".

  • Page 11: Counting Function (Sw-1C Only)

    ⑧ If you want to go back to ⑨ Suppose that the HIGH the simple weighing mode limit and LOW limit are set up just press key twice. as 2.990kg and 1,990kg respectively. If the weight loaded is 2kg between HIGH and LOW limit the display shows "OK"...
  • Page 12 ④ If you select "P_10" as a ⑤ Put all of commodities you ⑥ Remove all of sample unit, then please wish to count, and then commodities from the scale. put 10 sample units on the check the number of pieces scale.

  • Page 13: How To Use Print(Option)

    ⑧ When you try to set the number of sample unit at the ③ stage the display may show "LACK" message shortly. The result of counting may be incorrect in the following cases. a. unit weight ≤1/2 e * b. weight loaded ≤2% of maximum weighing capacity.
  • Page 14 7-2. K-Send ■ Mode Setting This Print Mode is ‘Command Mode’. First of all, You must scale’s mode setting. ① If you see “K-Snd” on ② If you see “AP-XX” on ③ You will see the firmware display, Press the key, display, Press the key one...
  • Page 15 ④ Press the key, you can ⑤ Remove container and ⑥ Press the key, Total send the another weight to commodity, then display will weight is send a printer. the printer. show the"0.000". ■ Print Out K-send MODE =>Command Mode Count Weights/kg 2.580 1.950...
  • Page 16 7-3. S-Send ■ Mode Setting This Print Mode is ‘Stable Mode’. Please refer to the page 14. ■ Print Operation ① Place a commodity on the ② If weight is stable state, ③ Remove container and platter, then the display will You will see on display commodity, then You can...
  • Page 17 7-4. U-Send ■ Mode Setting This Print Mode is ‘Continue Mode’. Please refer to the page 14. ■ Print Operation ① Place a commodity on the ② Remove container and platter, then the display will commodity, then display will show the weight of the show the"0.000".
  • Page 18 7-5. C-Send ■ Mode Setting This Print Mode is ‘Change weight Mode’. Please refer to the page 14. ■ Print Operation ① Place a commodity on the ② Remove container and platter, then the display will commodity, then display will show the weight of the show the"0.000".

  • Page 19: How To Set Auto Power Off

    7-6. How to Connect RS-232C Wire - SERIAL INTERFACE 8. How to Set Auto Power Off Auto-Power off function is to automatically power off as time is set. This function is helpful to save battery, which is not in use. The following is the setting procedure of Auto-power off.

  • Page 20: Battery Maintenace

    Remove unstable The "Err 0" occurs when scale is not stable. "Err 0" facts. The "Err 1" occurs when a current zero point has Please call your CAS "Err 1" shifted from the last span calibration. dealer. Please remove the The "Err 3"...

  • Page 21: Specifications

    1000hours (Alkaline at 20°C /68°F) Operating -10°C ~ +40°C / 14°F ~ 104°F Temperature Minimum Voltage About 5.5V Level of The Battery Option 9V Adapter 300mA, Rear Display, Stainless Tray (SW-1S, SW-1C) ※ Notice: Specifications are subject to change for improvement without notice.
