Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CAS SW-2
Summary of Contents for CAS SW-2
- Page 1 Industrial Weighing Systems 9 Richmond St. Picton, ON Canada K0K 2T0 Ph: 613-786-0016 Cell: 613-921-0397 Fax: 613-476-5293 E-mail info@iwsystems.ca Website: www.iwsystems.ca Industrial Weighing Sytems assumes no responsibility for the accuracy of the calibration instructions extracted from manufactureres documentation. Contact us for complete manuals we may have on file info@iwsystems.ca Industrial weighing systems provides repairs to all insturments and load cells.
- Page 2 SW Series Simple Weighing Scale OWNER’S MANUAL...
-
Page 3: Table Of Contents
CONTENTS PRECAUTIONS PREFACE NAMES AND FUNCTIONS OPERATIONS 1. General Weighing 2. Weighing with Tare 3. How to Convert the Unit of Weight 4. Hold Function 5. How to Set Auto Power Off ERROR MESSAGE SPECIFICATIONS... -
Page 4: Precautions
PRECAUTIONS Make sure that you plug your scale into the proper power outlet. Plug into a power outlet 10 minutes before operations. Place the scale on a flat and stable Do not subject the scale to sudden surface. temperature changes. Do not subject the platter to sudden This scale must be installed in a dry shocks. - Page 5 If the scale is not properly level, please adjust the 4 legs at the bottom of the scale (turn legs clockwise or counterclockwise) so as to center the bubble of the leveling gauge inside the Leveling gauge indicated circle. Keep the scale away from strong EMI noises may cause incorrect weight readings.
-
Page 6: Preface
PREFACE Thank you for purchasing our CAS SW Series. These series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your specialty departments can enjoy these high quality reliable CAS products. We believe that your needs will be satisfied and you will have proper reliability. -
Page 7: Operations

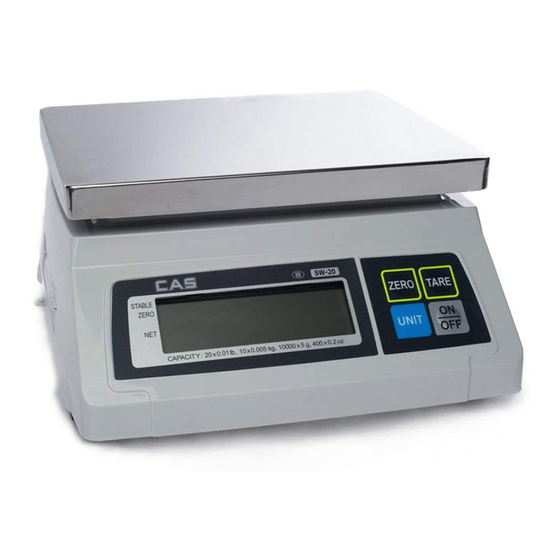

MODEL: SW - 1 ZERO TARE ZERO UNIT CAPACITY: 2 0.001kg FUNCTION KEYS FUNCTIONS ZERO Used to set the zero point. Used to enter a tare weight and used to cancel a tare weight. TARE Used to convert the unit of weight. UNIT When the weight is not stable, display will show the average weight HOLD... -
Page 8: General Weighing
1. General Weighing Place a commodity on Remove the commodity the platter. from the platter. 2. Weighing with Tare Tare is the weight of container being used for a commodity. ZERO TARE The TARE key subtracts the weight of the container. ZERO TARE HOLD... -
Page 9: How To Convert The Unit Of Weight
3. How to Convert the Unit of Weight Press the UNIT key, then the display will show the "UnIt" for a second. Press the UNIT key until the display shows the unit that you wish to take. NOTE: Unit of measure is g, kg, lb, and oz selectable by pressing UNIT key. 4. -
Page 10: How To Set Auto Power Off
5. How to Set Auto Power Off Auto-Power off makes the battery's life longer. When you don't operate the scale, this function makes the power OFF automatically. Before setting the Auto Power Off, make sure that the power is OFF. ZERO TARE ZERO... -
Page 11: Error Message
ERROR MESSAGE ERROR REASONS SOLUTIONS Set the platter empty Err 1 An error of the initial zero range Refer to specifications An overload SPECIFICATIONS MODEL SW-2 SW-5 SW-10 SW-20 2.000 kg 5.000kg 10.000 kg 20.00 kg CAPACITY 0.001 kg 0.002kg 0.005 kg...
