4. FUNCTION OF MAIN COMPONENTS

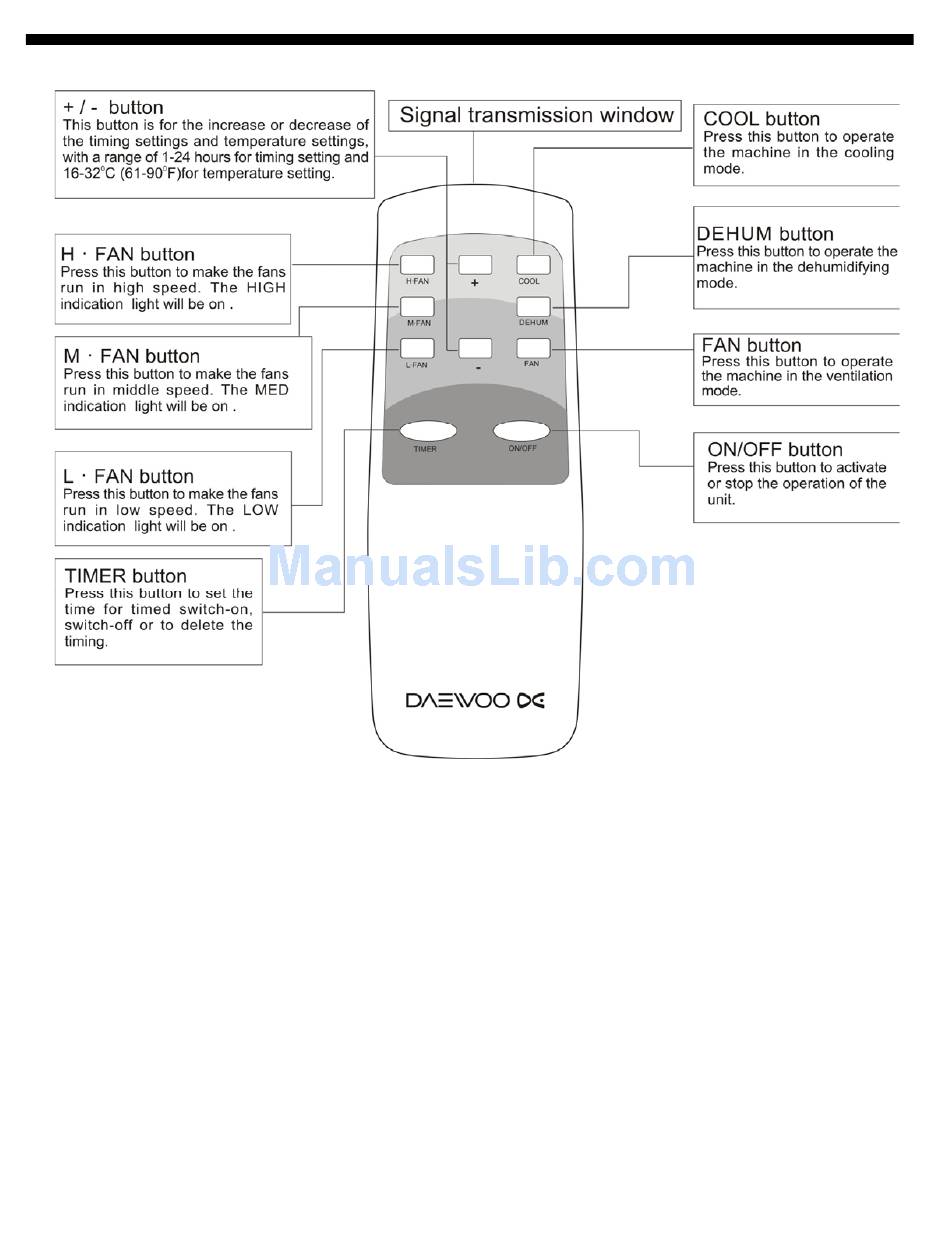

4.REMOTE（FOR DWC-0520RLE DWC-1220R DWA-1220R）
3. MOTOR（FOR ALL MODLE）
The motor is used to rotate the indoor and outdoor fan so that the room air can be recirculated.
4. FAN（FOR ALL MODLE）
• BLOWER FAN: The Blower draws hot air from the room through the Evaporator and then discharges it back into the
cool air. It circulates the room air.
• PROPELLER FAN: The propeller draws outdoor air through louvering and cools Condenser, and then blows the hot
air out.
5. CAPACITOR（FOR ALL MODLE
The Capacitor enlarges the difference of phase between main coil and sub coil so that the Compressor and Fan Motor
starts well.
6. ACCUMULATOR（FOR ALL MODLE）
The Accumulator blocks the unflow of liquid refrigerant and impurities into the Compressor.
- 8 -
