- Page 1 DAC-7L INSTRUCTION MANUAL www.datavideo-tek.com Rev 261109...
-
Page 2: Table Of Contents
Output Connections ............7 Front Input Connections ..........7 Rear Panel ................8 Power ................8 Example Set Ups ..............9 SD-SDI Cabling Advice ............10 Optional Datavideo Related Products ........11 Specifications ................12 Service and Support ............... 13... -
Page 3: Warnings And Precautions
This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. - Page 4 When the product exhibits a distinct change in performance, indicating a need for service. 14. Ensure the dip switch settings match the video signal being fed into the DAC-7L. 15. Connecting both XLR and RCA/Phono audio sources at the same time is not recommended.
-
Page 5: Warranty
12 months from the date of product purchase. If this equipment fails due to such defects, Datavideo will, at its option, repair or provide a replacement for the defective part or product. Equipment that fails... -
Page 6: Features
The DAC-7L also has the ability to embed two channels of audio (or 1 stereo pair) into the SD-SDI signal from either unbalanced RCA/Phono connections or balanced 3pin XLR connections. -
Page 7: Front Panel

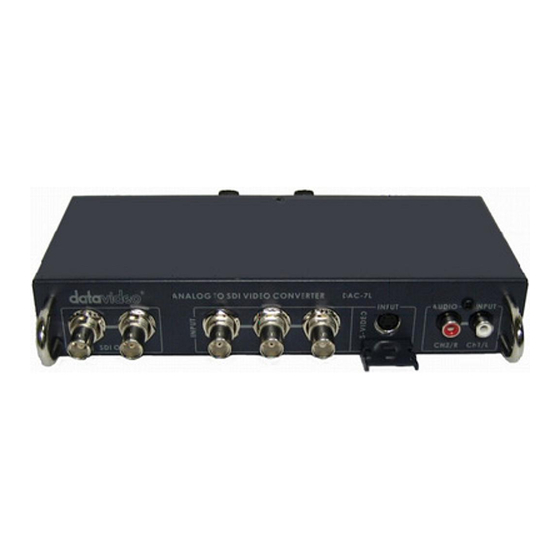

Front Panel Output Connections SDI – Serial Digital Interface on BNC terminals. 4:2:2 SDI Video data supports SMPTE 259 M-C standard at 270 Mbps. Front Input Connections Component Y.U.V. (Y.Pb.Pr.) video input on BNC terminals. S-Video (Y/C) on 4-Pin Mini Din Input. Unbalanced RCA/Phono audio connections for CH1/L and CH2/R. -
Page 8: Rear Panel
CV Input YUV Input S-Video Input Rear Connections XLR Balanced Audio Input connections for CH1/L and CH2/R. RS-232 Interface 9-pin serial port standard RS-232 interface. Used to update firmware. For details of firmware updates please check with your local Datavideo Office... -
Page 9: Example Set Ups
Example Set Ups NB: SE-1000 mixer cannot handle SDI embedded audio... -
Page 10: Sd-Sdi Cabling Advice
(mixer) and is then reflected back along the cable toward the transmitter (DAC-7L). Reflections in the transmission path will cause attenuation as well as distortion of the SDI signal received. The signal is attenuated because part of it is reflected back and does not make it to the receiver (SE-900 for example);... -
Page 11: Optional Datavideo Related Products
Optional Datavideo Related Products Datavideo have determined that single BNC SD-SDI cable runs of up to 120m should be possible with the DAC-7L unit before the signal would need to be re- clocked or repeated. The Datavideo VP-445 is one way of re-clocking the DAC-7L SD-SDI signal so that it can be fed over longer distances. -
Page 12: Specifications
Specifications 1 X CVBS, BNC connector 75 Ohm (Ω) 1 X S-Video (Y/C) 4pin Mini Din connector Video inputs 1 X YUV (3 x BNC connectors, 75 Ω) 2 x balanced stereo audio, XLR connectors Audio inputs 2 x unbalanced stereo audio, RCA / Phono sockets 2 x BNC connectors, 75 Ω... -
Page 13: Service And Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
