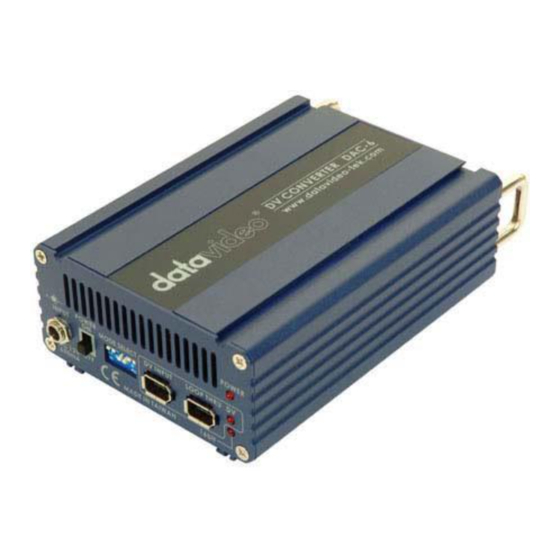

DV to Analog Converter
REV: 011105
1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and
reliable operation of this unit, and to protect it from overheating, do not block or cover these openings.
Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of
the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This
unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the
AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your
local power company.
DAC-6
Error!
USER MANUAL
Http://www.datavideo-tek.com
Warnings and Precautions
Advertisement
Table of Contents
Related Manuals for Datavideo DAC-6
Summary of Contents for Datavideo DAC-6
-
Page 1: User Manual
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. - Page 2 This symbol on the product indicates that it will not be treated as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office.
-
Page 3: Table Of Contents
INSTALLATION... 9 Connect with DV camcorder ... 9 Connect with SE-500 ... 9 Connect with Betacam... 10 SAMPLE APPLICATION DIAGRAM ... 11 DAC-6 and SE-500 application ... 11 SPECIFICATION ... 12 PRODUCT REGISTRATION... 13 SERVICE & SUPPORT... 14 Table of Contents... -
Page 4: What's In The Box
7. User Manual Introduction Thank you for purchasing the DAC-6. This is stand alone DV to Analog converter, and it can also be used as an accessory for the SE-500. In order to bring out the maximum performance of this software, we recommend that you spend some time reading this manual carefully. -
Page 5: Feature
Features 6pin IEEE1394 DV input and by-pass out Composite, Y/C, and Component output 12 bit & 16 bit auto recognition PAL & NTSC compatible PC and Mac compatible Built in Smart DV function Interface... -
Page 6: Dip Switch Set Up
S3 – ON: Unlocked Audio (factory default) S4 & S5 for NTSC and PAL video system S6. Factory setting (OFF), please do not change. *Note 1：Mode DIP switch (Reboot the DAC-6 if you change a DIP Switch) ON DV25 4:2:0 OFF Reserved ON 0 IRE OFF 7.5 IRE... -
Page 7: Installation
*Note 2: NTSC 0 IRE is most often used in Japan. 7.5 IRE is used elsewhere. Installation Plug in the power adapter, and connect to the power. Connect IEEE1394 output from DV devices, such as DV camcorder, or VTR. Connect Y/C or Composite output to SE-500. output to Betacam VTR, Composite or S-Video output to VCR for back up recording, or TV set for monitoring. -
Page 8: Sample Application Diagram
Sample Application Diagram DV Camcorder Front panel Specification Video Formats NTSC or PAL (Selectable by DIP switch) Video Inputs DV25 For Back up recording Rear Panel For Monitoring SE-500 Video Switcher... -
Page 9: Product Registration
Equipment that fails after the warranty period, has been operated or installed in a manner other than that specified by Datavideo, or has been subjected to abuse or modification, will be repaired for time and material charges at the Buyer’s expense. This warranty does not affect your statutory rights within the Country of... -
Page 10: Service & Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
