Summary of Contents for Datavideo DAC-7
- Page 2 Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives, Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires.
- Page 3 Exist Analog camera still quite a few in the market, it’s required to convert to SDI format for up to 100 meters transmission or more without quality loss DAC-7 is a very high quality converter, it convert most of analog video source also embedded analog audio into SDI...

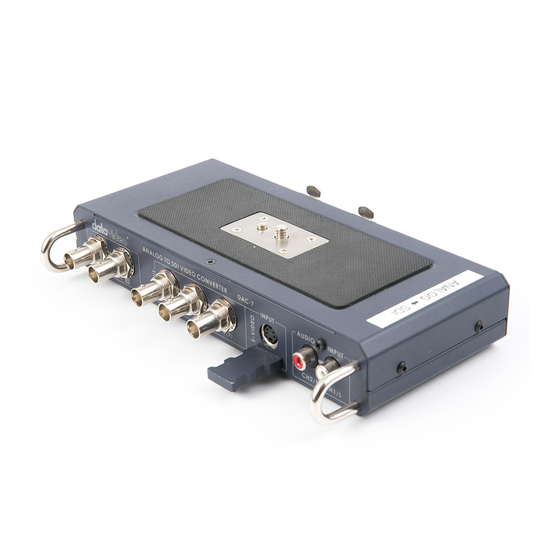

- Page 4 Functions Front Panel SDI Digital Output 4:2:2 SDI Video data supports SMPTE 259 M-C standard at 270 Mbps. SDI transfers professional level video signals and it’s can connect to long distance transmission systems. Component Y.U.V. video input terminal S-Video (Y/C) 4-Pin mini Din Input Two channels Unbalanced L / R Audio input...
- Page 5 Rear Panel DC in socket connect the supplied 12V PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. Power On/Off switch. switches the power On / Off Balanced Audio Input Supports two channels XLR Balanced Audio Input Use slide switch can select source from input.
- Page 6 Dimensions...
- Page 7 Specification 1 X CVBS, BNC connector 75Ohms Video inputs 1 X S-Video 1 X YUV (3 x BNC connectors, 75Ohms 2 x balanced stereo audio, XLR connector Audio inputs 2 x unbalanced stereo audio, RCA jack Signal Outputs 2 x BNC connector, 75Ohms for SDI signal Composite Video: 75Ω...
