- Page 1 ANALOGUE TO SDI CONVERTER DAC-7 Instruction Manual w w w . d a t a v i d e o . c o m...
-
Page 2: Table Of Contents
Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. -
Page 3: Fcc Compliance Statement
AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, damaged or otherwise stressed. -
Page 4: Warranty
Before operating this device please also refer to the section marked SD-SDI Cabling Advice. Warranty Standard Warranty • Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase. • The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty. -
Page 5: Three Year Warranty
1 year. • The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking This symbol on the product indicates that it will not be treated as household waste. -
Page 6: Introduction
Thank you for purchasing the DAC-07 Analogue to SD-SDI converter. The DAC-07 is designed to be an affordable bridge between existing cameras with SD Analogue Video outputs and SD-SDI equipment or mixers such as the Datavideo SE-900, SE-2800 and SE-3000. -

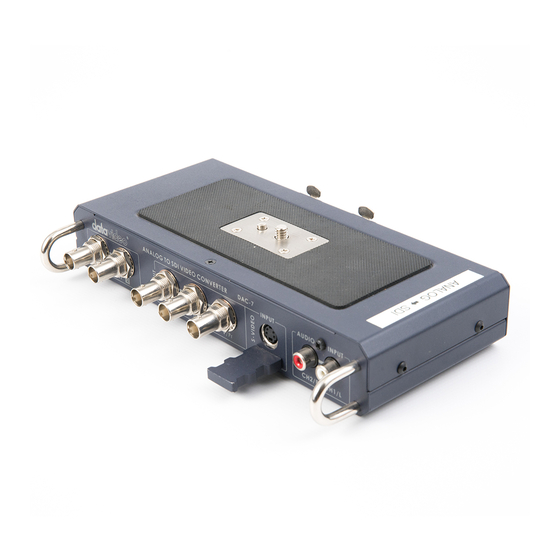

Page 7: Functions
Functions Front Panel Output Connections SDI – Serial Digital Interface on BNC terminals. 4:2:2 SDI Video data supports SMPTE 259 M-C standard at 270 Mbps. Input Connections Component Y.U.V. (Y.Pb.Pr.) video input on BNC terminals. S-Video (Y/C) on 4-Pin Mini Din Input. Unbalanced RCA / Phone audio connections for CH1/L and CH2/R. -
Page 8: Rear Panel
YUV Input Internal colour bars Rear Connections XLR Balanced Audio Input connections for CH1/L and CH2/R. RS-232 Interface 9-pin serial port standard RS-232 interface. Used to update firmware. For details of firmware updates please check with your local Datavideo Office. -
Page 9: Applications
Applications Securing to a Video Camera Use a coin or flat head screwdriver to secure the base of the video camera to the top of the DAC- Securing to a Tripod Secure the quick release plate from your tripod head to the base of the DAC-07. Secure the quick release camera plate to the tripod head with DAC-07 and Camera attached. -
Page 10: Example Setup
Example Setup NB: DAC-7 can provide SDI with or without embedded two channel audio... -
Page 11: Sd-Sdi Cabling Advice
SD-SDI signal that complies with the SMPTE259M-C standard at 270 Mbps. Datavideo have determined that single BNC SD-SDI cable runs of up to 100m should be possible with this unit before the signal would need to be re-clocked or repeated. -
Page 12: Dimensions
Dimensions Specification 1 x CVBS, BNC connector 75 Ohm (Ω) Video inputs 1 x S-Video (Y/C) 4pin Mini Din connector 1 x YUV (3 x BNC connectors, 75 Ω) 2 x balanced stereo audio, XLR connectors Audio inputs 2 x unbalanced stereo audio, RCA / Phone sockets 2 x BNC connectors, 75 Ω... -
Page 13: Note
NOTE... - Page 14 NOTE...
- Page 15 NOTE...
-
Page 16: Service And Support
Service & Support It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, DATAVIDEO WORLDWIDE OFFICES please visit www.datavideo.com to access our FAQ section.
