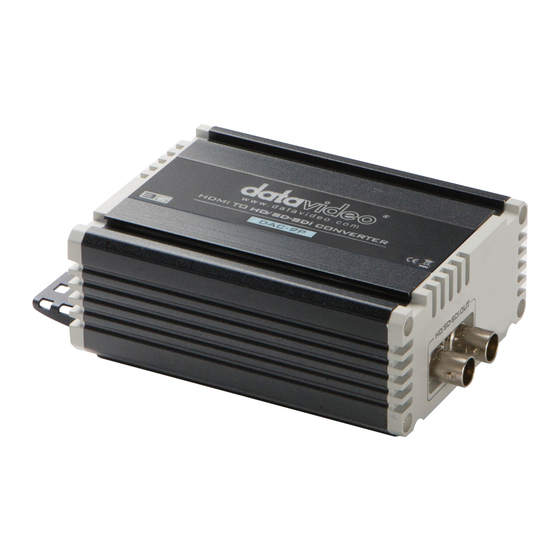

- Page 1 HDMI to HD/SD-SDI Converter DAC-9P Quick Start Guide www.datavideo-tek.com...
-
Page 2: Table Of Contents
Table of Contents Warnings and Precautions ............... 2 What's in the Box ................4 Introduction ..................4 Features ..................5 Function ................... 6 Front Panel ..................6 Rear Panel ..................7 Specification ..................8 Service & Support ................9... -
Page 3: Warnings And Precautions
AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed. - Page 4 10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes. 11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
- Page 5 distribution on the field, corporate environment responsibility by eliminating harmful substances such as carbon dioxide, sulphur dioxide, etc, and other unexpected risks, this product does not provide standby power option.
-
Page 6: What's In The Box
HDMI devices to professional SDI equipment, like video switchers or recorders up to 200 meters away. HDMI is not suitable for long cable runs, but using a Datavideo DAC-9P, users can convert HDMI to High Definition & Standard Definition SDI and take advantage of the high quality and affordable connectivity that SDI cables offer. -
Page 7: Features
Features Input 1 X HDMI Output 2 X SDI (HD / SD SDI) Enables long cable runs Rugged case design Audio can be embedded within SDI output signal PAL / NTSC Compatible Tripod Mount via Velcro straps (Supplied) ... -
Page 8: Function
Functions Front Panel HD/SD - SDI Output SDI transfers professional level video signals and it’s can connect to long distance transmission systems. -
Page 9: Rear Panel
Rear Panel DC In Socket Connect the supplied 12V 500mA PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. Power Switch Switches the power On / Off. HDMI In interface HDMI digital signal input connecter... -
Page 10: Specification
Specification Input Interface • 1x HDMI input Outputs Interface • 2x 3G/HD/SD-SDI output • 720x480 Interlace • 720x576 Interlace • 1280x720 / 50Hz Progressive • 1280x720 / 59.94Hz Progressive Video Support Format • 1280x720 / 60Hz Progressive • 1920x1080 / 50Hz Interlace (HDMI Input) •... -
Page 11: Service & Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
