- Page 1 DAC-07 INSTRUCTION MANUAL www.datavideo-tek.com Rev 100309...
-
Page 2: Table Of Contents
Securing to a Video Camera ......................8 Securing to a Tripod ........................8 Example Set Ups ........................... 9 SD-SDI Cabling Advice ....................... 10 How to avoid problems with SD-SDI ................... 10 Datavideo Related Product ......................11 Specifications ..........................12 Service & Support ........................13... -
Page 3: Warnings And Precautions
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. -
Page 4: Warranty
12 months from the date of product purchase. If this equipment fails due to such defects, Datavideo will, at its option, repair or provide a replacement for the defective part or product. Equipment that fails after the warranty period, has been operated or installed in a manner other than that specified by Datavideo, or has been subjected to abuse or modification, will be repaired for time and material charges at the Buyer’s expense. -

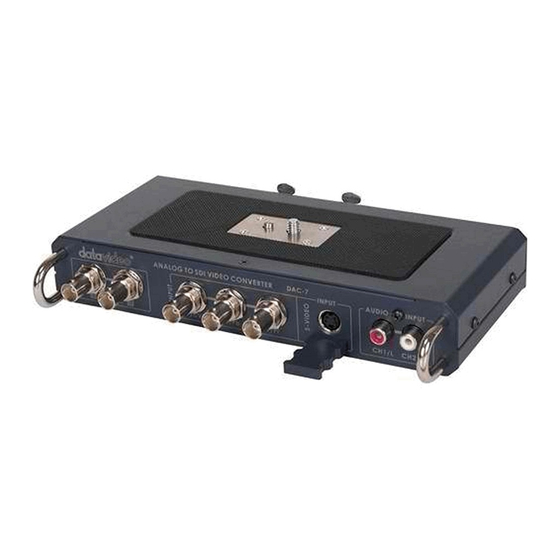

Page 5: Product Overview
The DAC-07 also has the ability to embed two channels of audio (or 1 stereo pair) into the SD-SDI signal from either unbalanced RCA/Phono connections or balanced 3pin XLR connections. -
Page 6: Rear Panel
CV Input YUV Input S-Video Input Rear Connections XLR Balanced Audio Input connections for CH1/L and CH2/R. RS-232 Interface 9-pin serial port standard RS-232 interface. Used to update firmware. For details of firmware updates please check with your local Datavideo Office. -
Page 7: Top Plate
Top Plate With locking pin and screw thread. Secure the base of the video camera to this plate. Base Plate Secure the quick release plate from your tripod head to the base of the DAC-07. -
Page 8: Securing To A Video Camera
Securing to a Video Camera Use a coin or flat head screwdriver to secure the base of the video camera to the top of the DAC-07. Securing to a Tripod Secure the quick release plate from your tripod head to the base of the DAC-07. -
Page 9: Example Set Ups
Typical Set Up NB: DAC-7 handle SDI with or without embedded two channel audio... -
Page 10: Sd-Sdi Cabling Advice
Always check with your supplier for cabling advice on the maximum distance for a particular signal and data rate, in this case an SD-SDI signal that complies with the SMPTE259M-C standard at 270 Mbps. Datavideo have determined that single BNC SD-SDI cable runs of up to 120m should be possible with this unit before the signal would need to be re-clocked or repeated. -
Page 11: Datavideo Related Product
Datavideo have determined that single BNC SD-SDI cable runs of up to 120m should be possible with the DAC-07 unit before the signal would need to be re-clocked or repeated. The Datavideo VP-445 is one way of re-clocking the DAC-07 SD-SDI signal so that it can be fed over longer distances. -
Page 12: Specifications
Specifications 1 X CVBS, BNC connector 75 Ohm (Ω) 1 X S-Video (Y/C) 4pin Mini Din connector Video inputs 1 X YUV (3 x BNC connectors, 75 Ω) 2 x balanced stereo audio, XLR connectors Audio inputs 2 x unbalanced stereo audio, RCA / Phono sockets 2 x BNC connectors, 75 Ω... -
Page 13: Service & Support
It is our goal to make your products ownership a satisfying experience. Our support staffs are available to assist you in setting up and operating your product. Please refer to our web site www.datavideo-tek.com answers to common questions, support requests or contact your local Datavideo office below. Datavideo Corporation (USA) 7048 Elmer Avenue. Whittier, CA 90602 USA Tel: +1 562 696 2324 contactus@datavideo.us...
