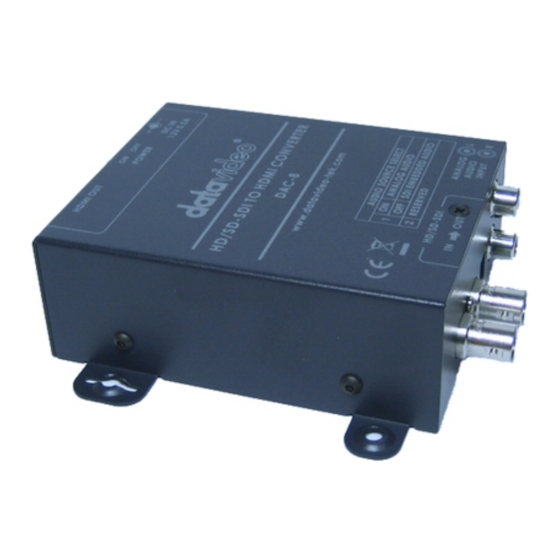

- Page 1 HD/SD to HDMI Converter DAC-8 Quick Start Guide www.datavideo-tek.com...
-
Page 2: Table Of Contents
Table of Contents Warnings and Precautions .......... 2 What’s in the box? ............4 Introduction ..............4 Features ..............4 Functions ..............5 Front Panel ............... 5 Rear Panel ............... 6 Specification ..............7 Service & Support ............8... -
Page 3: Warnings And Precautions
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. - Page 4 10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes. 11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
-
Page 5: What's In The Box
DAC-8 Switching Adaptor DC 12V 0.5A Instruction Manual Introduction The Datavideo DAC-8 is stand alone HD/SD-SDI input source transforms to HDMI output source converter, The converter up to 200 meter link to digital video display or projector. Features - Rugged housing design for ceiling mounted install easy. -
Page 6: Functions
Functions Front Panel HD/SD - SDI Input & Output(bypass) 4:2:2 SDI Video data supports SMPTE 292M standard at 1.5G Mbps. SDI transfers professional level video signals and it’s can connect to long distance transmission systems. RCA Input Two channels Unbalanced L / R Audio input Slide Switch Use slide switch can select audio source from input. -
Page 7: Rear Panel
Rear Panel DC In Socket Connect the supplied 12V 0.5A PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. Power Switch Switches the power On / Off. HDMI Output HDMI digital signal input connecter support format:... -
Page 8: Specification
Specification Input • 1x HD/SD-SDI input Interface Outputs • 1x HD/SD-SDI output (bypass) Interface • 1x HDMI output • 720x480 Interlace • 720x576 Interlace Supported • 1280x720 / 50Hz Progressive HDMI • 1280x720 / 59.94Hz Progressive Output • 1280x720 / 60Hz Progressive Formats •... -
Page 9: Service & Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below. - Page 10 G082060461B1...
