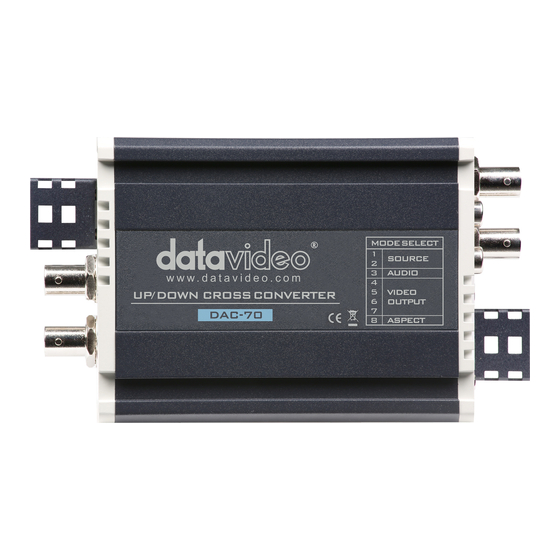

Datavideo DAC 70 Instruction Manual

Up/down/cross converter
Hide thumbs Also See for DAC 70:
Table of Contents

Advertisement

Quick Links

UP / DOWN / CROSS
CONVERTER
DAC-70
Instruction Manual
w w w . d a t a v i d e o . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAC 70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datavideo DAC 70

Summary of Contents for Datavideo DAC 70

  • Page 1 UP / DOWN / CROSS CONVERTER DAC-70 Instruction Manual w w w . d a t a v i d e o . c o m...

  • Page 2: Table Of Contents

    Table of Contents FCC COMPLIANCE STATEMENT ............... 4 WARNINGS AND PRECAUTIONS ..............4 WARRANTY ....................5 ..................5 TANDARD ARRANTY ..................5 HREE ARRANTY DISPOSAL ....................... 6 INTRODUCTION ..................7 ......................7 EATURES CONNECTIONS & CONTROLS ..............9 ..................... 9 RONT ANEL .....................
  • Page 3 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.

  • Page 4: Fcc Compliance Statement

    AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

  • Page 5: Warranty

    Warranty Standard Warranty • Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase. • The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

  • Page 6: Disposal

    Camera module, PCIe Card are covered for 1 year. • The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.

  • Page 7: Introduction

    1. Introduction The Datavideo DAC-70 is a broadcast quality up/down/cross converter. The unit allows the user to configure the device using a simple DIP switch or on a USB 2.0 interface utility. The DAC-70 case LEDs indicate the currently selected video source.
  • Page 8 Control Windows only software utility for local configuration and control via • Micro-USB 2.0 interface Note: The DAC-70 supports HDCP copy protection, i.e. the DAC-70 outputs no signal when the user supplies protected DVD or BD video.

  • Page 9: Connections & Controls

    2. Connections & Controls Front Panel VGA IN VGA IN connects the VGA equipment. Supported Resolutions 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz 1280x720@60Hz, 1920x1080@60Hz HDMI IN HDMI IN connects the HDMI equipment. HDCP Copy Protection For legal reasons, the HDMI input is unable to pass on video from copy protected HDMI sources.

  • Page 10: Rear Panel

    Audio IN Inputs for 2 channels of RCA unbalanced audio HD-SDI IN & Output (Loop Thru) HD-SDI input and loop-through output connectors. Left BNC connector: HD/SD-SDI Input Right BNC connector: Loop Thru Output Rear Panel Mode Select (DIP switch) Use the DIP switch to manually set the DAC-70 modes; please refer to the DIP Switch Mode Selection section for details.
  • Page 11 Source Indicator Indicates video source format. HDMI OUT HDMI Video and Audio output. HD/SD - SDI OUT SDI Video and Audio output. DC IN Socket Connects the supplied 12V PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC IN plug to the socket.

  • Page 12: Dip Switch Mode Selection

    3. DIP Switch Mode Selection...

  • Page 13: Dip Switch Pin 8

    DIP Switch PIN 8 Full Screen Pan Scan 16:9 / Keep Aspect Ratio (1:1) On the MAIN page of the DAC-70 Center Utility, click the Setting tab to enter the page on which the user is allowed to select “Pan Scan 16:9”...

  • Page 14: Dac-70 Center Utility

    4. DAC-70 Center Utility DAC-70 Center Utility is a Graphical User Interface that allows the user to obtain the device information and perform various video and audio settings. To use the utility, the user should first copy the DAC-70 Center.exe utility software from the installation CD to the computer running Windows.

  • Page 15: Video

    Video Click the Video tab to enter the video setup page. • • On the video setup page, click the Video Setting button to enter the video configuration page.
  • Page 16 Set the input source, aspect ratio and output format. • Click Next Page to set the HDMI Output Colour, HDMI Output Range and • Edge Enhance.

  • Page 17: Audio

    Click Apply after all settings are configured. • Note 1: When “Input Source” is set to “VGA“, the user will be allowed to adjust “Horizontal Position” and “Vertical Position” in the Image Adjust. Note 2: When “Aspect Ratio” is set to “Under Scan“, the user will be allowed to adjust “Horizontal Size”...

  • Page 18: Picture

    Note 1: Audio Level allows the user to select between EBU and SMPTE standards. Note 2: Audio Level setting is enabled only for RCA input. Picture Click the Proc AMP tab to adjust the picture settings. •...

  • Page 19: Setting

    Set the Brightness, Contrast, Hue, and Saturation levels on the Proc Amp • setup page. Setting To restore the factory default settings, click the Setting tab. •...
  • Page 20 Click the Factory Default button to reset the DAC-70 to factory defaults. • In addition, the user can also set Dip Switch 8 (1) Mode, OSD Hide Mode and No Signal Mode. Dip Switch 8 (1) Mode When 8 bit of the DIP switch is set to 1, this option allows the user to select Pan Scan 16:9 or Keep Aspect Ratio (1:1).

  • Page 21: Firmware Update

    5. Firmware Update From time to time Datavideo may release new firmware to either add new features or fix reported bugs in the current DAC-70 firmware. Customers can update the DAC-70 firmware themselves or contact their local dealer for assistance.

  • Page 22: Dimensions

    6. Dimensions All measurements in millimeters (mm)

  • Page 23: Specifications

    7. Specifications Input VGA x 1, HDMI x 1 , HD/SD-SDI x 1, Analog Audio L/R Output SDI x 2, HDMI x 1, SDI Loop thru BNC (front panel) Firmware upgrade Micro USB Aspect ratio mode selection SDI (YUV) • 1080p60/59.94/50, 1080p30/29.97/25/24/23.98 ...
  • Page 24 Storage -10~ +60°C Temperature Dimensions 144.8mm(L) x 85mm(W) x 45.2mm(H) Certifications CE/FCC...

  • Page 25: Service & Support

    It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to DATAVIDEO WORLDWIDE OFFICES common questions, support requests or contact your local office below.
