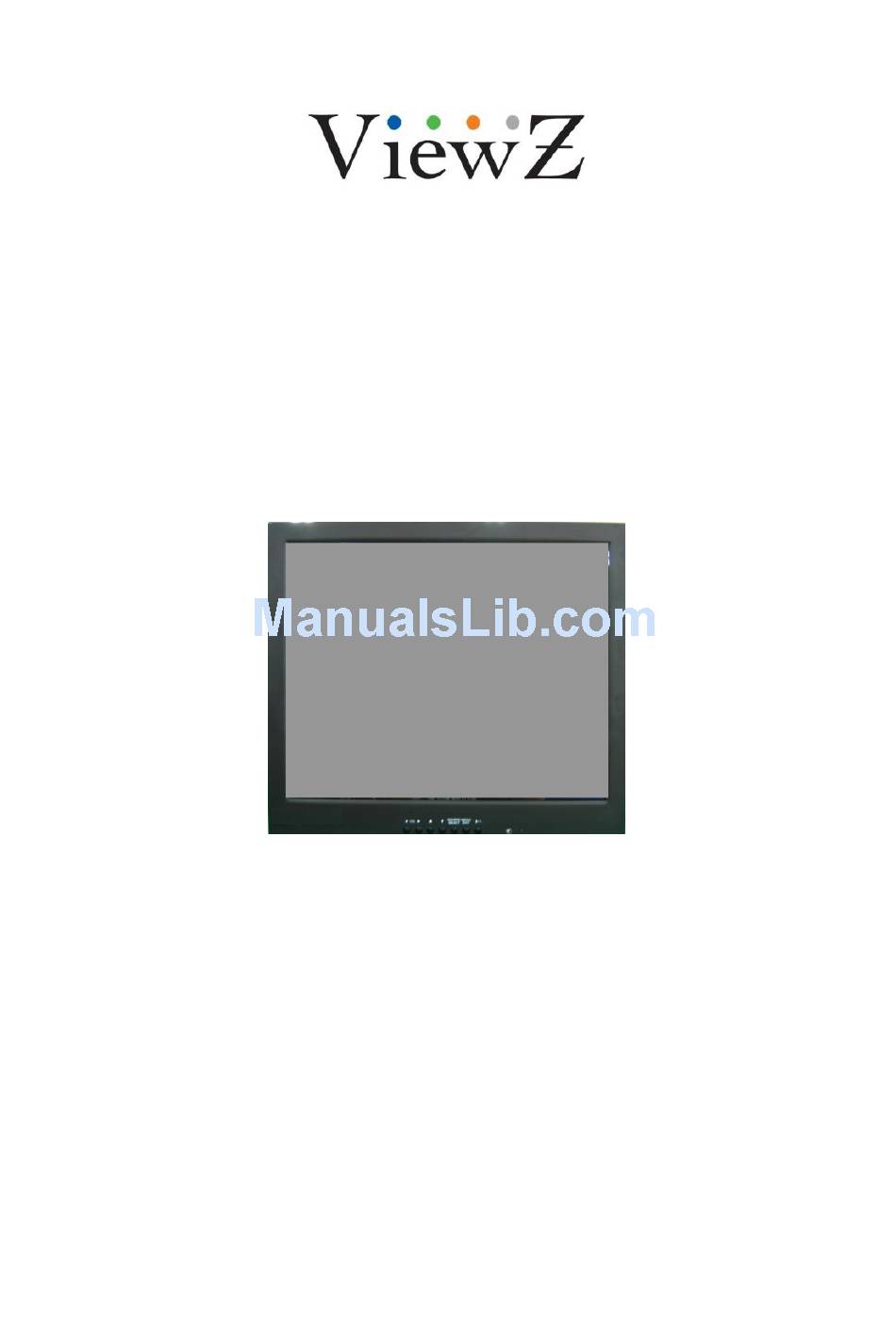

  • Page 1 19-INCH PREMIUM TOUCH SCREEN CCTV MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS ……………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... CONNECTING WITH EXTERNAL EQUIPMENT …………………………………… REMOTE FUNCTIONS ………………………………………………………………… CONTROLS AND FUNCTIONS ……………………………………………………….. 8 ~ 15 MOUNTING GUIDE …………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ………………………………………… POWER MANAGEMENT ……………………………………………………………… SPECIFICATION ……………………………………………………………………… 19 ~ 20 TROUBLE SHOOTING GUIDE …………………………………………………..
  • Page 4: Important Safety Instruction

    Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. 14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
  • Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...
  • Page 7: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 8 A. BOTTOM PANEL CONTROL 1. HDMI2 IN 2. HDMI1 IN 3. DVI IN 4. VGA(D-SUB) IN 5. PC STEREO IN 6. AUDIO OUT(Speaker) 7. COMPONENT Y,Pb,Pr & SOUND L,R IN 8. DC 12V IN 9. TRIGGER IN B. SIDE PANEL CONTROL 1.
  • Page 9: Remote Controller (Option)

    C. REMOTE CONTROLLER (Option) 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Selects PC or video(AV1/AV2/S-Video/Component/HDMI/DVI/PC) sources. 3. AUTO Auto geometry adjustment in PC Source. 4. HOLD Stops the Trigger &...
  • Page 10: Power Led

    D. FRONT KEY CONTROL 1 / 2. ◀ VOL ▶ Adjust the volume and menu settings. 3 / 4. ▲ / ▼ These buttons allow user to enter the sub-menu of the activated function. The up(▲) button is HOLD function and stop the Trigger & Auto switching functions. 5.
  • Page 11: Osd Menu Description

    OSD MENU DESCRIPTION All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the Menu button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted. 3.
  • Page 12 B. Picture/Sound Option Function Value Picture Mode Sets picture mode. See table below Color Tone Sets color tone. See table below Mute Mutes speaker sound. Off or On Volume Adjust the level of audio volume. 0 ~ 100 Size Display picture size. See table below Reduces noise of the picture.
  • Page 13 Color Tone Cool Gives the white color a bluish tint. Normal Gives the white color a neutral tint. Warm Gives the white color a reddish tint. User To manually adjust the color tones(Red, Green, and Blue). Size Sets the image size to 4:3 Panorama Sets the image to panorama Zoom1...
  • Page 14 C. PIP Option Function Value Activates the PIP feature. Off or On Input Source Selects the input source for the PIP area. See table below Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3, PIP Mode PIP, PBP1 or PBP2 and full screen side by side.
  • Page 15 D. Setup Option Function Value Resets the monitor settings to their Reset factory default. English, French, Deutsch, Language Sets the language of the OSD menu. Italian, Spanish, Portuguese or Nederland Changes background of monitor menus. OSD Tone Transparency or On (e.g.
  • Page 16 Motion Detection (Built-in PIR sensor; Passive Infra-Red) Option Function Value Trigger Enable Activates the trigger feature. Off or On. AV1, AV2, S-Video, RGB PC, Trigger Input Selects the input source for the Trigger. DVI, HDMI1, HDMI2 and Component Activates an audible signal when the monitor Buzzer On or Off.
  • Page 17 N/C(Normally Closed): The Trigger function is activated when the trigger cable is opened. N/O(Normally Opened): The Trigger function is activated when the trigger cable is closed. High: The Trigger function is activated when the trigger signal is DC 2~5[V]. Low: The Trigger function is activated when the trigger signal is DC 0~0.6[V].
  • Page 18 Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery). ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. - 16 -...
  • Page 19 ▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB ▶ ACCESSORIES 1. Power cord. 2. Power adaptor (Built-in). 3.
  • Page 20: Power Consumption

    This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
  • Page 21: Monitor Specification

    1. Monitor Specification ” 19˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.294(H) x 0.294(V) LCD- Type ² BRIGHTNESS: 250cd/ m (Typical) CONTRAST RATIO: 800:1(Typical) RESPONSE TIME: 5msec(Typical) RESOLUTION (H x V) 1280X1024 @60Hz HORIZONTAL: 31~ 64KHz, VERTICAL: 56-75Hz FREQUENCY VIDEO (2ch input 1.0Vp-p, 75Ω terminated, loop-throughout) S-VIDEO (1ch input (Y/C) , loop-throughout) COMPONENT (Y,Pb,Pr, Sound L/R) DVI (Digital Video Interface)
  • Page 22: Touch Screen Specification

    2. Touch Screen Specification Specification Voltage DC 5Volts Rating Operating Temperature Range -20℃ to 70℃ Storage Temperature Range -40℃ to 85℃ More then 90% Optical Transmittance (subjected to surface finishies) 50~300 Ω Resistanse between Leads Linearity Less than 1.5% Electrical Insulation Resistance 10MΩ...
  • Page 23: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 24 MEMO...
  • Page 25 MEMO...
  • Page 26 MEMO...
  • Page 28 L39ME0147 Rev.4...
