- Page 1 XL-WB8 Single Subwoofer Slot Port Bass System Application Guide Please read through this manual to familiarize yourself with your new speaker. Should your PowerBass Xtreme Woofer ever require service, you will need to have the original dated receipt.
- Page 3 ∆ Warning ∆ Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Autosound Speakers are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system.

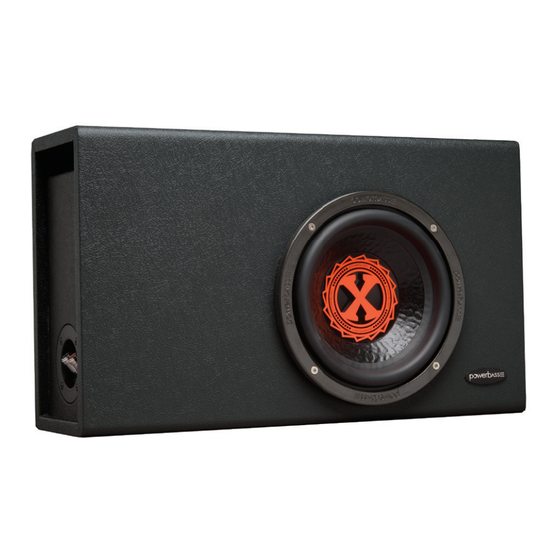

- Page 4 POWERBASS XTREME LOADED ENCLOSURE FEATURES Heavy-duty Box Design: The enclosure is constructed from 1/2” MDF panels that have been glued, braced and sealed. Each box is finished in a stylish RFG aviation grade vinyl covering. Slot Port Bass System: Utilizing a Slot Port design offers increased efficiency at low frequencies.
- Page 5 Notify your local PowerBass dealer immediately should you notice any damage prior to installing the unit. Be sure to keep the carton and packing material until your system is operational. The original boxes will do the best job of protecting your speaker system if they need to be transported.
- Page 6 • Use speaker wire large enough to carry the full power of your amplifier. 14-gauge or larger should be adequate. (Speaker wire not included) Your PowerBass Bass Slot Port Subwoofer system needs to be installed some place where it can operate efficiently and not endanger the occupants of the vehicle.
-
Page 7: Wiring And Connections
WIRING AND CONNECTIONS The PowerBass Slot Port subwoofer system consists of a single 4-ohm voice coil woofer. Check to see that your amplifier is optimized to drive this load. A single compression terminal cup provides a quick and easy connection from your bass amplifier to your Slot Port system. -
Page 8: Sound Check
CROSSOVER SETTINGS The XL-WB8 is designed to reproduce low (bass) frequencies only. It does not contain a low pass filter, therefore a crossover network is required for proper operation. If your amplifier includes an electronic (active) crossover, it should be set between 80Hz and 90Hz. Optimum adjustment can be achieved after listening to your favorite music and varying the crossover frequency. -
Page 9: Care And Cleaning
ENCLOSURE DIMENSIONS AND SPECIFICATIONS 5.43" (138mm) 11.22" (285mm) 19.21" (488mm) Woofer Clearance 0.48" (12mm) NOTE: Allow at least 3/4 inch (19mm) clearance in front of the woofer cone to accomodate speaker excursion while playing music. Any obstruction of cone movement will damage the woofer. -
Page 10: Warranty Notes
PowerBass Importer/Distributor in your country. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. - Page 11 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
- Page 12 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
