Summary of Contents for PowerBass XPRO-65CX

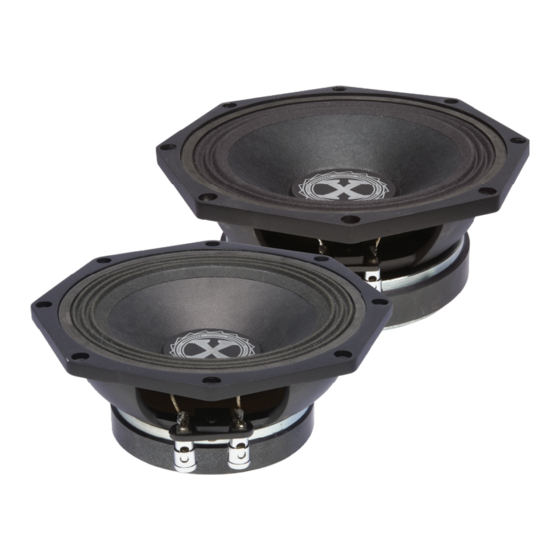

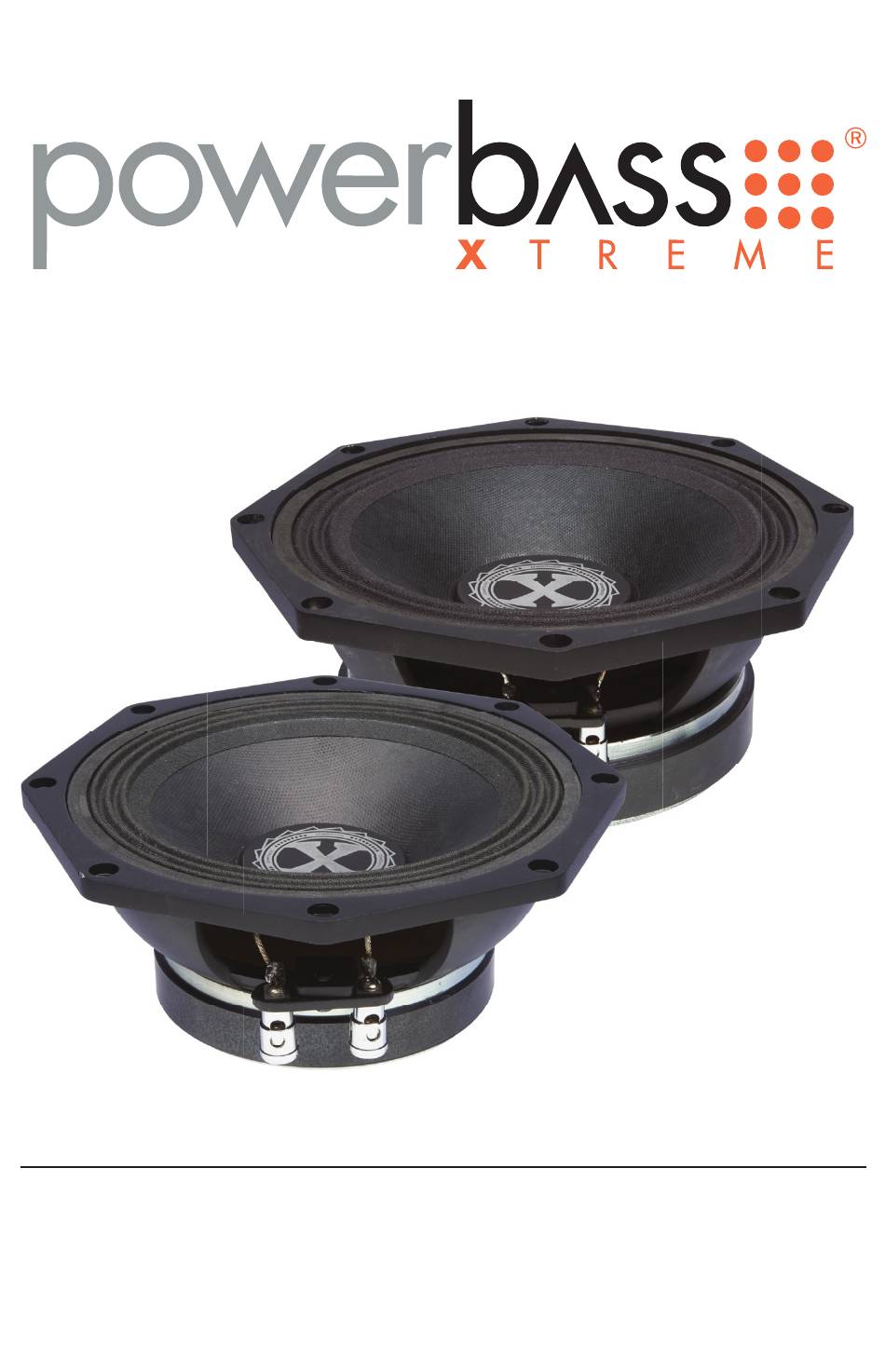

- Page 1 XPRO-65CX XPRO-8CX XPRO PROFESSIONAL MID-RANGE DRIVERS Application Guide...
- Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result...
- Page 4 Triple Roll Cloth Surround for precise linear controlled excursion Large Heat Dissipating Voice Coil 2” TFG Former with CCAW Winding (1.5” Voice Coil on XPRO-65CX) Chrome Push Input Terminal accepts up to 8-ga speaker wire for maximum current transfer Die-Cast Aluminum Basket And Protective Grill Included...
-
Page 5: Wiring Examples
WIRING EXAMPLES Your PowerBass Xtreme XPRO Mid Range driver uses a single 4-OHM voice coil. It is important to know the limits of your amplifier to optimize its performance. You can vary the impedance by altering the wiring configurations: Series, Parallel, or Series-Parallel. Choose the wiring diagram below that corresponds to the number of speakers in your system and the impedance stability of your amplifier. -
Page 6: Installation Precautions
INSTALLATION EXPERIENCE Installation of PowerBass Xtreme speakers requires experience with a variety of mechanical procedures including enclosure construction. This manual only provides general installation and operation instruc- tions. If you have any reservations about your installation skills, please contact your local Authorized PowerBass Xtreme dealer for assistance. -
Page 7: Door Mounting
• Check to see if there is enough clearance behind the mounting surface before drilling holes or install- ing screws for proper speaker ventilation. • Also make sure there’s enough front clearance for speaker cone excursion. Failure to do this could cause the cone to vibrate against any obstructing object damaging the speaker. - Page 8 INSTALLING THE MID RANGE DRIVER Determine where the speaker will be mounted. Make sure there is a flat area large enough for the speaker to fit properly. An uneven mounting surface can damage the driver. Check to make sure the space you have selected for the speaker will not interfere with the operation of the vehicle.
- Page 9 PARAMETERS FOR XPRO MID RANGE DRIVERS (due to Constant Improvement, Specification and Parameter are subject to change without notice) XPRO-65CX XPRO-8CX VC Impedance (OHMs) Test Impedance (OHMs) Fs (Hz) SD (sqCM) 136.85 213.82 Vas (Ltr) 10.12 10.03 Cms (μM/N) 380.43 154.5...
- Page 10 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
- Page 11 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2016 PowerBass USA, Inc.
- Page 12 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 2133 South Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
