X L M a r i n e S p e a k e r s
Application Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xtreme XL-652M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBass Xtreme XL-652M

Summary of Contents for PowerBass Xtreme XL-652M

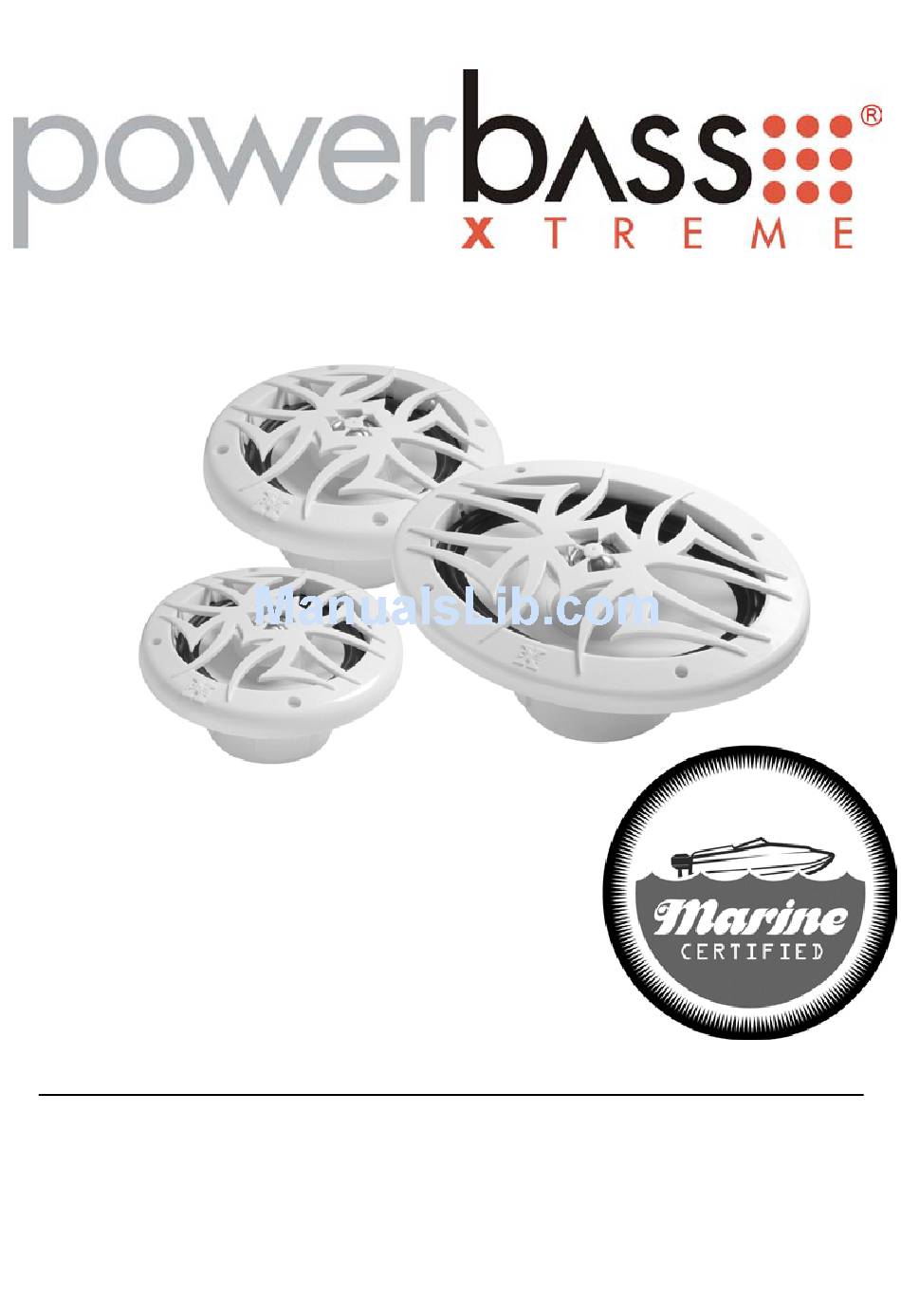

  • Page 1 X L M a r i n e S p e a k e r s Application Guide...
  • Page 2 PowerBass Xtreme Speakers are capable of producing sound pressure levels well over 160 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage...
  • Page 3 XL MARINE CERTIFIED SPEAKER FEATURES Flush Mount Integrated Design: The custom grill and basket assembly are mated using stainless steel hardware. To further insure longevity, the frame was constructed using high strength Polyamide plastic—a material chosen for its exceptional hardness, high impact and abrasion resistance. Ultra Violet Treatment: A UV stabilizer has been added to protect the white plastic frame from harmful rays of the sun--even the magnet structure has been covered to protect the motor assembly from the elements.
  • Page 4 SPECIFICATIONS FOR POWERBASS XTREME XL MARINE SPEAKERS (Due to Constant Improvements, Specifications and Parameters are subject to change without notice.) Model No. Size Nominal Frequency...

  • Page 5: General Installation Tips

    Installation of marine audio speakers can require extensive experience with a variety of mechanical and electrical procedures. Although this application guide explains how to install PowerBass Xtreme marine speakers in a general sense, it may not show the exact installation method for your particular situation. If you feel unsure about personally installing the speaker system, don’t attempt the installation yourself.

  • Page 6: Preparing For Installation

    (see Fig 1). PowerBass offers several sizes in it’s XL marine series designed to make fitting your vessel easier.

  • Page 7: Speaker Location

    SPEAKER LOCATION The sound produced by your PowerBass XL coaxial speakers is directional. Find the best location for stereophonic sound. Adding more PowerBass Xtreme speakers to the system will not only help to balance the sound, but it will increase the power handling of the system enabling it to play louder.

  • Page 8: Mounting Instructions

    Fig. 2 MOUNTING INSTRUCTIONS The following drawing shows the typical flush mount installation into a fiberglass panel using the supplied hardware.
  • Page 9 #8 SCREW: PILOT HOLE CHART Fiberglass Thickness Recommended Pilot Hole Drill Size 0.125 in. (3.18 mm) or less 7/64 in. (2.78 mm) pilot hole Foam core / fiberglass sandwich 7/64 in. (2.78 mm) pilot hole Larger than 0.125 in. (3.18mm) 1/8 in.
  • Page 10 WARNING: Do not attempt to remove the tweeter from the grill or the grill from the speaker! The tweeter is permanently fixed to the grill and its wiring is permanently attached to the speaker frame. Attempting to remove the grill or the tweeter will damage the speaker and void the warranty.
  • Page 11 shown below: After checking for clearance, cut the mounting hole in the door panel (see Tweeter Specifications for hole size). Mount the Flat Base from the outside with the mounting clip on the inside of the door panel. Secure the mounting clip to the Flat Base with the long silver screw provided.
  • Page 12 CROSSOVER NETWORK INSTALLATION AND WIRING Your PowerBass Autosound Component system contains two separate 2-way crossover networks. When choosing a location to mount the crossovers, keep in mind they contain electronic parts which can be damaged by moisture and dirt. Correct wiring of the crossover is critical to avoid damage to the speakers and...

  • Page 13: Wiring Procedures

    After connecting your new PowerBass XL marine speakers to the sound system you are ready to carry out a listening test. Please listen the first time at a low volume setting and...

  • Page 14: General Care

    This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2007 PowerBass USA, Inc.
  • Page 15 No person is authorized to assume for PowerBass any other liability in connection with the sale of this product. Please call (909) 923-3868 for PowerBass Customer Service.
  • Page 16 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
