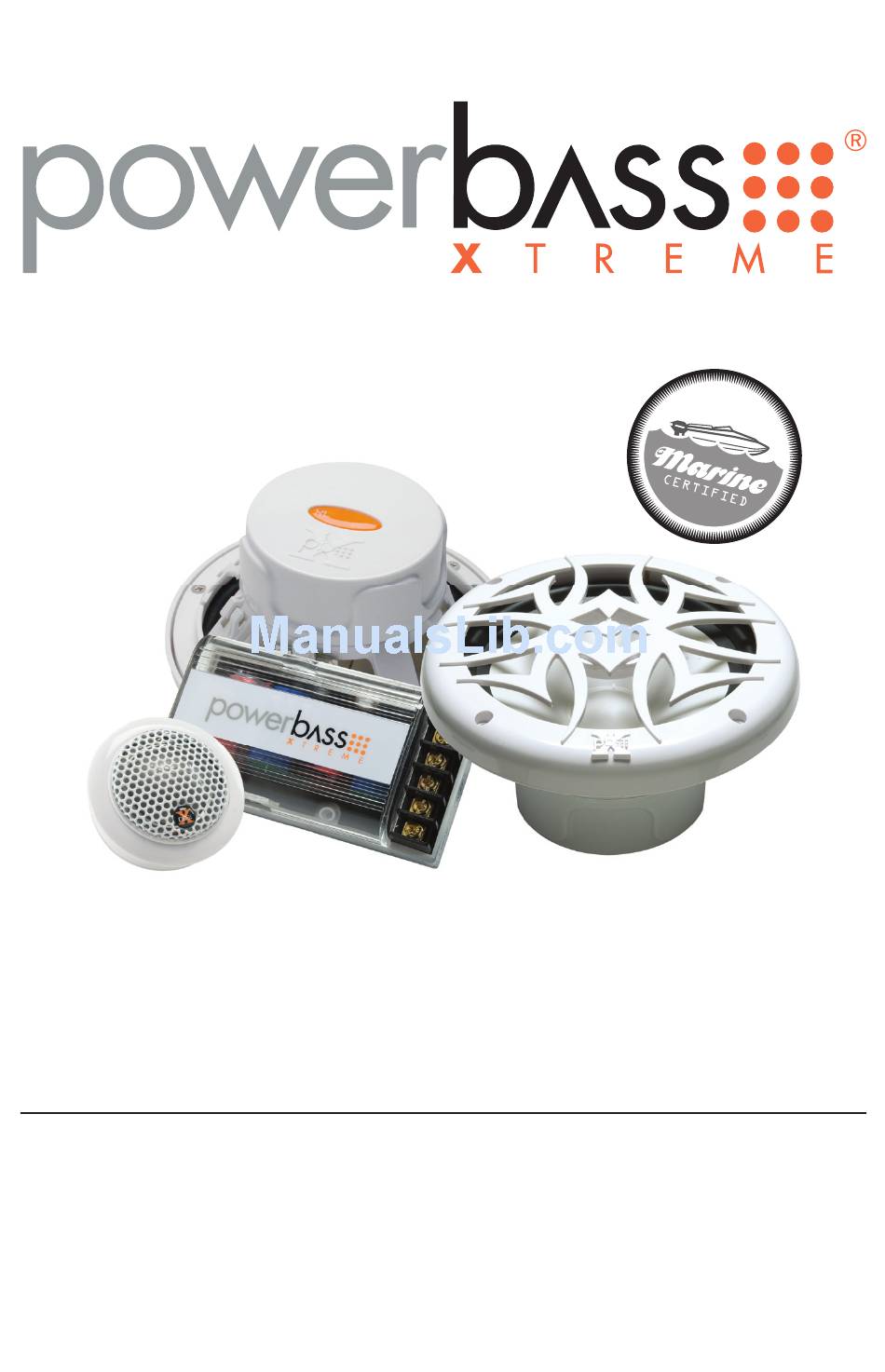

XL-60M
6.5" COMPONENT MARINE SPEAKERS
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass
Xtreme marine speakers ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xtreme XL-60M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBass Xtreme XL-60M

Summary of Contents for PowerBass Xtreme XL-60M

  • Page 1 XL-60M 6.5" COMPONENT MARINE SPEAKERS Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Xtreme marine speakers ever require service, you will need to have the original dated receipt.
  • Page 2 160 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse...
  • Page 3 XL MARINE CERTIFIED SPEAKER FEATURES Flush Mount Integrated Design: The custom grill and basket assembly on the midrange are mated using stainless steel hardware. To further insure longevity, the frame was constructed using high strength Polyamide plastic—a material chosen for its exceptional hardness, high impact and abrasion resistance. Ultra Violet Treatment: A UV stabilizer has been added to protect the white plastic frame from harmful rays of the sun--even the magnet structure has been covered to protect the motor assembly from the ele-...
  • Page 4 SPECIFICATIONS FOR POWERBASS XTREME XL MARINE COMPONENT SPEAKERS (Due to Constant Improvements, Specifications and Parameters are subject to change without notice.) Model Size Nominal Frequency Sensitivity Magnet Size Power RMS/ Impedance Response 1W/1M Peak XL-60M 6.5” 4-ohm 67Hz-21kHz 93dB 15 oz.
  • Page 5 XL MARINE COMPONENT TWEETER SPECIFICATIONS (Due to Constant Improvements, Specifications and Parameters are subject to change without notice.) Dome Size Mounting Nominal Frequency Sensitivity Mounting Power RMS/ (Diameter) Impedance Response 1W/1M Depth Peak* 1” Titanium 1.9” 4-ohm 3KHz - 21 KHz 93dB 0.75”...

  • Page 6: General Installation Tips

    Installation of marine audio speakers can require extensive experience with a variety of mechanical and electri- cal procedures. Although this application guide explains how to install PowerBass Xtreme marine speakers in a general sense, it may not show the exact installation method for your particular situation. If you feel unsure about personally installing the speaker system, don’t attempt the installation yourself.

  • Page 7: Installation Application

    INSTALLATION APPLICATION Your PowerBass XL marine midrange speakers are specifically designed for boating and water sport applica- tions. Although the speakers do not require a sealed enclosure, air space behind the speaker from 0.2 – 0.5 cu feet (6 – 15 liters) is recommended for best sound reproduction. To prevent the sound coming off the front of the speaker from radiating back to sound from the rear of the speaker it is recommended to use a factory location or find a spot with a semi-isolated rear chamber (see Fig 1).

  • Page 8: Speaker Location

    The sound produced by your PowerBass XL coaxial speakers is directional. Find the best location for stereo- phonic sound. Adding more PowerBass Xtreme speakers to the system will not only help to balance the sound, but it will increase the power handling of the system enabling it to play louder.
  • Page 9 POWER CONNECTION The following drawing shows the typical flush mount installation into a fiberglass panel using the supplied hardware. #8 SCREW: PILOT HOLE CHART Fiberglass Thickness Recommended Pilot Hole Drill Size Marine Speaker Dimensions 0.125 in. (3.18 mm) or less 7/64 in.
  • Page 10 Fig. 3 Fig. 4 Fig. 5 Use template sheet inside Cut hole Drill pilot hole (see chart) carton to trace onto mounting location hole Fig. 6 Push onto correct size speaker terminal...
  • Page 11 Flush Mounting (Type A) The best location for the tweeter is usually high up on a flat surface and as far forward as pos- sible without interference from other accessories. If the desired location is flat and enough depth exists behind the mounting panel allows the use of the flush mount housing, follow the drawing as shown below: After checking for clearance, cut the mounting hole in the panel (see Tweeter Template for hole size) following same procedures shown in fig.3 and 4 for the midrange.
  • Page 12 MET Component Tweeter These high quality tweeters come complete with two mounting housings for installation versatil- ity. Typically tweeters should be mounted on axis and as close to ear level as possible and as close to the mid range as possible. After you have chosen the housing to be used, gently press the tweeter in the proper mounting base.
  • Page 13 CROSSOVER NETWORK INSTALLATION AND WIRING Your PowerBass XL Marine Component system contains two separate 2-way crossover networks. When choosing a location to mount the crossovers, keep in mind they contain electronic parts which can be damaged by moisture - avoid areas where standing water may collect in the vessel.

  • Page 14: Wiring Procedures

    Connect the other end of the speaker wire to the radio (or amplifier) in accordance with its owner’s manual. After connecting your new PowerBass XL marine speakers to the sound system you are ready to carry out a listening test. Please listen the first time at a low volume setting and check to make...

  • Page 15: General Care

    UV inhibitors maybe affected and/or the plastics may discolor. Product Disposal – Certain international, national and/or local laws and/or regulations may apply regarding the disposal of this product. For further detailed information, please contact the retailer where you purchased this product or the PowerBass Importer/Distributor in your country.
  • Page 16 PowerBass and the CEA want you listening for a lifetime! This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2009 PowerBass USA, Inc.
  • Page 18 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 20 PowerBass Xtreme – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
