PowerBass XL-PS200 Application Manual

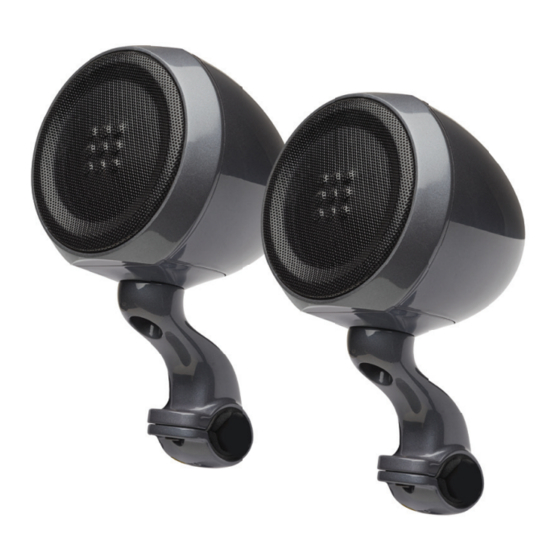

2.75" amplified bluetooth speaker pods
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XL-PS200
XL-PS200
2.75" AMPLIFIED BLUETOOTH SPEAKER PODS
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your
PowerBass Xtreme Powersports Soundbar ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-PS200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBass XL-PS200

Summary of Contents for PowerBass XL-PS200

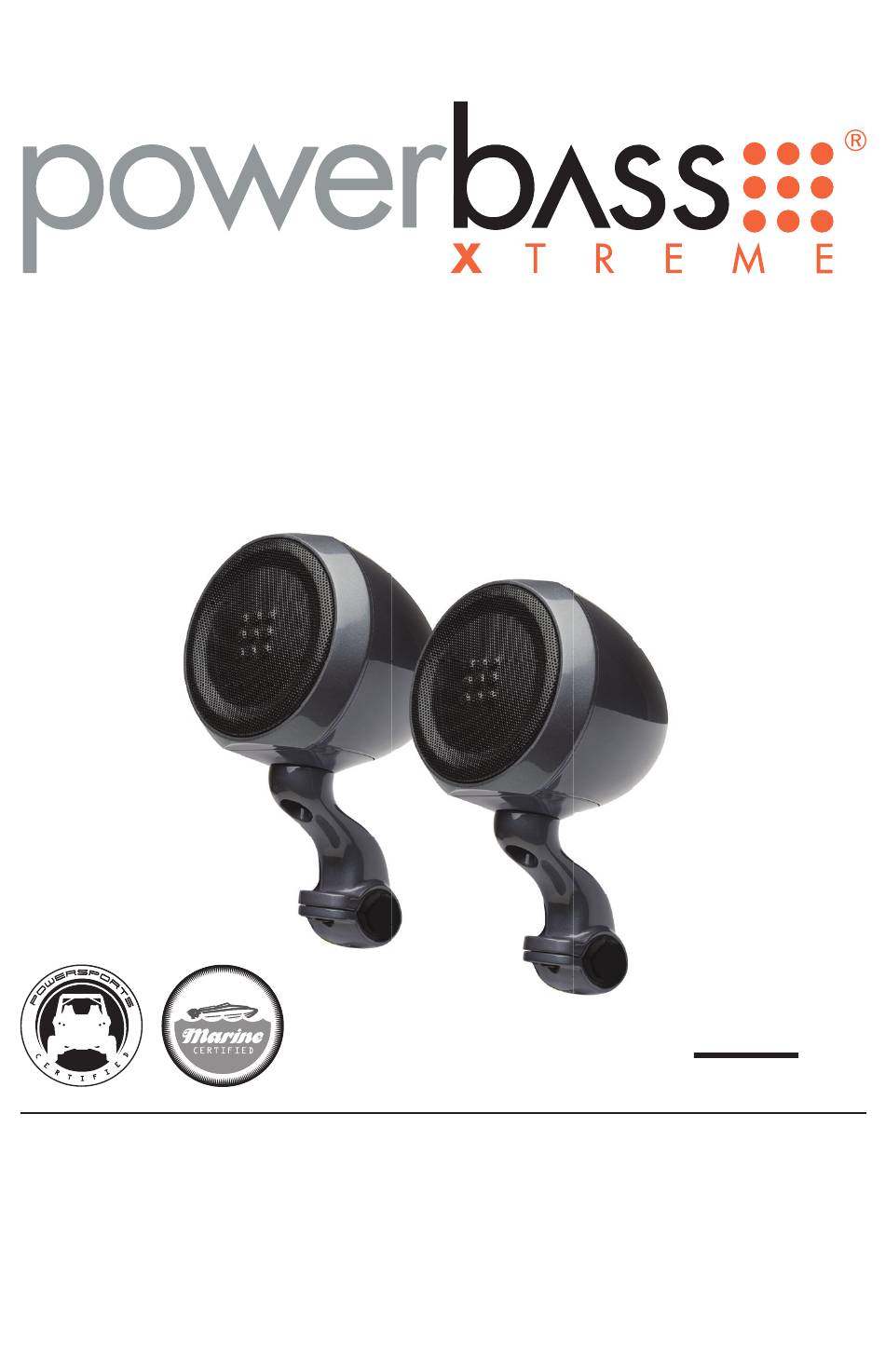

  • Page 1 XL-PS200 XL-PS200 2.75” AMPLIFIED BLUETOOTH SPEAKER PODS Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Xtreme Powersports Soundbar ever require service, you will need to have the original dated receipt.
  • Page 2 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or...

  • Page 3: Specifications

    SPECIFICATIONS 2.75” Amplified Bluetooth Speaker Pods Mounting: 1” or 7/8” Handle Bar Mount with adapter included Connections: 12V Power, Ground and Ignition Switch Compatible with Android, iPhone and most other Bluetooth enabled devices Range: 30 Feet Adjustments: Power, Track up/down, Volume up/down and Pause Voltage: 8.4V-17.4V Frequency Response: 120Hz-20kHz Fig.1...

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS Fig. 2 Fig. 3...
  • Page 5 XL-PS200 WIRING DIAGRAM Fig. 4 YELLOW WIRE - 12V Constant Power Lead BLACK WIRE - Ground Lead RED WIRE - 12V Ignition Lead XL-PS200 WIRING INSTRUCTIONS 1) Connect the yellow power wire to the battery positive. 2) Connect the red wire to the ignition switch. This will turn your pods off from the ignition when your motorcycle or vehicle is turned off.

  • Page 6: Controller Layout

    CONTROLLER LAYOUT Fig. 5...

  • Page 7: Controller Operation

    CONTROLLER OPERATION 1) POWER BUTTON Press the button down to power the controller on/off. Please note the PS-200 must be powered on from the main pod before each use. Anytime the PS-200 is powered down the power button must be pressed to power the pod system up for use.
  • Page 8 XL-PS200 is now ready to pair with your device. 3) Go into the Bluetooth settings of your device and search for XL-PS200 to pair. Once paired, there will be an audible beep to confirm that the XL-PS200 and your Bluetooth device has paired successfully.

  • Page 9: Troubleshooting Tips

    PowerBass Importer/Distributor in your country. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2020 PowerBass USA, Inc.
  • Page 10 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 12 PowerBass Xtreme – A division of PowerBass USA, Inc. 2133 S. Green Privado, Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
