- Page 1 3XL-5202 3XL-6502 3XL-6802 3XL-6902 3XL SPEAKER SERIES Application Guide...
- Page 3 Speakers are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.
-
Page 4: Additional Features

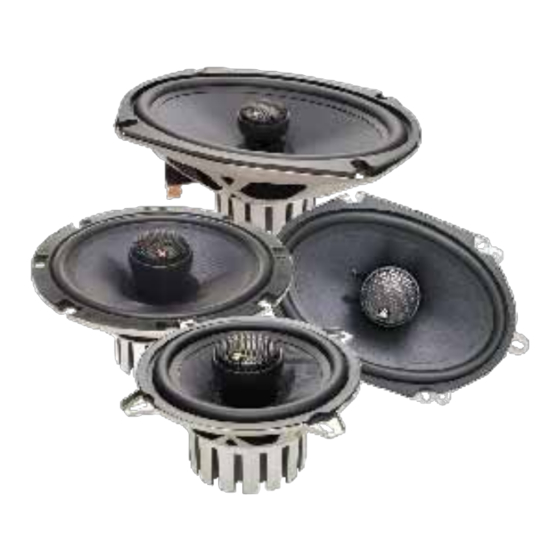

POWERBASS XTREME 3XL SPEAKER FEATURES Dual Gap Technology: Proprietary neodymium magnet assembly with finned heat sink allows the speaker to play louder and more efficiently with less distortion. Stamped Basket (Stainless Steel Finish): These rigid baskets are designed to give the moving parts of the speaker the solid, corrosion free platform they need to perform for even the most discriminating listener. - Page 5 SPECIFICATION FOR POWERBASS 3XL SPEAKERS (due to Constant Improvement, Specification and Parameter are subject to change without notice) Model Size Nominal Impedance Frequency Response Sensitivity Magnet Size Mounting Depth Power 1W/1M RMS/Max 3XL-5202 5.25” 3 Ohm 64 Hz - 22 kHz 90 dB 2.6”...
- Page 6 INSTALLATION EXPERIENCE Installation of PowerBass Xtreme Speakers requires experience with a variety of mechanical and electrical procedures. This manual provides only general installation and operation instructions. If you have any reservations about your installation skills or lack of the proper tools, please contact your local PowerBass Xtreme dealer for assistance.
-
Page 7: Preparing For Installation
• These PowerBass Xtreme speakers can be used above or below the mounting hole. Typically, your vehicle factory’s speaker cutouts will accommodate these new speakers without any modifications. When the speaker has been correctly installed, there should be no air leaks between the front and back of the speaker. -
Page 8: Rear Deck Mounting
Follow the directions supplied with the tool and gently pry up the grill. Should you decide to install your PowerBass speakers in locations other than those provided by the automaker, make certain that the location you choose is clear of all obstructions in front of and behind the panel. - Page 9 EXAMPLE OF MOUNTING Mounting Options A. Rear Deck Mounting B. Multiple Mounting Multi-Speaker Installation Wiring Diagram ILLUSTRATION OF REAR DECK MOUNT INSTALLATION A. Speaker mounting depth and hole cutout diameter. B. Cut hole using saber saw/ utility knife. C. Connect wiring to speaker terminals. Make sure of polarity (+)positive (-)negative. Using a philips screwdriver secure speakers and attach grill, if applicable.
- Page 10 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc.
- Page 11 PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the fol- lowing terms: PowerBass Xtreme Speakers are to be free of defects in material and workmanship for a period of one (1) year. The warranty is extended to three (3) years for parts and labor, if an Authorized PowerBass Xtreme Dealer completes the installation.
- Page 12 Revised 2008 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
