PowerBass XL-65SS Application Manual

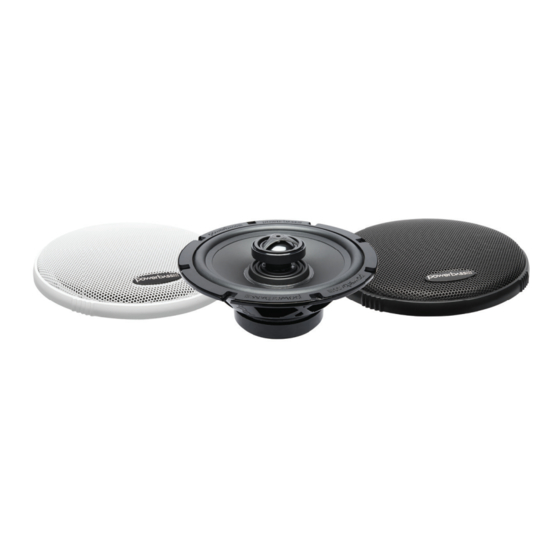

6.5" powersport speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XL-65SS
6.5" POWERSPORT SPEAKER
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your
PowerBass Xtreme marine speaker ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-65SS and is the answer not in the manual?

Questions and answers

Related Manuals for PowerBass XL-65SS

Summary of Contents for PowerBass XL-65SS

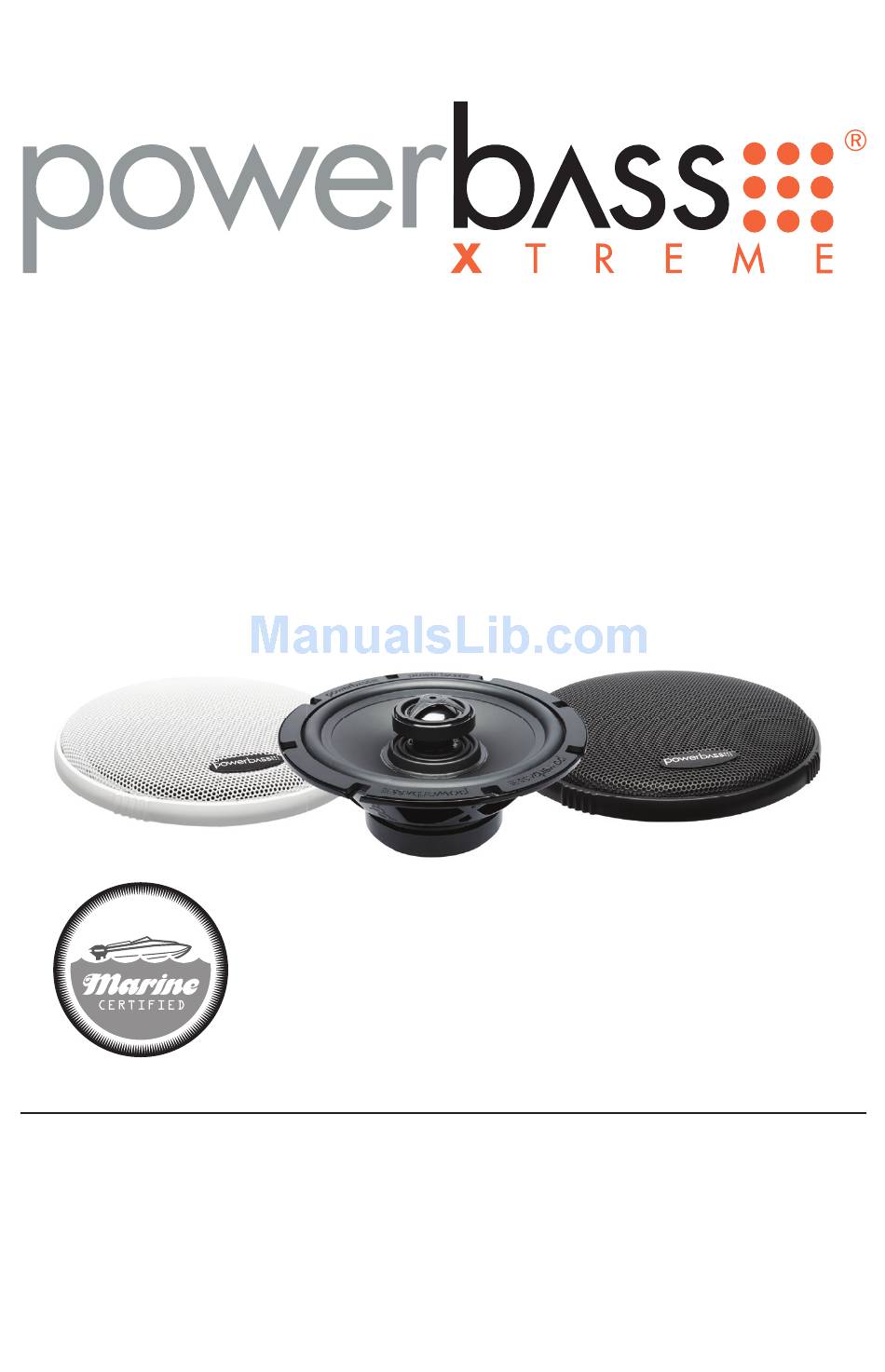

  • Page 1 XL-65SS 6.5” POWERSPORT SPEAKER Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Xtreme marine speaker ever require service, you will need to have the original dated receipt.
  • Page 2 160 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse...
  • Page 3 XL POWERSPORT SPEAKER FEATURES Sealed Cone Design: A unique interior trampoline surround seals the pole piece to protect the voice coil from water and moisture. The interior surround and outer surround are constructed of synthetic rubber for long life and UV resistance. This in conjunction with the Polypropylene cone material offers increased performance even in exposed mounting locations.
  • Page 4 SPECIFICATIONS FOR POWERBASS XTREME XL MARINE COMPONENT SPEAKERS (Due to Constant Improvements, Specifi cations and Parameters are subject to change without notice.) Model Size Nominal Frequency Sensitivity Power RMS/ Impedance Response 1W/1M Peak XL-65SS 6.5” 4-ohm 73Hz-20kHz 93dB 40W/80W XL 65SS Speaker Dimensions 6.5”...

  • Page 5: General Installation Tips

    PowerBass audio or marine dealer about professional installation options. GENERAL INSTALLATION TIPS Your PowerBass XL speakers were specially designed for providing high-fidelity sound out in the harsh environment. Despite their rugged construction, it is possible to damage your speaker if they are improperly used.

  • Page 6: Installation Application

    • Eye protection NOTE: The stainless steel hardware supplied with your PowerBass Xtreme speakers has been chosen to resist rust and corrosion. If the particular hardware supplied will not work for your installation purposes, please be sure to use only appropriate marine grade (stainless steel) mounting hardware.

  • Page 7: Speaker Location

    The sound produced by your PowerBass XL coaxial speakers is directional. Find the best location for stereo- phonic sound. Adding more PowerBass Xtreme speakers to the system will not only help to balance the sound, but it will increase the power handling of the system enabling it to play louder.
  • Page 8 MOUNTING The following drawing shows the typical flush mount installation into a fiberglass panel using the supplied hardware. NOTE: Be sure to use the supplied black putty to secure the mesh grill to the mounting ring. Always follow proper safety procedures. Use eye-protection at all times and a dust mask and gloves when cutting.
  • Page 9 Fig. 3 Fig. 4 Fig. 5 Use template sheet inside Cut hole Drill pilot hole (see chart) carton to trace onto mounting location hole Connect to radio or amplifier Fig. 6 Push onto correct size speaker terminal...

  • Page 10: Wiring Procedures

    PowerBass Importer/Distributor in your country. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2015 PowerBass USA, Inc.
  • Page 11 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 12 PowerBass Xtreme – A division of PowerBass USA, Inc. 2133 S. Green Privado, Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
