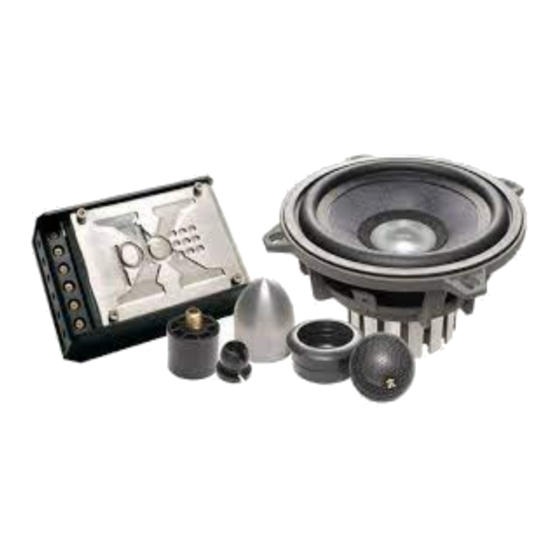

Summary of Contents for PowerBass 3XL-50C

  • Page 1 3XL-50C 3XL-60C 3XL SPEAKER CONVERTABLES Application Guide...
  • Page 3 Speakers are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.
  • Page 4 2 IN 1 CONVERTIBLE SPEAKER FEATURES Dual Gap Technology: Proprietary neodymium magnet assembly with finned heat sink allows the speaker to play louder and more efficiently with less distortion. Cast Aluminum Basket: Cast baskets give superior stiffness and better heat dissipation while offering a acoustically inert platform.
  • Page 5 90 W / 180 W INSTALLATION EXPERIENCE Installation of PowerBass Xtreme Speakers requires experience with a variety of mechanical and electrical procedures. This manual provides only general installation and operation instructions. If you have any reservations about your installation skills or lack of the proper tools, please contact your local PowerBass Xtreme dealer for assistance.
  • Page 6: Preparing For Installation

    6. Do not mount any speakers or external crossovers where they will get wet. 7. Remember the Golden Rule “Measure twice…cut once.” When installed properly, your PowerBass Xtreme component system will make a remarkable improvement in the quality of virtually any mobile audio sound system and give years of superior performance.
  • Page 7: Installation Procedures

    • These PowerBass Xtreme speakers can be used above or below the mounting hole. Typically, your vehicle factory’s speaker cutouts will accommodate these new speakers without any modifications. When the speaker has been correctly installed, there should be no air leaks between the front and back of the speaker.
  • Page 8 Custom Installation Should you decide to install your PowerBass speakers in locations other then those provided by the automaker, make certain that the location you choose is clear of all obstructions in front of and be- hind the panel. If it is necessary to cut any metal, take care to insure you do not weaken the vehicles structural integrity.
  • Page 9 Black sheet metal screws have been provided to attach the surface base to the door panel. POWERBASS XTREME COMPONENT TWEETERS These high quality tweeters come complete with several mounting housings for installation versatility. After you have chosen the housing to be used, gently press the tweeter in the proper mounting base.
  • Page 10 EXAMPLE OF MOUNTING If the tweeter has to be removed from the mounting cup, insert a small screwdriver in the back of the tweeter and carefully push the tweeter from the mounting cup.
  • Page 11 COMPONENT SET CROSSOVER INSTALLATION AND WIRING The 3XL Series component crossover network incorporates a variety of high quality compo- nents to insure proper sound separation between the midrange speaker and the tweeter. The most common place to install the crossover network is on a flat surface inside the door. However, the door is subject to constant vibration from repeated opening and closing which can over time damage the electronic parts found inside the crossover.
  • Page 12 COMPONENT TO COAXIAL ASSEMBLY In a coaxial application, the tweeter is placed directly in the center of the woofer—replacing the aluminum phase plug. To do this, unscrew and remove the center bullet from the threaded base by turning the phase plug counter-clockwise as shown below. (We suggest you keep the phase bullet for future use).
  • Page 13 Finally feed the tweeter’s speaker wire from the tweeter assembly through the basket and magnet assembly. Thread the pole piece to the basket (where the phase bullet was removed) by turning clockwise taking care not to damage the midrange voice coil assembly. Tweeter Assembly Connect speaker wire...
  • Page 14 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2008 PowerBass USA, Inc.
  • Page 15 PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the fol- lowing terms: PowerBass Xtreme Speakers are to be free of defects in material and workmanship for a period of one (1) year. The warranty is extended to three (3) years for parts and labor, if an Authorized PowerBass Xtreme Dealer completes the installation.
  • Page 16 Revised 2008 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
