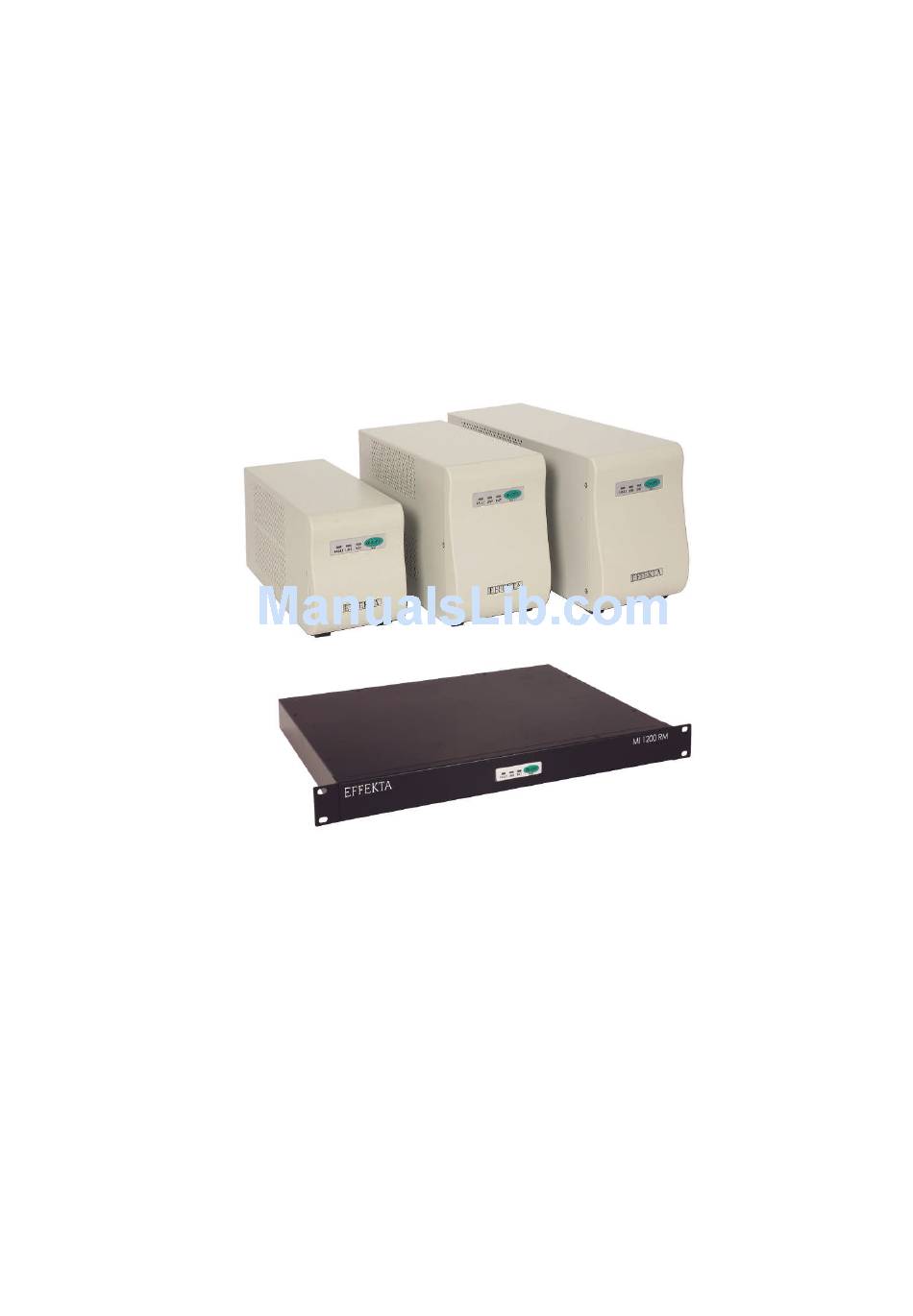

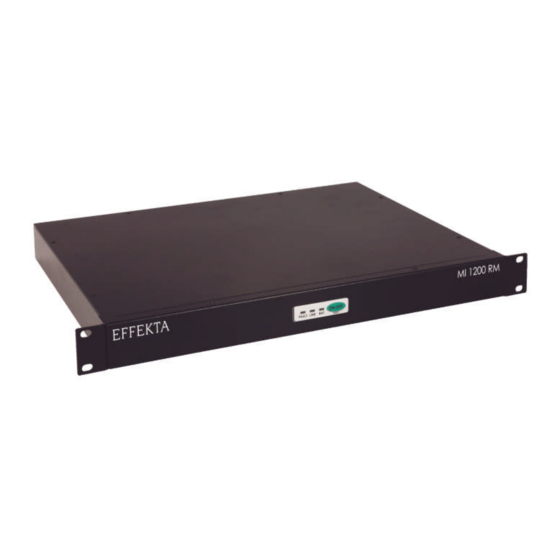

  • Page 1 EFFEKTA UPS-Series MI technical description Uninterruptible power supply Product-description MI-Series 400 VA - 1200 VA MIRM-Series 600 VA / 1200 VA...
  • Page 2: Table Of Contents

    EFFEKTA UPS-Series MI technical description CONTENTS 1. Introduction --------------------------------------- 4 2. Description and Indicators ---------------------- 5 3. Accessories ---------------------------------------- 6 4. Installation ----------------------------------------- 7 5. Operation -------------------------------------------7 6. Maintenance --------------------------------------- 8 7. Specifications ------------------------------------- 8 8. Troubleshooting guide --------------------------- 9 9.
  • Page 3: Technical Description

    EFFEKTA UPS-Series MI technical description TÜV Safety statement (English) CAUTION 1. The sound pressure level at the operators position according to IEC 704-1:1982 is equal or less than 70dB (A). 2. This unit should be installed from service personnel. 3. With the installation of this equipment it should be prevented, that the sum of the leakage current of the UPS and the connected consumer does not exceed 3.5mA.
  • Page 4: Introduction

    EFFEKTA UPS-Series MI technical description 1. Introduction The product is STANDBY UPS with the newest technology and powerful function. All these series are with AVR function allows wide input voltage range, including on line voltage boost-up and buck- down. An ideal protection equipment for critical connected loads. It is based on microprocessor controls, with utility power connected, the charging is ongoing;...
  • Page 5: Description And Indicators

    EFFEKTA UPS-Series MI technical description 2. Description and Indicators 2-1 Front and rear panel descriptions 1. LINE: On-line mode. 2. BATT: INV mode. 3. ON/OFF/TEST/SILENT key 4. FAULT: UPS in faulty or overload condition. 5. Communication port. 6. Output sockets.
  • Page 6: Accessories

    EFFEKTA UPS-Series MI technical description 2-2 Indicators and buzzer LINE BATT FAULT Buzzer Condition Line normal FLASH Auto-restart Continuously Inverter fault or Over load Twice in every 10 sec Inverter on FLASH Twice in every 10 sec No load, shutdown after 30±5 sec...
  • Page 7: Installation

    EFFEKTA UPS-Series MI technical description 4. Installation 4-1. Install the UPS in a protected area with adequate air flow and free of excessive dust. Do not operate the UPS where the temperature and humidity are outside the specified limits. 4-2. Check if the voltage as shown on the model label (on the rear cover) corresponds to your local power supply. If it does not, consult your dealer.
  • Page 8: Maintenance

    EFFEKTA UPS-Series MI technical description 5-6. Loading condition - Turn on the equipment(s) which connected with the UPS one by one to reduce the inrush current at the turn-on moment Operating at overload, state shown at the table below. Load...
  • Page 9: Troubleshooting Guide

    EFFEKTA UPS-Series MI technical description Troubleshooting guide PROBLEM POSSIBLE CAUSE ACTION The UPS can only work on 1. A loose power plug 1. Re-plug the power core tightly battery mode even if the utility 2. Fuse burn out 2. Replace the fuse...
