3
CONNECTION AND MAINTENANCE

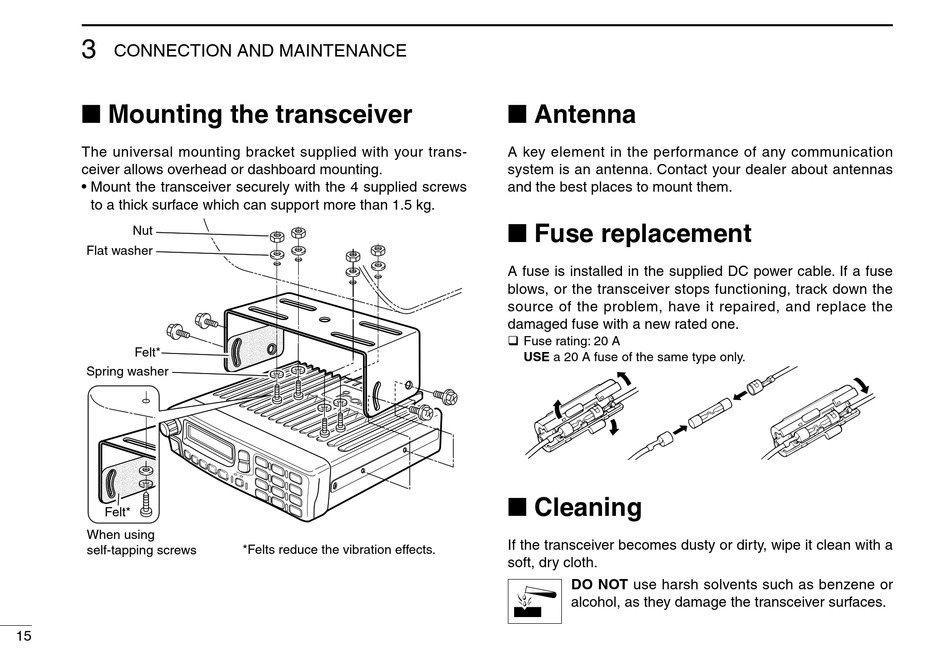

n Mounting the transceiver
The universal mounting bracket supplied with your trans-
ceiver allows overhead or dashboard mounting.
• Mount the transceiver securely with the 4 supplied screws
to a thick surface which can support more than 1.5 kg.
Nut
Flat washer
Felt*
Spring washer
Felt*
When using
self-tapping screws
15
*Felts reduce the vibration effects.
n Antenna
A key element in the performance of any communication
system is an antenna. Contact your dealer about antennas
and the best places to mount them.
n Fuse replacement
A fuse is installed in the supplied DC power cable. If a fuse
blows, or the transceiver stops functioning, track down the
source of the problem, have it repaired, and replace the
damaged fuse with a new rated one.
q Fuse rating: 20 A
USE a 20 A fuse of the same type only.
n Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
DO NOT use harsh solvents such as benzene or
alcohol, as they damage the transceiver surfaces.
