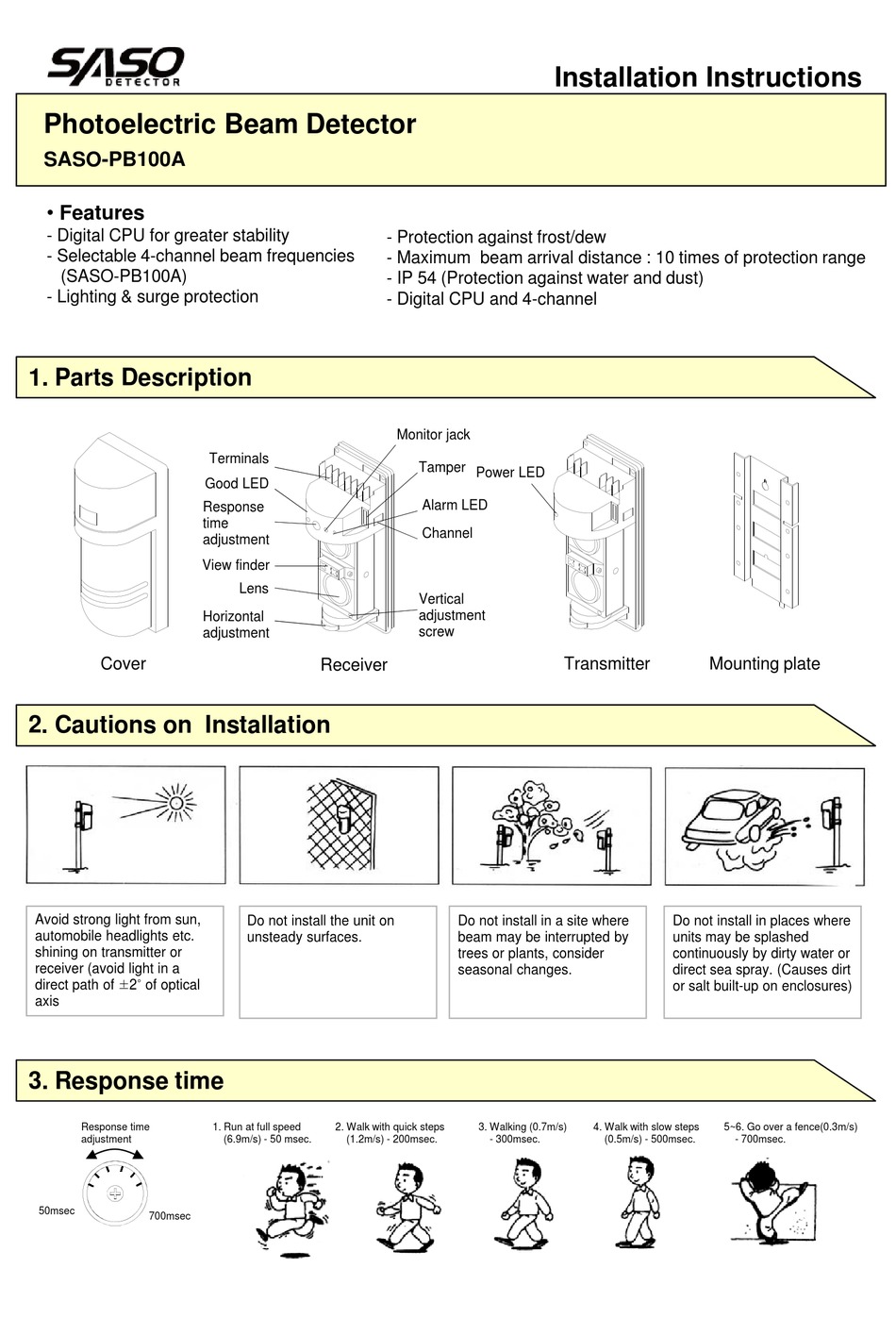

Saso PB100A Installation Instructions

Photoelectric Beam Detector
SASO-PB100A SASO PB100A
• Features
- Digital CPU for greater stability
- Selectable 4-channel beam frequencies
(SASO-PB100A)
- Lighting & surge protection
1. Parts Description
Cover
2. Cautions on Installation
Avoid strong light from sun,
automobile headlights etc.
shining on transmitter or
receiver (avoid light in a
direct path of ±2˚ of optical direct path of ±2 of optical
axis
3. Response time
Response time
adjustment
50msec
700msec
Terminals
Good LED
Response
time
adjustment
View finder
Lens
Horizontal
adjustment
Receiver
Do not install the unit on
unsteady surfaces.
1. Run at full speed 2. Walk with quick steps
(6.9m/s) - 50 msec. (1.2m/s) - 200msec.
Installation Instructions
- Protection against frost/dew
- Maximum beam arrival distance : 10 times of protection range
- IP 54 (Protection against water and dust)
- Digital CPU and 4-channel
Monitor jack
Tamper
Power LED
Alarm LED
Channel
Vertical
adjustment
screw
Do not install in a site where
beam may be interrupted by
trees or plants, consider
seasonal changes.
3. Walking (0.7m/s)
- 300msec.
Transmitter Mounting plate
Do not install in places where
units may be splashed
continuously by dirty water or
direct sea spray. (Causes dirt
or salt built up on enclosures) or salt built-up on enclosures)
4. Walk with slow steps 5~6. Go over a fence(0.3m/s)
(0.5m/s) - 500msec. - 700msec.
