Shock Detector
SASO-SH10
SASO-SH10
• Features
- Compact Design
- Dry Contact Relay Output
- Digital Filtering
1. Installation
① Unscrew the bottom and
open the cover
.
2. Parts
Front
3
. Functions
ON : Setting
OFF : Alarm
② Install detectors using tape
and/or screws
LED
Tamper Switch
Note : This sensor is designed to detect intrusion and to initiate an alarm,
it is not a burglar-preventing device. We are not responsible for damage, ,injury
or losses caused by accident, theft, natural disasters, abuse, misuse, abnormal usage,
faulty installation or improper maintenance.
• Functions
- Tamper Switch
- Reset Function with Timer
- Sensitivity Adjustment Function
Back
First Shock
A few seconds after the initial shock, the detectors resets DIP 1 Off)

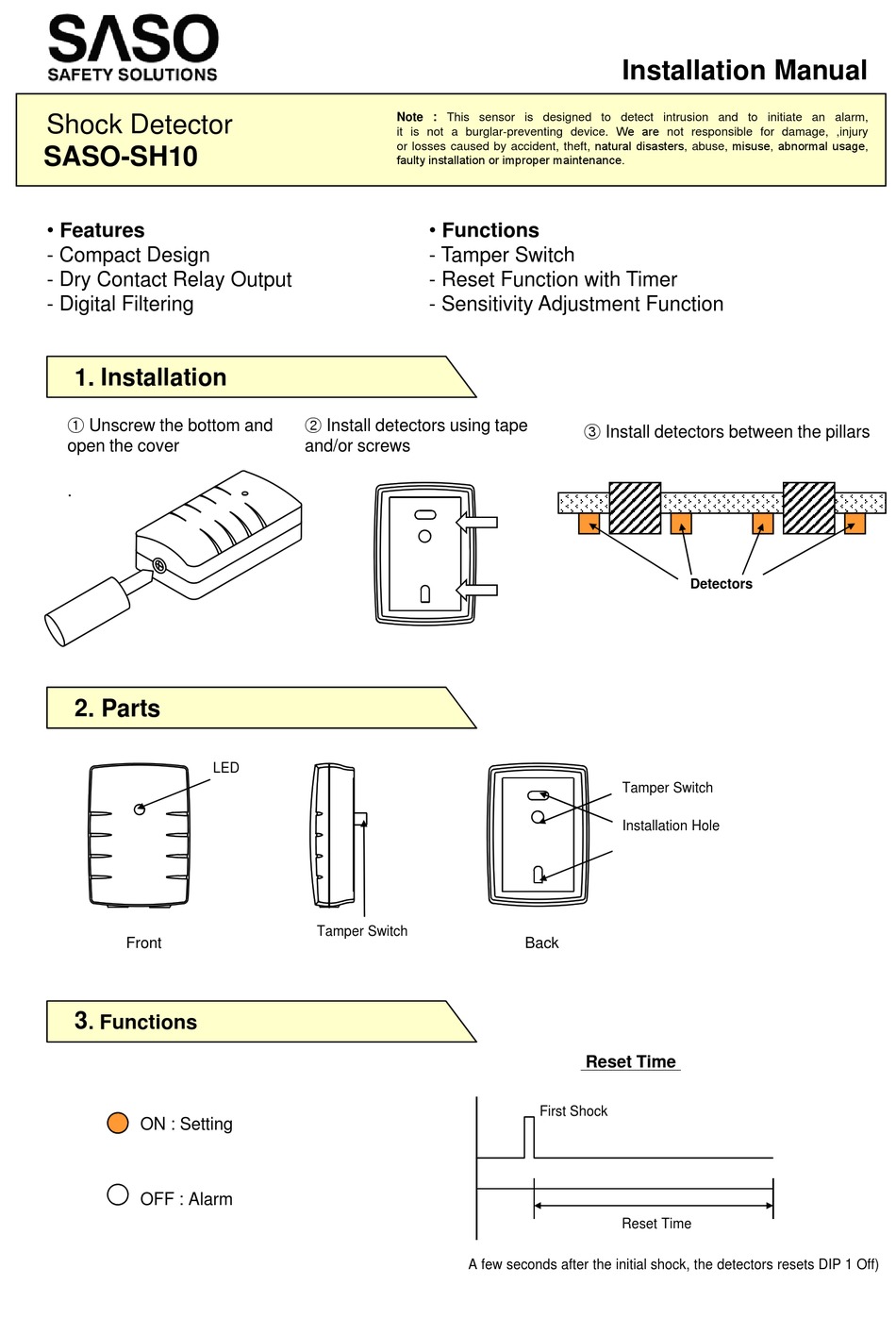

Installation Manual
③ Install detectors between the pillars
Detectors
Tamper Switch
Installation Hole
I
t ll ti
H l
Reset Time
Reset Time
Advertisement
Table of Contents
Related Manuals for Saso SASO-SH10
Summary of Contents for Saso SASO-SH10
- Page 1 Note : This sensor is designed to detect intrusion and to initiate an alarm, Shock Detector it is not a burglar-preventing device. We are not responsible for damage, ,injury or losses caused by accident, theft, natural disasters, abuse, misuse, abnormal usage, SASO-SH10 SASO-SH10 faulty installation or improper maintenance. • Features •...
- Page 2 4. Wires ① ② Color Color ③ BLUE Normal Close VCC(12V) ④ BLACK YELLOW Normal open ⑤ GREEN YL/WH Normal open Common ⑥ 5. Sensitivity Adjustment Adjust sensitivity on the PCB Decrease Increase Sensitivity Sensitivity 6. Operation 1. Detector operates when more than 2 shocks are detected 2.
