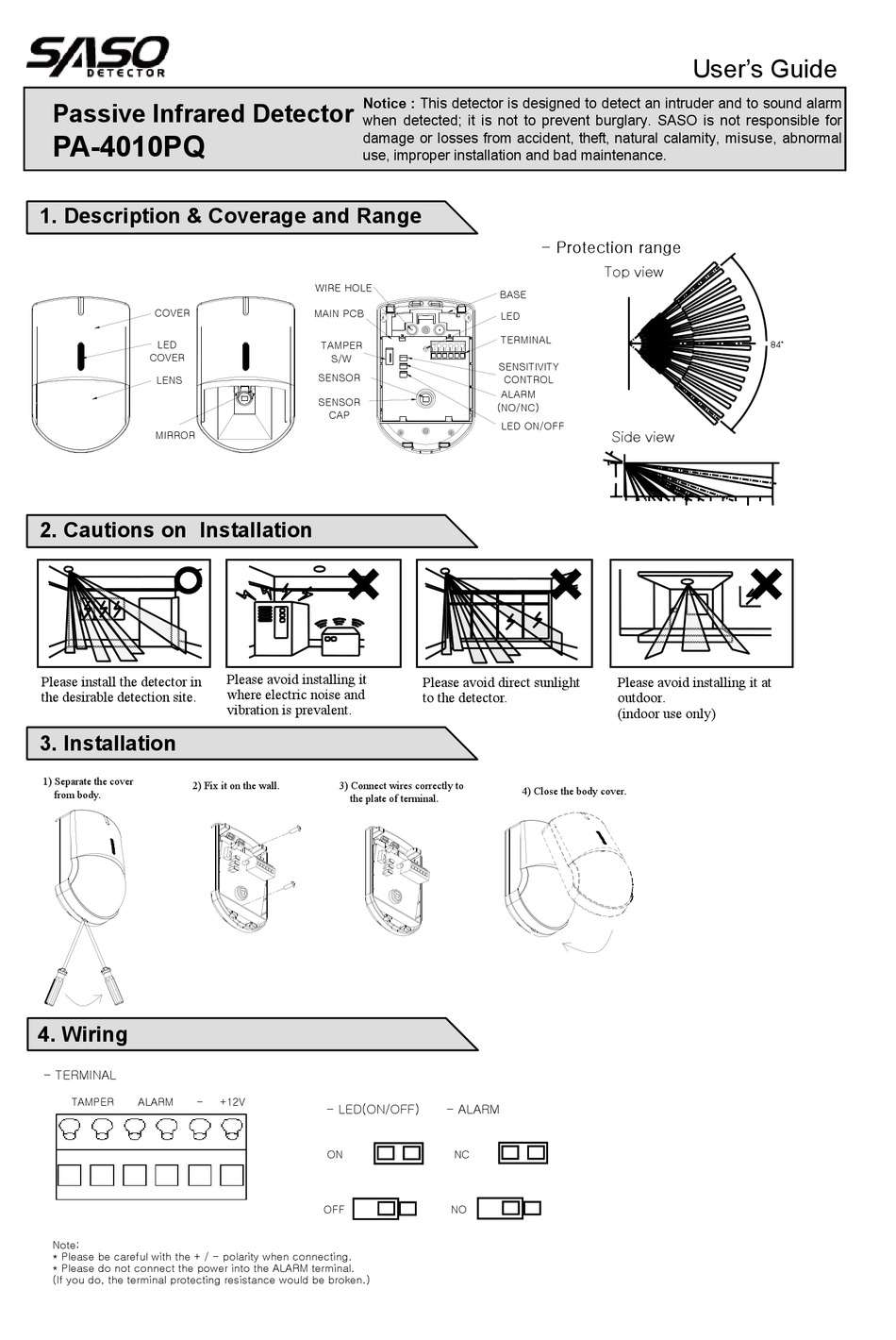

Saso PA-4010PQ User Manual

Passive Infrared Detector
PA-4010PQ PA 4010PQ
1. Description & Coverage and Range
COVER
LED
COVER
LENS
MIRROR
2. Cautions on Installation
Please install the detector in
the desirable detection site.
3. Installation
1) Separate the cover
2) Fix it on the wall.
from body.
4. Wiring
- TERMINAL
TAMPER ALARM -
Note;
* Please be careful with the + / - polarity when connecting.
* Please do not connect the power into the ALARM terminal.
(If you do, the terminal protecting resistance would be broken.)
Notice : This detector is designed to detect an intruder and to sound alarm
when detected; it is not to prevent burglary. SASO is not responsible for
damage or losses from accident, theft, natural calamity, misuse, abnormal
use, improper installation and bad maintenance.
WIRE HOLE
MAIN PCB
TAMPER
S/W
SENSOR
SENSOR
CAP
Please avoid installing it
where electric noise and
vibration is prevalent.
3) Connect wires correctly to
the plate of terminal.
+12V
- LED(ON/OFF)
ON
OFF
- Protection range
BASE
LED LED
TERMINAL
SENSITIVITY
CONTROL
ALARM
(NO/NC)
LED ON/OFF
Please avoid direct sunlight
to the detector
.
4) Close the body cover.
- ALARM
NC
NO
User's Guide
Top view
84˚
Side view
Please avoid installing it at
outdoor.
(indoor use only)
