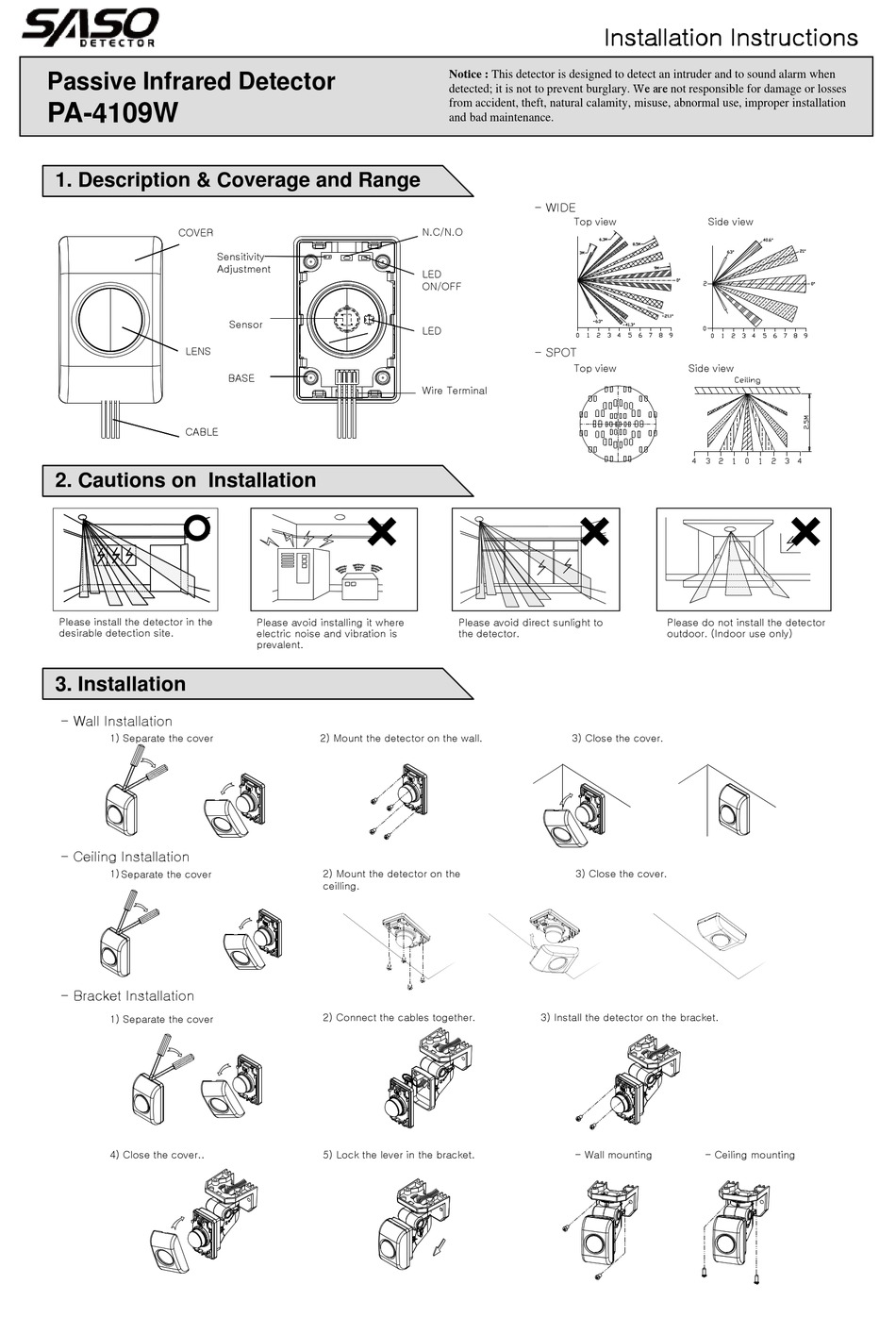

Saso PA-4109W Installation Instructions

Passive Infrared Detector
PA-4109W
1. Description & Coverage and Range
COVER
LENS
CABLE

2. Cautions on Installation

Please install the detector in the
desirable detection site.

3. Installation

- Wall Installation
1) Separate the cover
- Ceiling Installation
1) Separate the cover
- Bracket Installation k I ll i
1) Separate the cover
4) Close the cover.. 4) Close the cover..
Sensitivity
Adjustment
Sensor Sensor
BASE
Please avoid installing it where
electric noise and vibration is
prevalent.
2) Mount the detector on the wall.
2) Mount the detector on the
ceilling.
2) Connect the cables together.
5) Lock the lever in the bracket. 5) Lock the lever in the bracket
Notice : This detector is designed to detect an intruder and to sound alarm when
detected; it is not to prevent burglary. We are not responsible for damage or losses
from accident, theft, natural calamity, misuse, abnormal use, improper installation
and bad maintenance.
- WIDE
Top view
N.C/N.O
LED
ON/OFF
LED
- SPOT
Top view
Wire Terminal
Please avoid direct sunlight to
the detector.
3) Close the cover.
3) Close the cover.
3) Install the detector on the bracket.
- Wall mounting Wall mounting
Installation Instructions
Side view
Side view
Please do not install the detector
outdoor. (Indoor use only)
- Ceiling mounting Ceiling mounting
