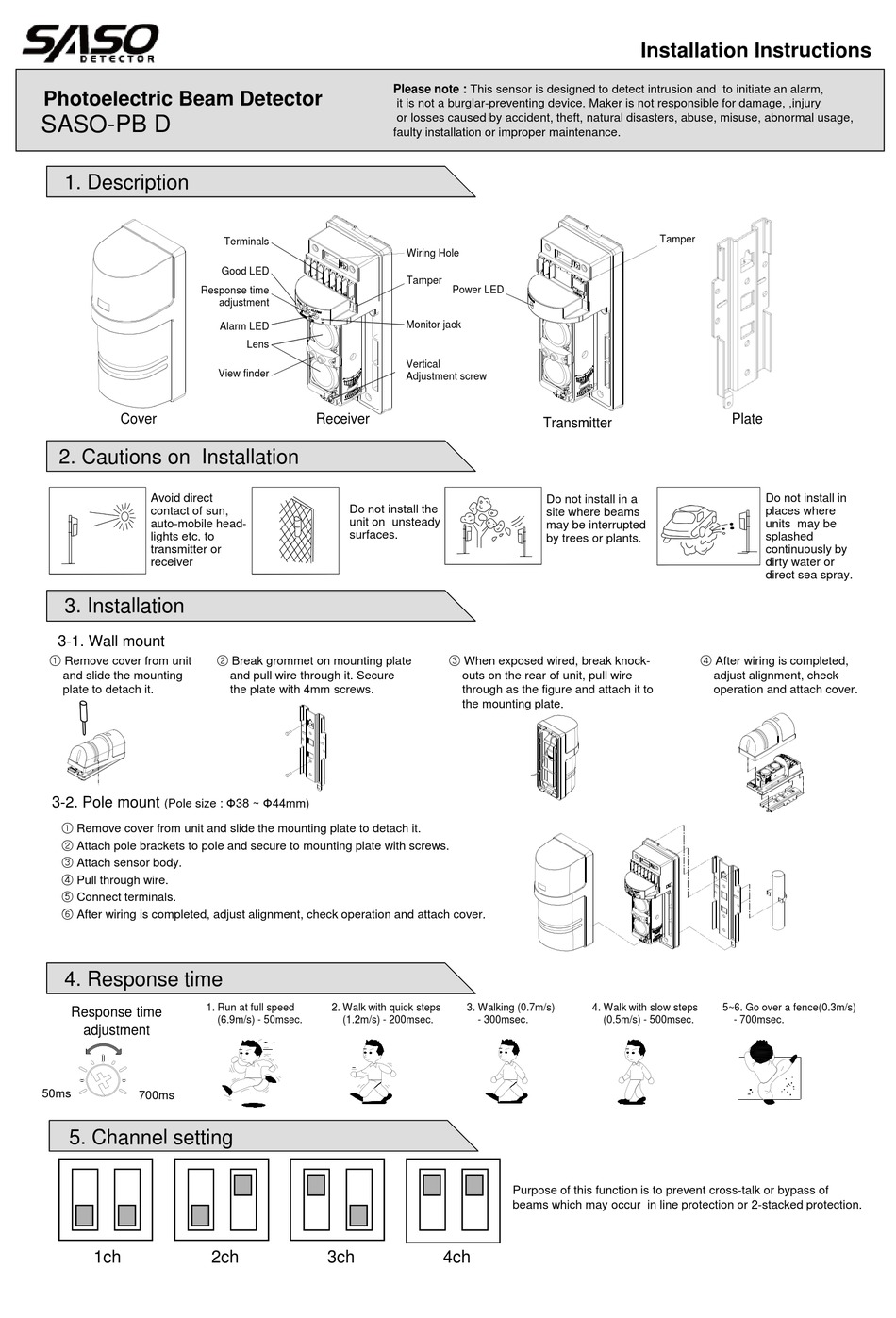

Saso -PB D Installation Instructions

Photoelectric Beam Detector
SASO-PB D
1. Description
Response time
Cover
2. Cautions on Installation
Avoid direct
contact of sun,
auto-mobile head-
lights etc. to
transmitter or
receiver
3. Installation
3-1. Wall mount
① Remove cover from unit
and slide the mounting
plate to detach it.
3-2. Pole mount (Pole size : Φ38 ~ Φ44mm)
① Remove cover from unit and slide the mounting plate to detach it.
② Attach pole brackets to pole and secure to mounting plate with screws.
③ Attach sensor body.
④ Pull through wire.
⑤ Connect terminals.
⑥ After wiring is completed, adjust alignment, check operation and attach cover.
4. Response time 4 Response time
1. Run at full speed
Response time
adjustment
50ms
700ms
5. Channel setting
1ch
Terminals
Good LED
adjustment
Alarm LED
Lens
View finder
Receiver
Do not install the
unit on unsteady
surfaces.
② Break grommet on mounting plate
and pull wire through it. Secure
the plate with 4mm screws.
2. Walk with quick steps
(6.9m/s) - 50msec. (1.2m/s) - 200msec.
2ch 3ch
Please note : This sensor is designed to detect intrusion and to initiate an alarm,
it is not a burglar-preventing device. Maker is not responsible for damage, ,injury
or losses caused by accident, theft, natural disasters, abuse, misuse, abnormal usage,
faulty installation or improper maintenance.
Wiring Hole
Tamper
Power LED
Monitor jack
Vertical
Adjustment screw
Transmitter
Do not install in a
site where beams
may be interrupted
by trees or plants.
③ When exposed wired, break knock-
outs on the rear of unit, pull wire
through as the figure and attach it to
the mounting plate.
3. Walking (0.7m/s)
- 300msec.
Purpose of this function is to prevent cross-talk or bypass of
beams which may occur in line protection or 2-stacked protection.
4ch
Installation Instructions
Tamper
Plate
④ After wiring is completed,
adjust alignment, check
operation and attach cover.
4. Walk with slow steps 5~6. Go over a fence(0.3m/s)
(0.5m/s) - 500msec. - 700msec.
Do not install in
places where
units may be
splashed
continuously by
dirty water or
direct sea spray.
