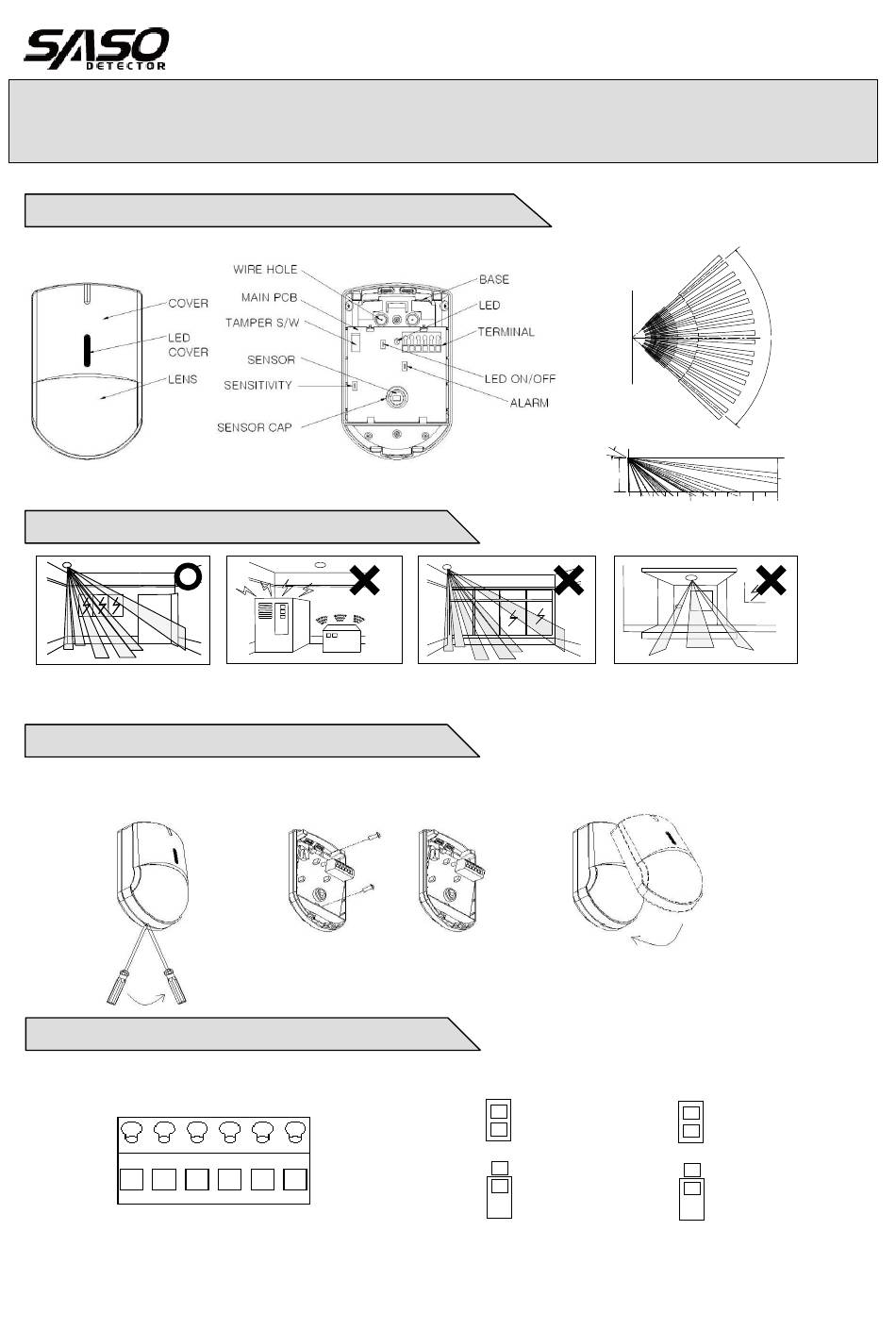

Saso PA-4510P Installation Instructions

Passive Infrared Detector
PA-4510P
1. Parts Description & Coverage and Range
2. Cautions on Installation
Please install the detector in the
desirable detection site.
3. Installation
1) Separate the cover
from body
4. Wiring
- TERMINAL
TAMPER ALARM
※CAUTION
Do not connect power to alarm terminal
Notice : This detector is designed to detect an intruder and to sound
alarm when detected; it is not to prevent burglary. We are not responsible
for damage or losses from accident, theft, natural calamity, misuse,
abnormal use, improper installation and bad maintenance.
Please avoid installing it where
electric noise and vibration is
prevalent.
2) Fix it where you
want to.
- +12V
Installation Instructions
- Protection Range
Please avoid direct sunlight to the
detector.
3) Connect wires correctly to 4) Close the body cover.
the plate of terminal.
.
- LED(ON/OFF)
ON
OFF
Top view
Side view
Avoid installing it at outdoor.
(indoor only)
- ALARM(CONTACT)
NC
NO
84˚
