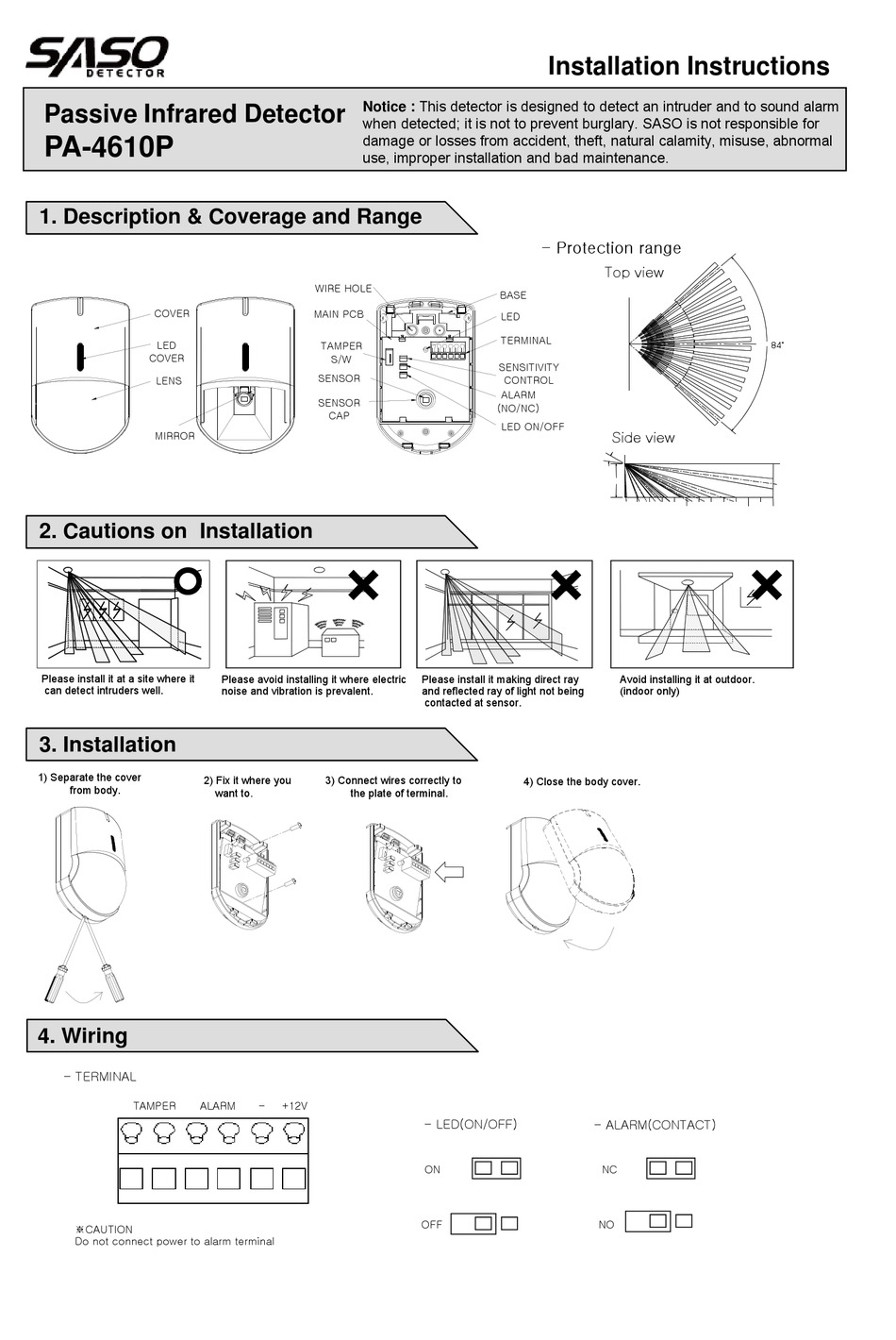

Saso PA-4610P Installation Instructions

Passive Infrared Detector
PA-4610P PA 4610P
1. Description & Coverage and Range
COVER
LED
COVER
LENS
MIRROR

2. Cautions on Installation

Please install it at a site where it
can detect intruders well.

3. Installation

1) Separate the cover
2) Fix it where you
from body.

4. Wiring

- TERMINAL
TAMPER ALARM
※CAUTION
Do not connect power to alarm terminal
Notice : This detector is designed to detect an intruder and to sound alarm
when detected; it is not to prevent burglary. SASO is not responsible for
damage or losses from accident, theft, natural calamity, misuse, abnormal damage or losses from accident, theft, natural calamity, misuse, abnormal
use, improper installation and bad maintenance.
WIRE HOLE
MAIN PCB
TAMPER
S/W
SENSOR
SENSOR
CAP
Please avoid installing it where electric
noise and vibration is prevalent.
3) Connect wires correctly to
want to. the plate of terminal.
- +12V
Installation Instructions
- Protection range
BASE
LED LED
TERMINAL
SENSITIVITY
CONTROL
ALARM
(NO/NC)
LED ON/OFF
Please install it making direct ray
and reflected ray of light not being
contacted at sensor.
4) Close the body cover.
- LED(ON/OFF)
ON
OFF
Top view
Side view
Avoid installing it at outdoor.
(indoor only)
- ALARM(CONTACT)
NC
NO
84˚
