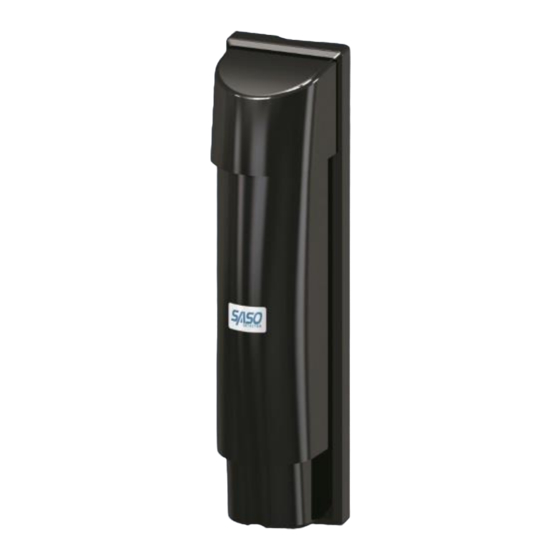

Digital, photoelectric beam detector

Advertisement

Quick Links

Digital, photoelectric beam detector
SASO-PB200L
We appreciate tour purchase of our photoelectric beam detector. This detector will provide long and dependable service when
properly installed. Please read this instruction manual carefully for correct and effective use.
1. Description --------------------------------------------------------------------------------------- P.2
2. Cautions on Installation ----------------------------------------------------------------------- P.2
3. Installation ---------------------------------------------------------------------------------------- P.3
4. Quad Synchronized Pulse Beams ---------------------------------------------------------- P.3
5. Response Time ---------------------------------------------------------------------------------- P.3
6. Range of Beam Coverage -------------------------------------------------------------------- P.4
7. Mounting Height --------------------------------------------------------------------------------- P.5
8. Optical Alignment ------------------------------------------------------------------------------- P.6
9. Channel Setting --------------------------------------------------------------------------------- P.7
10. Terminal Arrangement ------------------------------------------------------------------------- P.8
11. Environmental Disqualification Output ----------------------------------------------------- P.9
12. Alarm Memory Function ----------------------------------------------------------------------- P.9
13. Tone Indicator ------------------------------------------------------------------------------------ P.9
14. Beam Strength Selection ---------------------------------------------------------------------- P.10
15. Power Status Check ---------------------------------------------------------------------------- P.10
16. Quad Tamper------------------------------------------------------------------------------------- P.10
17. Anti Insects / Water Construction ------------------------------------------------------------ P.11
18. Troubleshooting ---------------------------------------------------------------------------------- P.11
19. Specifications ------------------------------------------------------------------------------------- P.12
20. External Dimensions----------------------------------------------------------------------------- P.12

■ TABLE OF CONTENTS ■

Instruction Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SASO-PB200L and is the answer not in the manual?

Questions and answers

Summary of Contents for Saso SASO-PB200L

  • Page 1: Table Of Contents

    Instruction Manual Digital, photoelectric beam detector SASO-PB200L We appreciate tour purchase of our photoelectric beam detector. This detector will provide long and dependable service when properly installed. Please read this instruction manual carefully for correct and effective use. ■ TABLE OF CONTENTS ■...
  • Page 2: Description

    1. Description L E N S V IE W F IN D E R G O O D L E D U P G O O D L E D L O W G O O D L E D T E R M IN A L A L A R M L E D P O W E R S T A T U S...
  • Page 3: Installation

    3. Installation 3-1. Wall mount ② Put the plate against wall and ③ Pull wires through the holes on ① Remove cover from unit ④ After wiring is completed, secure the plate with 4mm the rear as the figure, connect wires by unscrewing bolts adjust alignment, check screws.
  • Page 4: Response Time

    5~6. Climbing Wall (0.3m/s) 2. Quick Walk(1.2m/s) Adjustment - 50msec. - 300msec. - 500msec. - 700msec. - 200msec. 7 0 0 5 0 0 3 0 0 2 0 0 6. Range of Beam Coverage Detection Range L MODEL 100m SASO-PB200L 200m...
  • Page 5: Mounting Height

    7. Mounting Height • Heights of Installation Using pole brackets, install the detector at a height of 80~100cm from the ground for optimal detection of intruder. 80~100cm • Installation Examples Example 1 Example 2 Example 3...
  • Page 6: Optical Alignment

    8. Optical Alignment Read voltage from monitor jack with volt-meter(digital) to confirm optical alignment until the voltage reaches the highest level (3.5~4.0V). 1. Supply power with cover detached. Align Transmitter and Receiver to face each other using angle adjustment. Horizontal Vertical •...
  • Page 7: Channel Setting

    9. Channel Setting • Selectable 4 channels prevents mutual interference between sets, allowing multiple application of the beams. • Make sure to set the transmitter and receiver to the same channel. Setting T O N E IN D IC A T O R L O W / H IG H A L A R M M E M O R Y P O W E R C H E C K...
  • Page 8: Terminal Arrangement

    10. Terminal Arrangement S E N S IT IV IT Y C H E C K R E C E IV E R T R A N S M IT T E R M O N IT O R D C 9 .6 V ~ 3 0 V D C 9 .6 V ~ 3 0 V G O O D P O W E R...
  • Page 9: Environmental Disqualification Output

    11. Environmental Disqualification Output S E N S IT IV IT Y C H E C K R E C E IV E R M O N IT O R G O O D E N V IR O N M E N T D IS Q U A L IF IC A T IO N M O N IT O R O U T P U T V O L T A G E V O L T A G E G R E E N L E D...
  • Page 10: Beam Strength Selection

    14. Beam Strength Selection T R A N S M IT T E R • 2 Different beam strength can be selectable P O W E R based on desired detection distance. L O W / H IG H D C 1 0 V ~ 2 5 V P O W E R S T A T U S •...
  • Page 11: Troubleshooting

    17. Anti-Insect / Rain Construction Seal Seal (Wire Hole) Seal • Rubber sealing in base, wire holes, and (Wire Hole) bracket bolt holes prevents any penetration of dust, insects, and/or rain. Seal (Bracket Bolt Hole) 18. Troubleshooting Possible Solution Trouble Possible Cause Operation LED does not light 1.
  • Page 12: Specifications

    19. Specifications Model SASO-PB200L Detection system Simultaneous breaking of 2 beams Infrared beam Double modulation pulsed beams by LED Protection range Indoor or Outdoor 200m Supply voltage 9.6V ~ 30V DC (Polarity) Current TX : 45mA / RX : 40mA...
