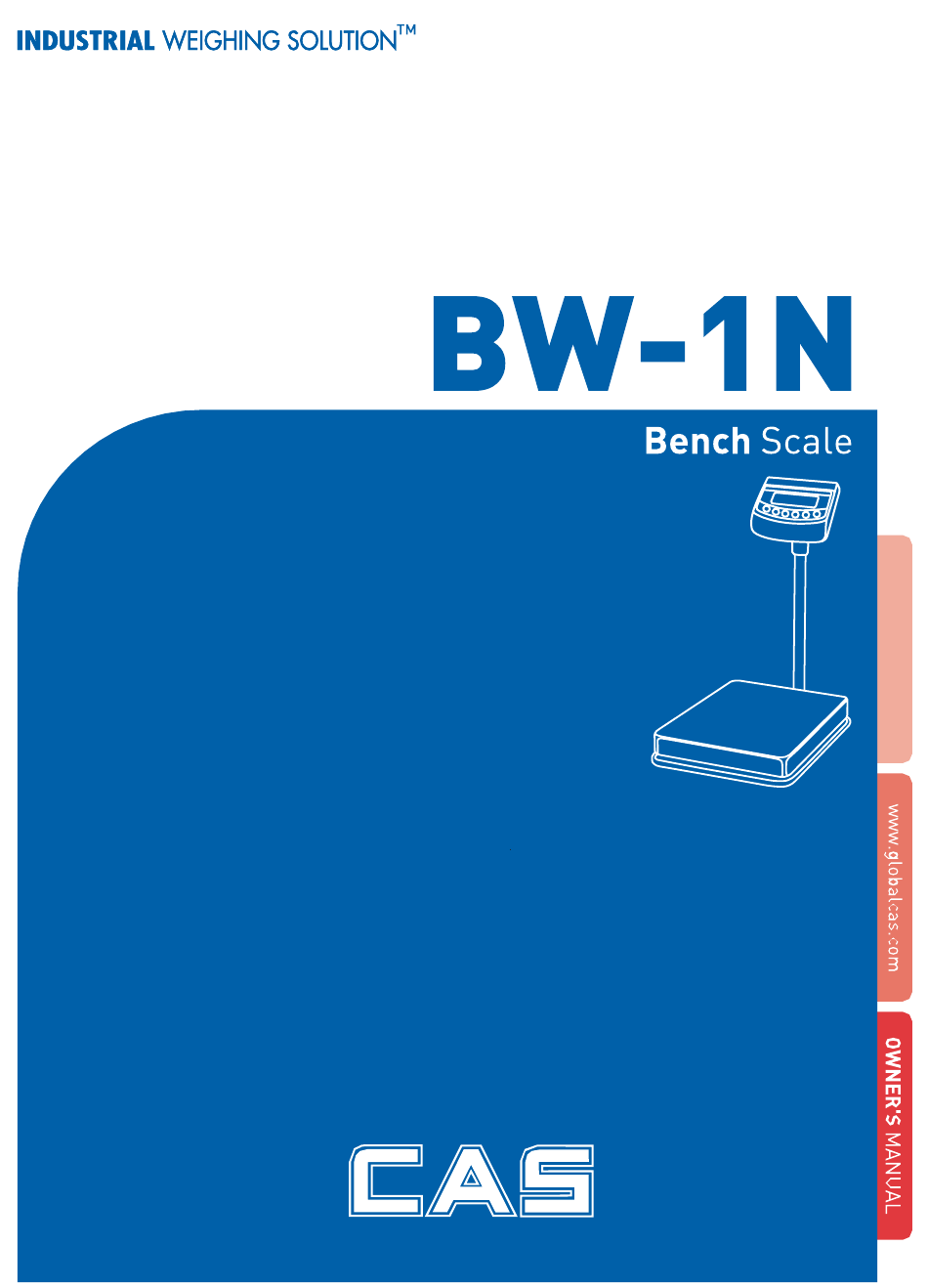

CAS BW-1N Owner's Manual

Bench scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BW-1N and is the answer not in the manual?

Questions and answers

Related Manuals for CAS BW-1N

Summary of Contents for CAS BW-1N

  • Page 2: Table Of Contents

    CONTENTS CAUTIONS..............4 INTRODUCTION............. 6 FEATURES & MAIN FUNCTIONS....6 SPECCIFICATION ..........7 PART NAME & KEY FUNCTION ...... 8 SYSTEM MODE ............11 GENERAL FUNCTION & DESCRIPTION ... 16 CONVERSION MODE ......... 18 PRINT FORMAT ............ 20 RS-232C COMMUNICATION......21 USING &...

  • Page 3: Cautions

    CAUTIONS...

  • Page 5: Introduction

    INTRODUCTION We greatly appreciate for you to purchase BW of CAS. This goods has the excellent performance and splendid properties through strict test under severe quality management. It is recommended to read this manual in full before using BW for good function application.

  • Page 6: Speccification

    SPECIFICATION BW-1N Model Item BW-6 BW-15 BW-30 BW-60 BW-150 Max Capacity 15kg 30kg 60kg 150kg Interval Platter Size 280(W) x 280(D) x 80(H) 405(W) x 525(D) x 105(H) Product Size 280(W) x 350(D) x 530(H) 425(W) x 675(D) x 755(H)

  • Page 7: Part Name & Key Function

    PART NAME & KEY FUNCTION 1. Part Name 2. DISPLAY...
  • Page 8 LAMP SYMBOL DESCRIPTION STABLE ON when current weight is stable ZERO ON when current weight is 0 ON at displaying the pure weight HOLD ON at weighing the moving object TARE ON when tare is activated. ON when current weight is more than high limit value. ON when current weight is right weight band.
  • Page 9 3. KEY Part SYMBOL DESCRIPTION ON / OFF Use to power ON / OFF (Press for approx 3 seconds) ZERO / Use in case of rezero (within 2% of max. capacity), MODE To enter the system mode by pressing for 2 seconds Use at weighing in use of TARE TARE Enter the TIME SETTING MODE by pressing for 2 seconds...

  • Page 10: System Mode

    SYSTEM MODE ■ Simple weight mode Display the weight after weighing. ■ High / Low comparing mode Determine that the weight is high, normal or low value and perform the display. ■ Count mode Display the quantity by setting the unit or sample weight. ■...
  • Page 11 Ex) For 20.5 input Display DESCRIPTION STEP 1 Press once (Set to “0” ) STEP 2 Press five times. STEP 3 Press once (Move to the left by one place) STEP 4 Press once STEP 5 Press twice times (input 2 as the 3th place value) STEP 6 Input completion 3.
  • Page 12 ■ In case of resetting the High / Low value Display PLATFORM DESCRIPTION STEP 1 Press twice STEP 1 Press once (Low weight input) STEP 1 INPUT Refer to 'Digit input' In page 11 STEP 1 High value input STEP 1 INPUT Refer to 'Digit input' In page 11 STEP 1...
  • Page 13 ■ In case of setting the unit weight by sample (Samples : 10 - 200 , 10 unit) Display PLATFORM DESCRIPTION STEP 1 Press three times STEP 2 Press once STEP 3 Press once STEP 4 Press once Press five times. STEP 5 Empty Simple count input(50pcs)
  • Page 14 6. COUNT COMPARING MODE CONVERSION ■ In case of no setting the High / Low quantity Display PLATFORM DESCRIPTION STEP 1 Press four times Press once. STEP 2 Generally operated ■ In case of setting the High / Low quantity Display PLATFORM DESCRIPTION...

  • Page 15: General Function & Description

    GENERAL FUNCTION & DESCRIPTION 1. REZERO FUNCTIOIN (Use at change zero point) ■ Rezero band range : Within 2% of Maximum capacity Zero point is changed. Press 'Zero' key. Zero lamp is ON. 2. TARE FUNCTIOIN (Use at weighing in use of TARE) ■...
  • Page 16 3. HOLD FUNCTIOIN (Use at weighing the moving object) ■ Auto hold function (Hold function operated whenever weighing) Empty the platform Press 'Hold' key 'Auto hold' Hold lamp is ON message is displayed for 1 sec. When the weight change is The weight is averaged for The hold weight is displayed.

  • Page 17: Conversion Mode

    CONVERSION MODE 1. ENTER method If you press the * key for three seconds to normal operation state, after display "SET" Message for one second and then enter. 2. KEY using Move to the next menu. Increase the set point. Return to the normal operation at completion of setting :[ENTER] key.
  • Page 18 ■ F – 2 : RS-232C communication setting Set point Meaning F – 2 No transmit F – 2 F – 2 Transmit at stable weight F – 2 Transmit at data request. (Data request signal “D”) F – 2 Use for print mode ■...

  • Page 19: Print Format

    Print Format Weight Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - < Format 1 > <...

  • Page 20: Rs-232C Communication

    RS-232C communication 1. Port connection method Connect the computer serial port with RS-232C port in the back panel of indicator as follows to communicate with computer ◆ - - - - - - - - - - - - - - - - - - - - (2)TXD ◆...
  • Page 21 3. Transmit data format Total 22 Bytes Data(8 bytes) SOH Lamp US (Unstable) GS(Gross W.) Status ST (Stable) NT(Net W.) Byte Weight OL (Overload) Unit ■ Lamp status byte : Display the current state (ON/OFF)of indicator lamp (Low Enable) Bit 7 Bit 6 Bit 5 Bit 4...

  • Page 22: Using & Battery

    BATTERY 1. Battery replacement or charging time ■ Power is off in a specific time after lamp is on in the right top of display part. The battery lamp is on when the amount of battery is about 6.9 V and power is off When the amount of battery is about 6.5V automatically.
  • Page 23 3. Rechargeable battery using and recharging ■ Open the top cover and make as follows in the left bottom of cover at using the rechargeable battery. ■ Open the jack protecting cap in the back panel and connect the adapter as follows. ■...

  • Page 24: How To Install The Bw

    HOW TO INSTALL THE BW 1. Open the box with care because indicator is connected to the scale with load cell wire. 2. Turn the post knob so as to fix indicator. 3. Pull down the wire out of post pipe and insert the post pipe to the post bracket.

  • Page 25: Test Mode

    TEST MODE How to enter test mode 1. Open the top cover of indicator and power on with pressing CAL switch in the left top. At that time, LCD screen shows “ZEro = tESt, tArE = CAL” message and pressing “Zero” key moves to tESt 1. 2.Press G/N key for approx 3 seconds.
  • Page 26 TEST 3 FUNCTION : Key test LCD SCREEN DESCRIPTION [ ENTER Key] Display TEST 3 state Press once : Test running Pressing the key to test shows One more time : the key code. Next menu Key name code Key name code ZERO TARE...
  • Page 27 TEST 5 FUNCTION : Temperature test LCD SCREEN DESCRIPTION [ ENTER Key] Display TEST 5 state Press once : for temperature Test running One more time : Next menu Current temperature is shown TEST 6 FUNCTION : Battery test LCD SCREEN DESCRIPTION Display TEST 6 state [ ENTER Key]...
  • Page 28 Current date & time setting method In the normal mode, Press the TARE Key long and can see the message After this step, You can input the current date and time as follows How to set the current date and time LCD SCREEN DESCRIPTION Date &...

  • Page 29: Error Message Description

    ERROR MESSAGE DESCRIPTION & MANAGEMENT Errors in Weighing Mode Err 01 ■ Cause The Indicator can't be initialized due to platform shaking. ■ Management Put the platform on a flat place without shaking and power on. Err 02 ■ Cause The load cell is connected wrongly or A/D conversion part has a fault.
  • Page 30 Err 13 (Zero Range with power on) ■ Cause The initial zero range exceeds above 10% of maximum capacity. ■ Management Check the load cell state. Over ■ Cause Too heavy object is put on platform so that it may exceed the maximum capacity. ■...
  • Page 31 MEMO...
  • Page 32 MEMO...
  • Page 33 MEMO...
