X-Scan LED™
5-Pin XLR DMX Connectors.
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
fixtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
American DJ - www.americandj.com - X-Scan LED™ Instruction Manual Page 7
®
Some manufactures use 5-pin DMX-
5-Pin XLR Male (In)
Pin 1 Pin 1
Pin 2 Pin 2
Pin 3 Pin 3
Pin 4 - Do Not Use
Pin 5 - Do Not Use
Set Up X-Scan LED™
American DJ - www.americandj.com - X-Scan LED™ Instruction Manual Page 8
®

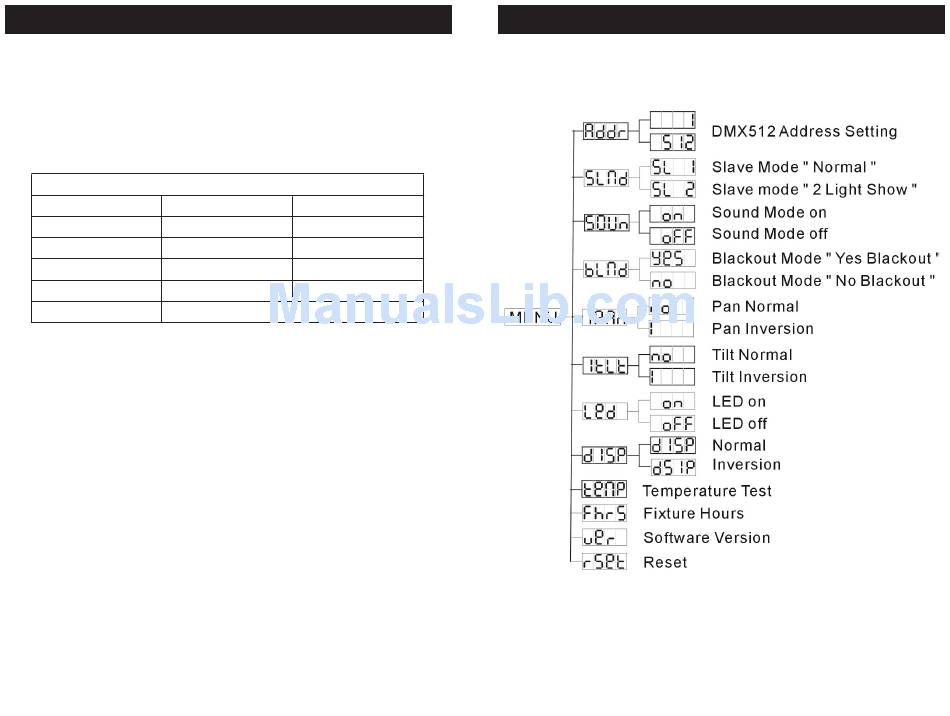

System Menu Chart
