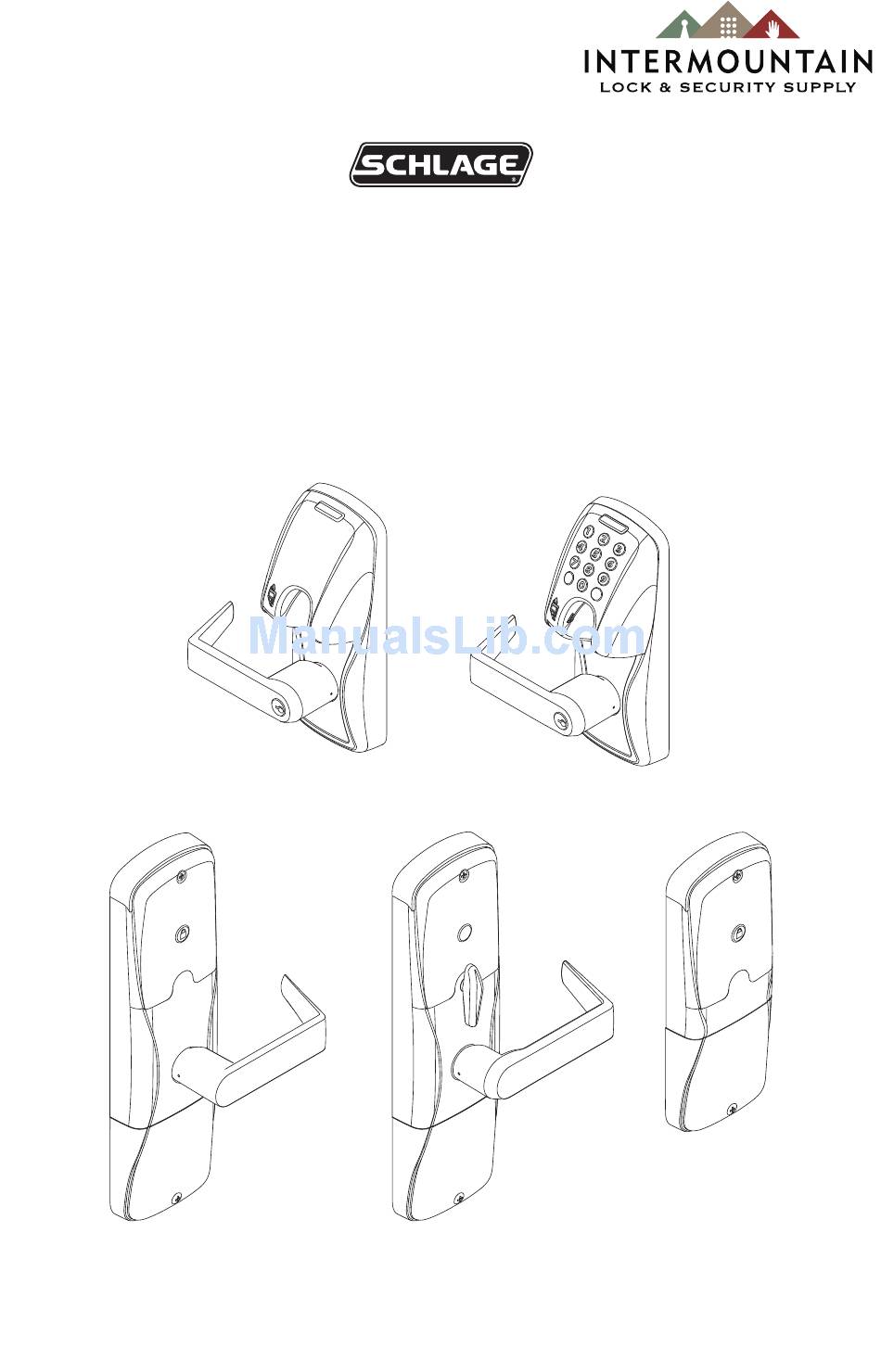

P516-130
AD-250
OFFLINE LOCK USER GUIDE
INSTRUCTIONS FOR PROGRAMMING ADAPTABLE SERIES OFFLINE LOCKS
Para el idioma español, navegue hacia www.schlage.com/support.
Pour la portion française, veuillez consulter le site www.schlage.com/support.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-250 and is the answer not in the manual?

Questions and answers

Related Manuals for Schlage AD-250

Summary of Contents for Schlage AD-250

  • Page 1 P516-130 AD-250 OFFLINE LOCK USER GUIDE INSTRUCTIONS FOR PROGRAMMING ADAPTABLE SERIES OFFLINE LOCKS Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.

  • Page 2: Table Of Contents

    Troubleshooting ..........................8 OVERVIEW The Schlage AD-250 is an off-line electronic lock in the AD-Series product line. • May be powered by batteries or connected to external power using a UL 294 Listed power supply capable of sourcing at least 250 mA @ 12 to 24 VDC. See Batteries on page 7, or External Power Supply on page 6 for more information.

  • Page 3: Getting Started

    4. Test the lock for proper mechanical and electronic operation. See Testing on page 4 for more information. 5. Consult the Schlage Utility Software User Guide for information about configuring the lock. 6. Familiarize yourself with the information contained in this user guide.

  • Page 4: Handheld Device (Hhd)

    2. For locks with a card reader, present a user credential to the reader. The lock will beep and the Schlage button will light green. The Schlage button will blink red twice when the credential is not valid for the lock.

  • Page 5: Construction Access Mode

    PIN of 13579, which can be used for installation, testing and construction access. To test, enter default PIN. The Schlage button will blink and the lock will unlock. The default PIN is automatically deleted when a new programming credential is created, or the lock is programmed with...

  • Page 6: Resetting To Factory Defaults

    4. Press and release the inside push button (IPB) three (3) times within 10 seconds. One beep will sound and one red blink will occur with each press. 5. The Schlage button and IPB will both light green for one second and a one-second beep will be heard. This indicates that the lock has been reset.

  • Page 7: Batteries

    Valid credentials do not grant access Mechanical override key must be used to unlock lock Battery Failure Modes ÎThe battery failure is set using the Handheld Device. See the Schlage Utility Software User Guide for more information. Mode Description Fail As-Is (default) Lock remains in current state until batteries are replaced.

  • Page 8: Led Reference

    LED REFERENCE Most LED and beep indicators are configured using the HHD. See the Schlage Utility Software User Guide for more information. Schlage Button Condition Lights Access denied 2 red blinks Access denied, user outside time zone 4 red blinks...
