Summary of Contents for Schlage Ascent

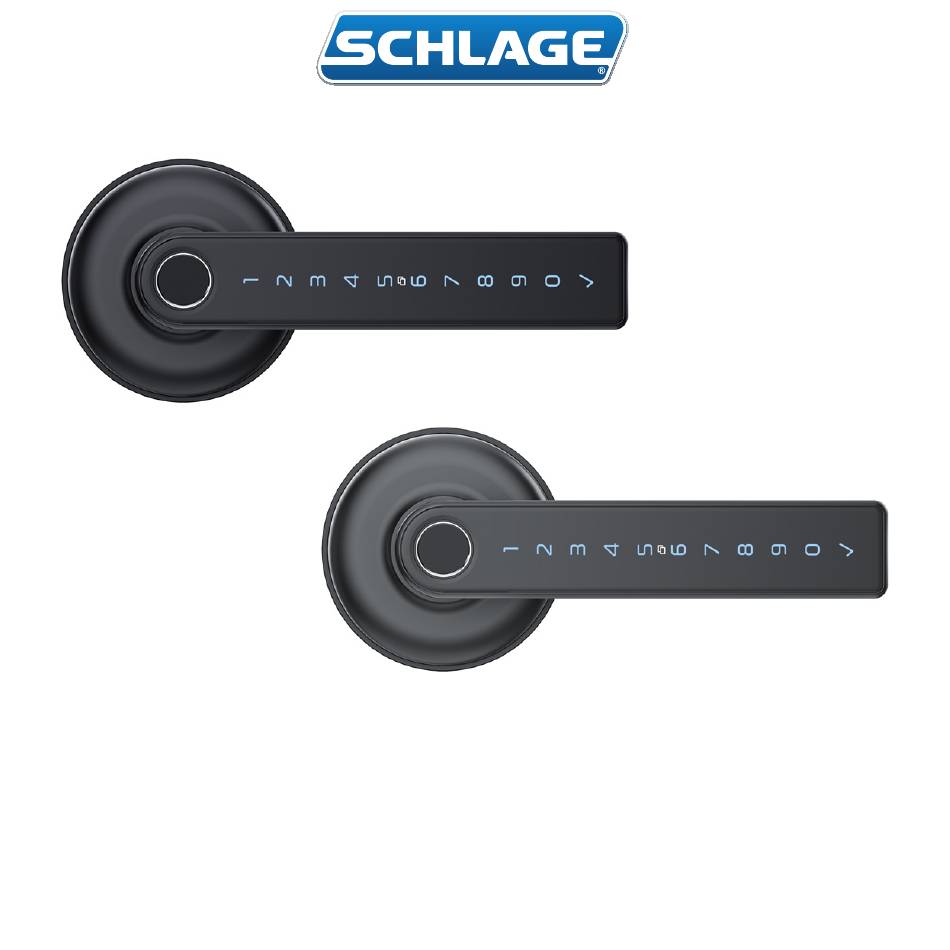

- Page 1 Ascent Schlage SMART LEVER (Internal use only) Quick Start Guide...
- Page 2 10. Hex tool for battery compartment 2. A. Internal lever 6. 2x Screw standoffs (M4) 11. Reset pin B. Rubber gasket 7. 2x Mounting screws (M4x30mm) 12. 3x Key tags 3. 4x AAA alkaline batteries 2x Mounting screws (M4x45mm) For more information visit schlage.co.nz/ascent...
-
Page 3: Installation
Fixing pack Door thickness Mounting screws Installation fixings Deadlatch fixings 32mm - 40mm 2x M4x30mm CSK screws 2x M4x30mm Screw standoffs 4x M4x20mm CSK screws for 2x M4 Screw covers wooden door 1x Screw cover for battery compartment screw 4x M3.9x16mm CSK screws 1x Reset pin for aluminium door 41mm - 55mm... - Page 4 B. Adjust strike anti-rattle tab to between 32mm Fit here on door edge achieve a firmly held and sealed and 55mm. door. 4.0 mm B. Follow the Schlage Ø25mm Ascent smart 90mm Deep lever template to LATCH HEIGHT prepare your door.
- Page 5 4. Install levers cont. 5. Install batteries D. Position the external lever to the A. Install 4x AAA batteries, replace the battery outside of your door, aligning the cover and tighten battery cover screw. spindle, standoffs, and cable with the B.
- Page 6 (or login if you have an existing account). PIN codes 2. Ensure Bluetooth is enabled on your phone, tap the keypad of your Schlage Ascent smart lever The Schlage Ascent allows you to store up to to activate it. 150 PIN codes - either custom, permanent, recurring or scheduled.
- Page 7 Auto locking user, select History. This provides Sarah The Schlage Ascent smart lever default is set with information on your users, Rachel a 5 second auto lock, this can be changed in the...
-
Page 8: Hardware Specifications
Fingerprint access IMPORTANT: The Schlage Ascent smart lever allows you to store Note for homeowner up to 150 fingerprints. Manual factory reset To set up your fingerprint access, select Grant Access, Add Fingerprint, ensure you name your If your lock was installed by someone other than fingerprint and complete set up. - Page 9 • Always press the key after Emergency power entering your PIN code. If your Schlage Ascent smart lever is locked and you require emergency battery power, located on the bottom of the external lock body is a USB-C port.
-
Page 10: Warranty Conditions
Empower your Schlage Ascent smart lever with Wi-Fi and electronic warranty. capability. The Schlage Wi-Fi Bridge (BZ100) pairs to your Schlage Ascent smart lever, to provide you with a Our goods come with guarantees that cannot be real-time connection through your smartphone. - Page 12 For more information visit schlage.co.nz/ascent Australia New Zealand 1800 098 094 0800 477 869 info.au@allegion.com nzinfo@allegion.com www.allegion.com.au www.allegion.co.nz © 2024 Allegion...
