P516-128
AD-300
NETWORKED HARDWIRED LOCK USER GUIDE
INSTRUCTIONS FOR ADAPTABLE SERIES NETWORKED HARDWIRED LOCKS
Para el idioma español, navegue hacia www.schlage.com/support.
Pour la portion française, veuillez consulter le site www.schlage.com/support.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schlage AD-300

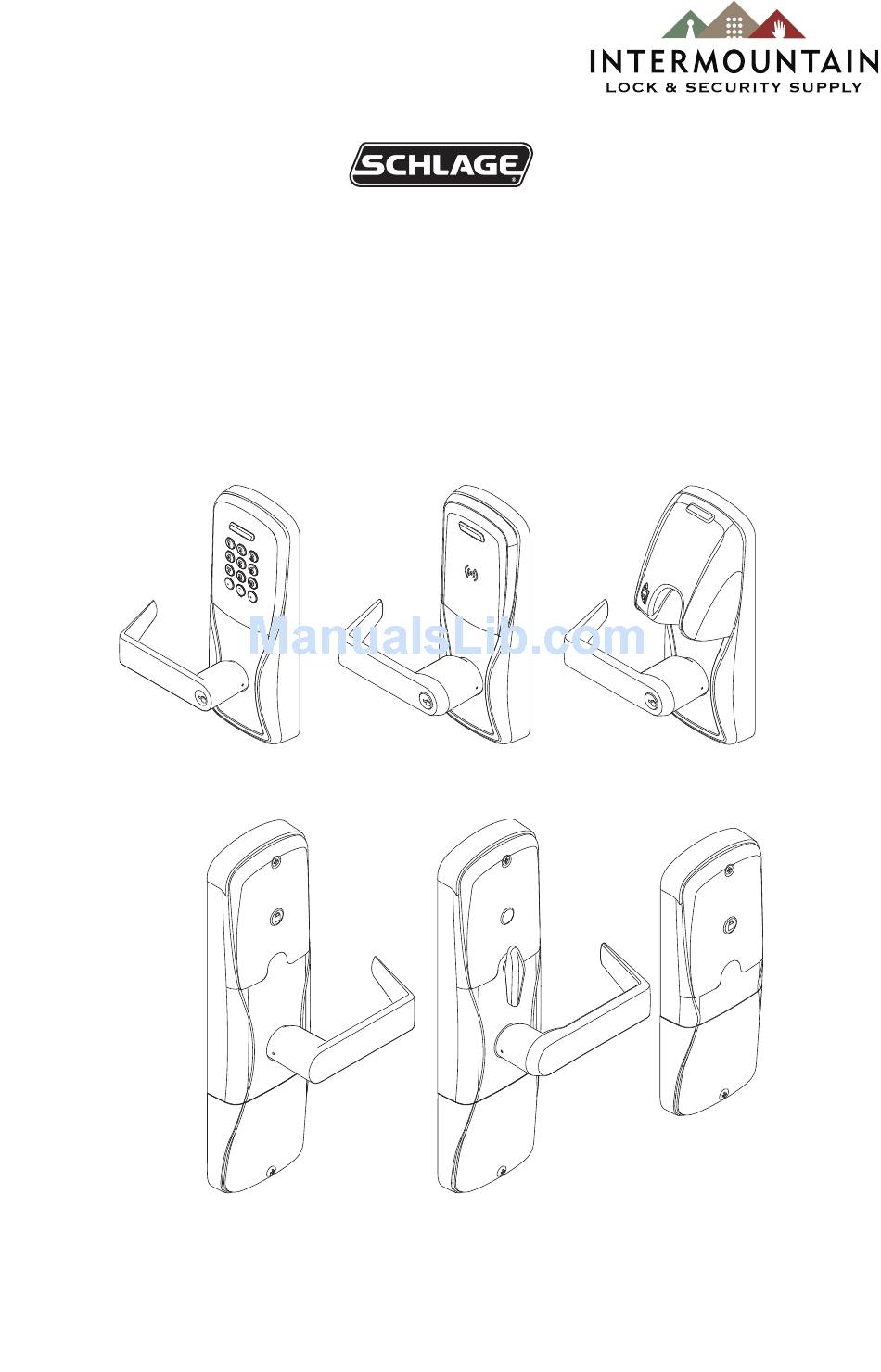

  • Page 1 P516-128 AD-300 NETWORKED HARDWIRED LOCK USER GUIDE INSTRUCTIONS FOR ADAPTABLE SERIES NETWORKED HARDWIRED LOCKS Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.
  • Page 2: Table Of Contents

    AD-300 Networked Hardwired Lock User Guide CONTENTS Overview ............................3 Getting Started ..........................4 Handheld Device (HHD) ........................ 4 Optional Inside Push Button (IPB) ....................4 User Management ......................... 4 Construction Access Mode ......................5 Create the Master Construction Credential - Locks with Card Readers ........5 Add User Credentials - Locks with Card Readers ..............
  • Page 3: Overview

    The Schlage AD-300 is an open architecture product designed to interface with Schlage brand access control panels as well as all other third party panels which use the Schlage RSI RS-485 protocol. When using a third party panel that does not use the Schlage RSI RS-485 protocol, the addition of a PIB300 is required.
  • Page 4: Getting Started

    The Handheld Device is used for programming and setup only. The Handheld Device (HHD) is used to configure locks. This includes transferring data files between the access control software and locks. For information about the HHD, see the Schlage Utility Software User Guide.
  • Page 5: Construction Access Mode

    Cancel Construction Access Mode Do one of the following: • Authenticate or program the lock with the Handheld Device. See the Schlage Utility Software User Guide for more information. • Reset the lock to factory settings. See Resetting to Factory Default Settings on page 9 for more information.
  • Page 6: Connecting To An Access Control Panel

    AD-300 Networked Hardwired Lock User Guide CONNECTING TO AN ACCESS CONTROL PANEL • The two data wires from the panel (Data-A(-) and Data-B(+)) must be a shielded twisted pair. • In case of power outage, the lock will enter the configured power failure mode. See Power Failure on page 10 for more information.
  • Page 7 AD-300 Networked Hardwired Lock User Guide 2 Wire, Half Duplex 18 AWG, 1000 feet Power Supply max. run length VIN(PWR) UL 294 Certified 250mA TDB+ @12 or 24 V DC RDB+ DO NOT attach power TDA- to A/B data terminals...
  • Page 8: Lock Address Setup

    3. Create a request-to-exit condition by holding down the inside lever or crash bar. ÎContinue to hold the lever or crash bar throughout step 5. 4. Press and release the Schlage button on the lock. Wait for the Schlage button to flash green. The lock address is now set to zero (0).
  • Page 9: Resetting To Factory Default Settings

    4. Press and release the inside push button (IPB) three (3) times within 10 seconds. One beep will sound and one red blink will occur with each press. 5. The Schlage button and IPB will both light green for one second and a one-second beep will be heard. This indicates that the lock has been reset.
  • Page 10: Led And Beep Reference

    AD-300 Networked Hardwired Lock User Guide LED AND BEEP REFERENCE Most LED and beep indicators are configured using the HHD. See the Schlage Utility Software User Guide for more information. Schlage Button Action Lights Beeps Extended (Toggle) unlock 2 Green...
  • Page 11 AD-300 Networked Hardwired Lock User Guide...
  • Page 12 © 2010 Ingersoll-Rand Company P516-128 ENG online Rev. 02/10-b1...
