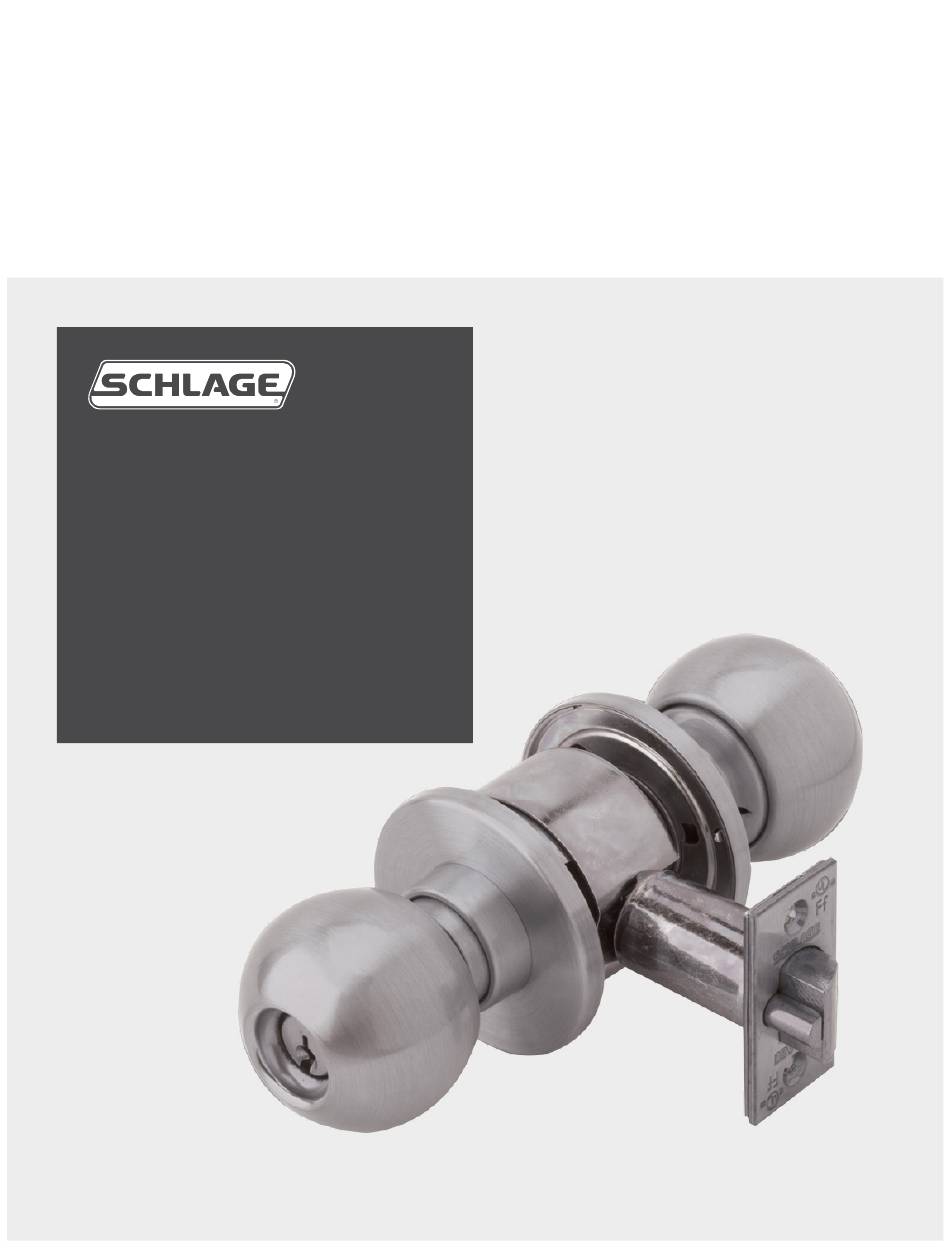

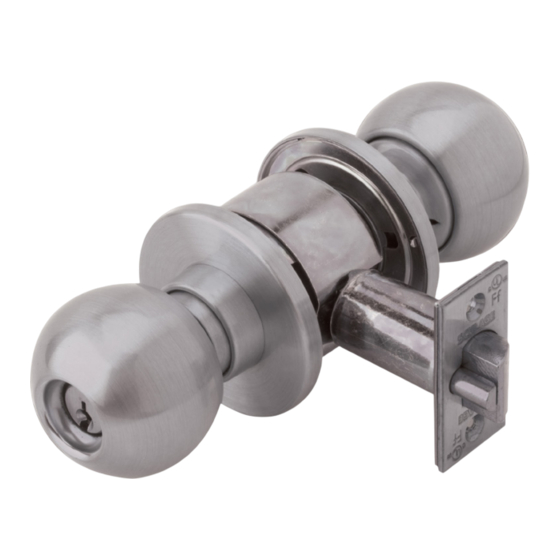

- Page 1 A-Series Service manual...
-
Page 2: Table Of Contents
Contents Introduction 19 Parts and Accessories 20 Knob and Lever Designs Lock Assembly Drawing Index Latches Strikes Chassis and Assemblies Finishes Passage Lock 24 Cylinder Units and Parts Exit Lock 26 Interchangeable Cores, Designs, and Parts Patio Lock 28 Lubrication Bath/Bedroom Privacy Lock 28 Installation Tools and Kits Communicating Lock... -
Page 3: Introduction
This manual contains a complete listing of A-Series (Grade 2) cylindrical lock parts and assemblies manufactured by the Schlage Lock Company. This manual lists components of A-Series locks manufactured after 1984. Exploded views of each lock chassis and trim assemblies are provided with an accompanying chart to identify parts for replacement purposes. - Page 4 A170 Single Dummy Dummy trim for one side of the door. Used fo door pull or as matching inactive trim. Keyed functions available with full size interchangeable core option for Orbit design. 6 • Schlage • A-Series service manual...
-
Page 5: Chassis And Assemblies
Chassis and Assemblies Passage Lock Exit Lock Patio Lock Bath/Bedroom Privacy Lock Communicating Lock Entrance Lock Classroom Lock Communicating Lock Storeroom Lock Faculty/Restroom Lock Dummy Trim... -
Page 6: Passage Lock
Screw, Mtg. 2 -2 " door Plate, Inside A501-305 Specify finish Specify design and finish Plate, Outside A508-399 Note: Parts for doors 2 - 2 " thick are for doors extended inside (EI) Frame A508-598 only. 8 • Schlage • A-Series service manual... -
Page 7: Exit Lock
Hub, 1 " door A501-499 Hub, 1 " door Specify design and finish Plate, Outside A501-874 Note: Parts for doors 2 - 2 " thick are for doors extended Frame A508-598 inside (EI) only. Schlage • A-Series service manual • 9... -
Page 8: Patio Lock
Housing Threaded, 1 " door Specify design and finish Specify dimension and finish Plate, Inside A501-305 Note: Parts for doors 2 - 2 " thick are for doors extended inside (EI) Plate, Outside A508-399 only. 10 • Schlage • A-Series service manual... -
Page 9: Bath/Bedroom Privacy Lock
Specify dimension and finish Screw, Mtg. 1 " door Note: Parts for doors 2 - 2 " thick are for doors extended inside (EI) A501-818 Screw, Mtg. 2 - 2 " door only. Schlage • A-Series service manual • 11... -
Page 10: Communicating Lock
Specify design and finish Specify dimension and finish Spring Slide, Knob & Lever A508-605 Note: Parts for doors 2 - 2 " thick are for doors extended inside (EI) Stop Slide A508-641 only. 12 • Schlage • A-Series service manual... -
Page 11: Entrance Lock
A301-405* Specify dimension and finish Housing & Cap, 2 " door Note: Parts for doors 2 - 2 " thick are for doors extended inside (EI) A301-406* Housing Threaded, 1 " door only. Schlage • A-Series service manual • 13... -
Page 12: Classroom Lock
Specify finish Specify design and finish A501-818 Screw, Mtg. 2 - 2 " door Note: Parts for doors 2 - 2 " thick are for doors extended inside (EI) Plate, Inside A501-305 only. 14 • Schlage • A-Series service manual... -
Page 13: Communicating Lock
Specify design and finish Screw, Mtg. 1 " door Note: Parts for doors 2 - 2 " thick are for doors extended inside (EI) A501-770 Screw, Mtg. 2 - 2 " door only. Schlage • A-Series service manual • 15... -
Page 14: Storeroom Lock
Housing & Cap, 2 - 2 " door Spring Slide, Knob and Lever A508-605 A301-405 Housing & Cap, 2 " door Slide, Non-restoring A590-159 A301-406 Housing, Threaded, 1 " door Cotter Pin C503-008 16 • Schlage • A-Series service manual... -
Page 15: Faculty/Restroom Lock
" thick are for doors extended inside (EI) A501-818 Screw, Mtg. 2 - 2 " door only. Faculty/Restroom function locks are funished 0-bitted with two 6-pin key unless otherwise specified. Emergency keys must Plate, Inside A501-305 be ordered separately. Schlage • A-Series service manual • 17... -
Page 16: Dummy Trim
Non-Threaded Chassis, Less Knob and Rose A201-330 Screws, Mtg. C603-897 Specify finish Specify design and finish Specify dimension and finish Note: Parts for doors 2 - 2 " thick are for doors extended inside (EI) only. 18 • Schlage • A-Series service manual... -
Page 17: Parts And Accessories
Parts and Accessories 20 Knob and Lever Designs Latches Strikes Finishes 24 Cylinder Units and Parts 26 Interchangeable Cores, Designs, and Parts 28 Lubrication 28 Installation Tools and Kits 29 Long Backsets 29 Reinforcement Kit 30 Keying... -
Page 18: Knob And Lever Designs
606, 609, 610, 611, 612, 613, 616, 625, 626 Plymouth (PLY) Tulip (TUL) Available Finishes: 605, 606, Available Finishes: 605, 609, 610 611, 612, 613, 616, 606, 609, 610, 625, 626 625, 626, 629, 630 20 • Schlage • A-Series service manual... -
Page 19: Latches
Square corner, 1 " x 2 " Rabbeted latch and strike kit 39-030* — This kit adapts square corner latch and 2 " high square corner strike to " rabbeted door and frame preparations. Schlage • A-Series service manual • 21... -
Page 20: Strikes
(4) Latch and Strike Screws, #8-32 x " (T-15) C203-312 (2) Latch Screws, #8-32 x " (T-15) (2) ANSI Strike Screws, #12-24 x " (T-20) Torx tools Part No. Description M504-425 T-15 Torx Tool M504-426 T-20 Torx Tool 22 • Schlage • A-Series service manual... -
Page 21: Finishes
Parts and Accessories Finishes Schlage Lock finishes are durable, top quality finishes obtained by the careful processing of solid brass, bronze, stainless steel, or other materials. When required, a protective clear coating is applied and cured under high temperature. It is important that climatic conditions and usage be taken under consideration when selecting finishes. -
Page 22: Cylinder Units And Parts
Parts and Accessories Cylinder Units and Parts Schlage locks are provided with cylinder units precision built to extremely close tolerances and the highest standards of accuracy. Phosphor bronze springs, nickel silver keys, and pins are used throughout the Schlage offering. The best combination of materials is used to ensure the manufacture of cylinders with ease of operation and long wear. - Page 23 Indicator pin spring for 21-003 C604-369 Indicator pin spring, Everest C604-368 Indicator pin, Everest C604-371 Indicator pin for 21-003 XA10-594 5 Pin cylinder extension to fit 6 pin knobs (Requires A508-614 bar & driver) Schlage • A-Series service manual • 25...
-
Page 24: Interchangeable Cores, Designs, And Parts
Everest Primus Interchangeable Core w/o Logo 20-740 Primus interchangeable core w/ logo 20-741 Primus interchangeable core w/o logo 23-030 Interchangeable core w/ logo 23-031 Interchangeable core w/o logo A501-941 Retainer C604-307 Driver M504-413 Installation tool 26 • Schlage • A-Series service manual... - Page 25 Control pin Parts not compatible with cores manufactured before 1991. Important: Use only graphite or similar material for cylinder lubrication. Under no circumstance should any other type of material be introduced into the cylinder. Schlage • A-Series service manual • 27...
-
Page 26: Lubrication
" x 2 " Latch Chisel A and D-Series locks. 40-175 1" Bit 40-178 Quick Change Bit Adapter 40-179 1" Strike Locator 40-029 Full Lip Strike Chisel 40-031 " x 2 " Latch Chisel 28 • Schlage • A-Series service manual... -
Page 27: Long Backsets
2 ³⁄₈” Backset Latch G506-815 Sleeve Reinforcement Kit The Schlage 37-001 reinforcement kit is to reinforce and help prevent 37-001 the collapse of hollow metal doors when locksets are tightly Reinforcement Kit mounted. This kit should be used with long backsets for installations in hollow metal doors to prevent lateral movement of latch bolt. -
Page 28: Keying
Pin Tumbler Keys All Schlage locks come with two nickel silver keys as standard, embossed with our company logo. The nickel silver alloy from which all Schlage keys are made provides the base for accuracy in cutting and long cylinder wear. Schlage will stamp "DO NOT DUPLICATE"...
