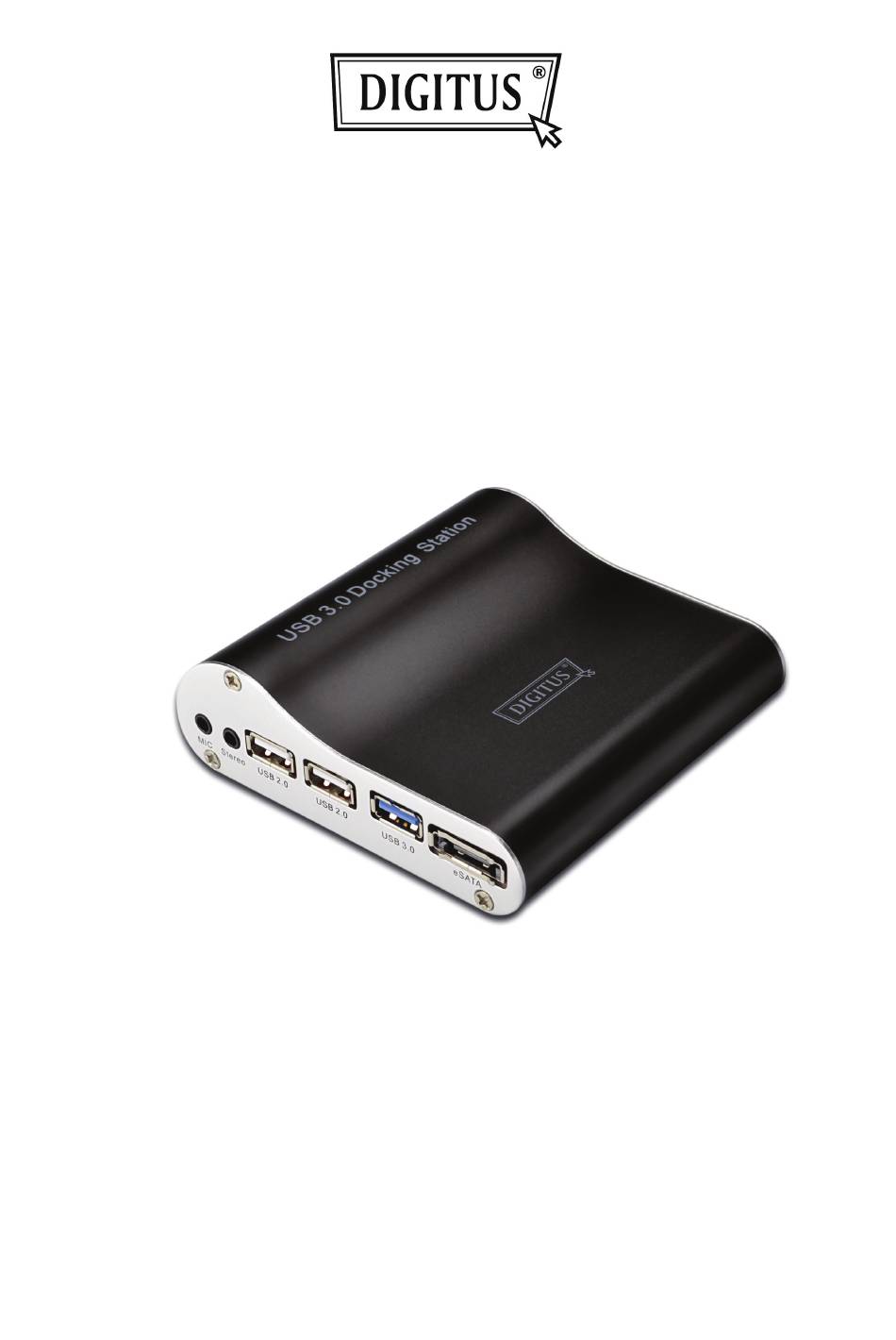

Page 1: Docking Station

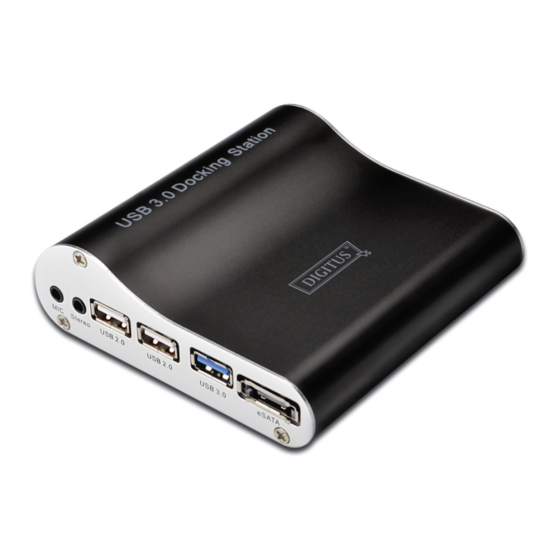

USB 3.0 DOCKING STATION Quick Installation Guide DA-70590... - Page 2 1. Check if your package includes all of the following: one main unit, one CD driver, one power adapter (5V 2A), one user manual, one quick installation guide, and one 1M USB 3.0AM to Micro USB cable Panel description: Micro USB 3.0 Connect this port to the USB 3.0 port of computer using the provided Micro USB 3.0 cable HDMI Out...
- Page 3 Out LED Indicates the status of the HDMI output Ethernet Connect this port to Ethernet router or Hub Power LED Indicates power status DC/5V Connect this jack to 5V/2A power adapter Connect this port to Microphone device Stereo Connect this port to earphone device USB 2.0 Connect this port to USB 2.0 device, such as Keyboard, mouse, USB flash drive...
- Page 4 2. Put the CD driver in your CD-ROM devices, Reset Computer. Connect Micro USB 3.0 female of the docking station to USB 3.0 port of computer using one provided cable. Connect HDMI port to HDTV using one HDMI cable. Connect Ethernet port to Ethernet or HUB. Connect MIC, Stereo, USB 2.0/3.0, eSATA ports to computer peripheral devices 3.
