Playback Controls

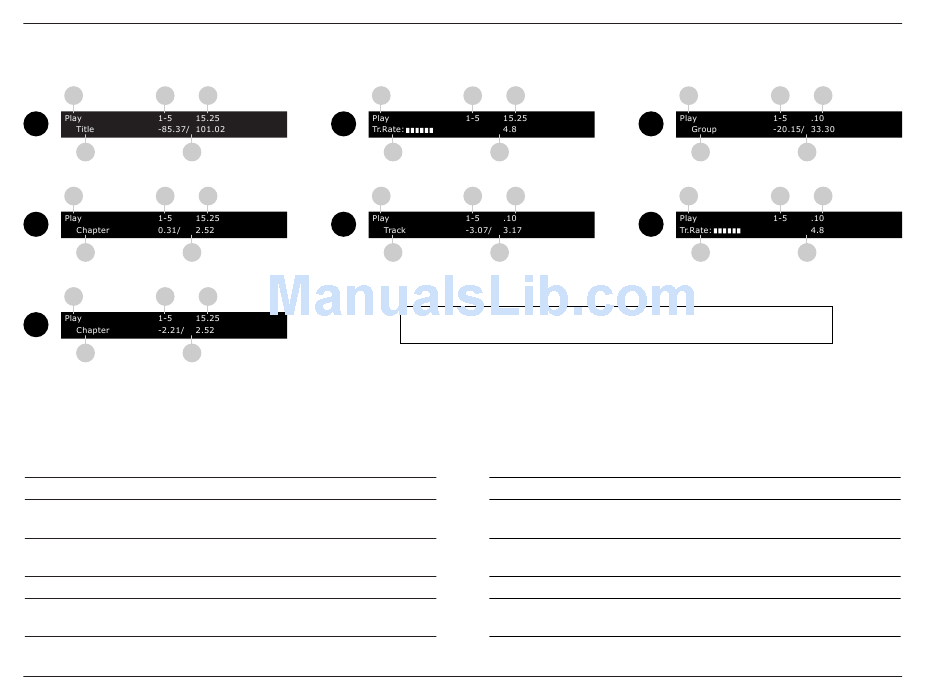

Display Bars
1 2
A
4 5
1 2
B
4 5
1 2
C
4 5
Display Bar A
No. Description
1 Indicates whether playback or pause mode is activated.
2 Indicates the numbers of the currently playing title and
chapter.
3 Indicates the elapsed playback time of the currently
playing title (minutes.seconds).
4 Indicates the display bar format.
5 Indicates the remaining and total playback time of the
loaded disc.
4-32
3 1
D
3 1
E
3
2 3
4 5
2 3
4 5
The letters and numbers in the display bar illustrations shown here and at the top of the
next page correspond to the numbered items in the tables that begin below.
Display Bar B
DVD-V
No. Description
1 Indicates whether playback or pause mode is activated.
2 Indicates the numbers of the currently playing title and
chapter.
3 Indicates the elapsed playback time of the currently
playing title (minutes.seconds).
4 Indicates the display bar format.
5 Indicates the elapsed and total playback time of the
currently playing chapter.
1 2 3
F
4 5
1 2 3
G
4 5
